Body Control System Schematics
›
Notes
Body Control System Schematics: Notes

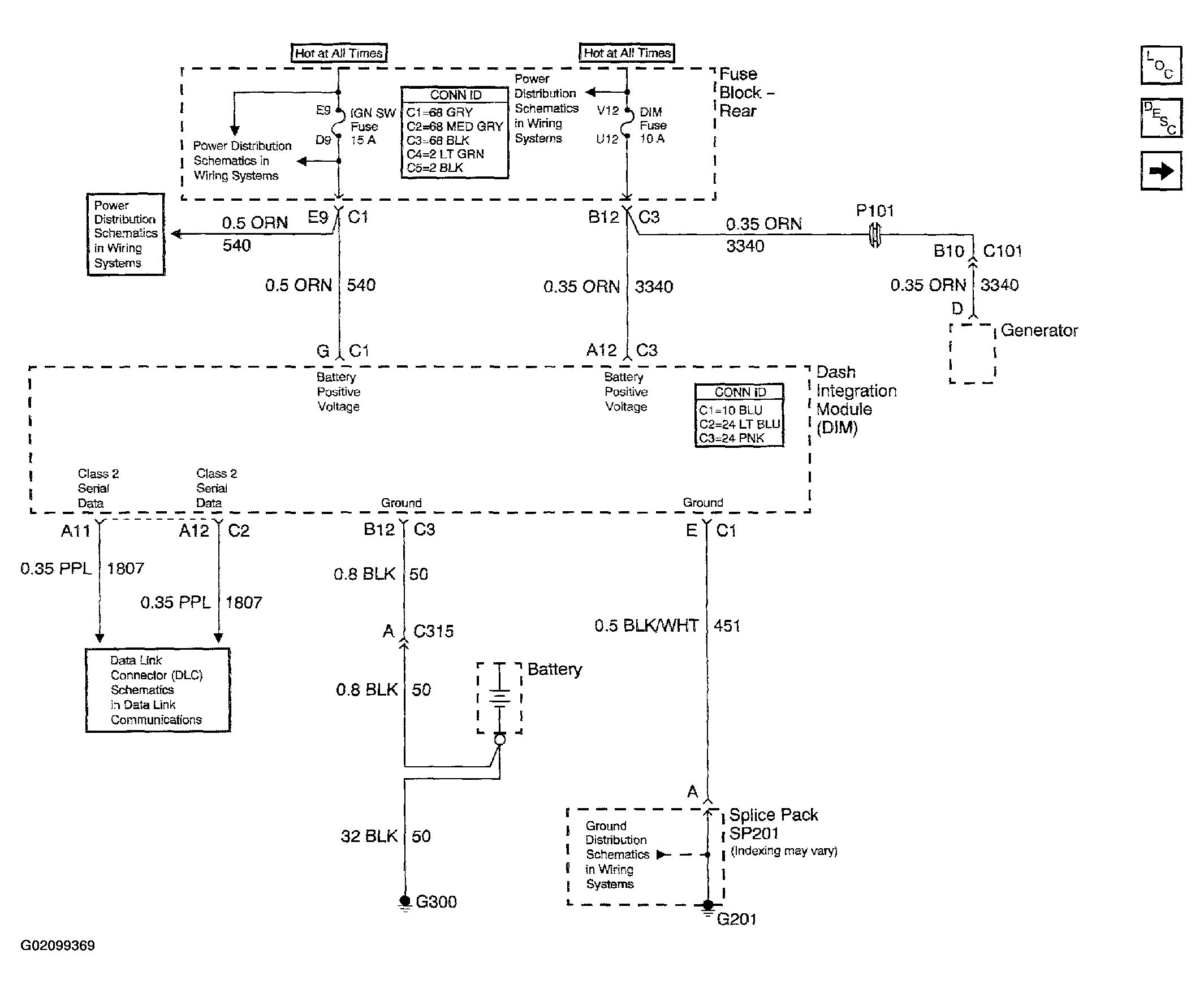

Fig 1: Body Control System Schematics - Dash Integration Module - Power, Ground And Serial Data
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
