Cellular Communication Component Views

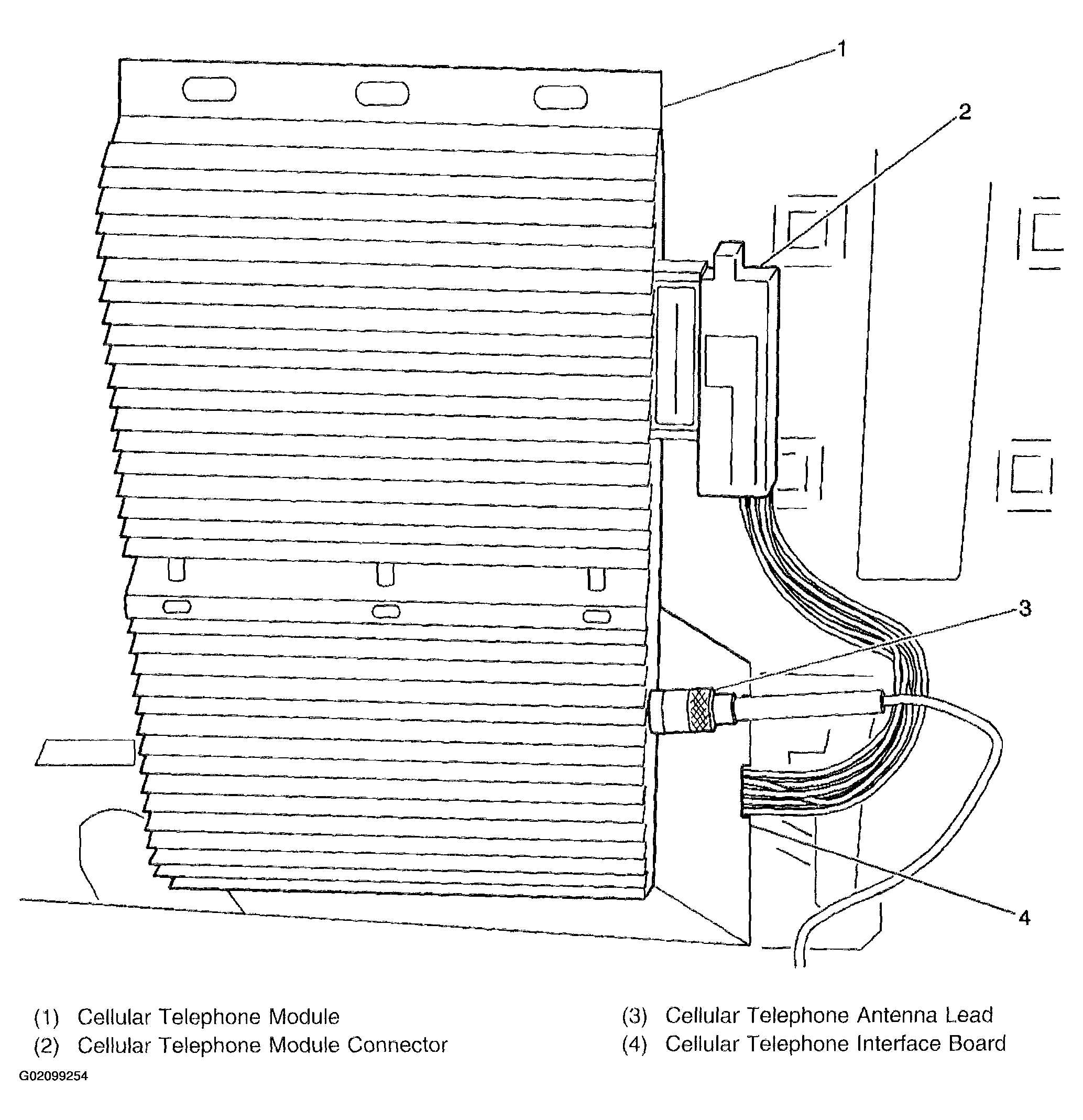

Fig 1: Component Location - Under Rear Compartment Shelf
G02099254Courtesy of GENERAL MOTORS CORP.

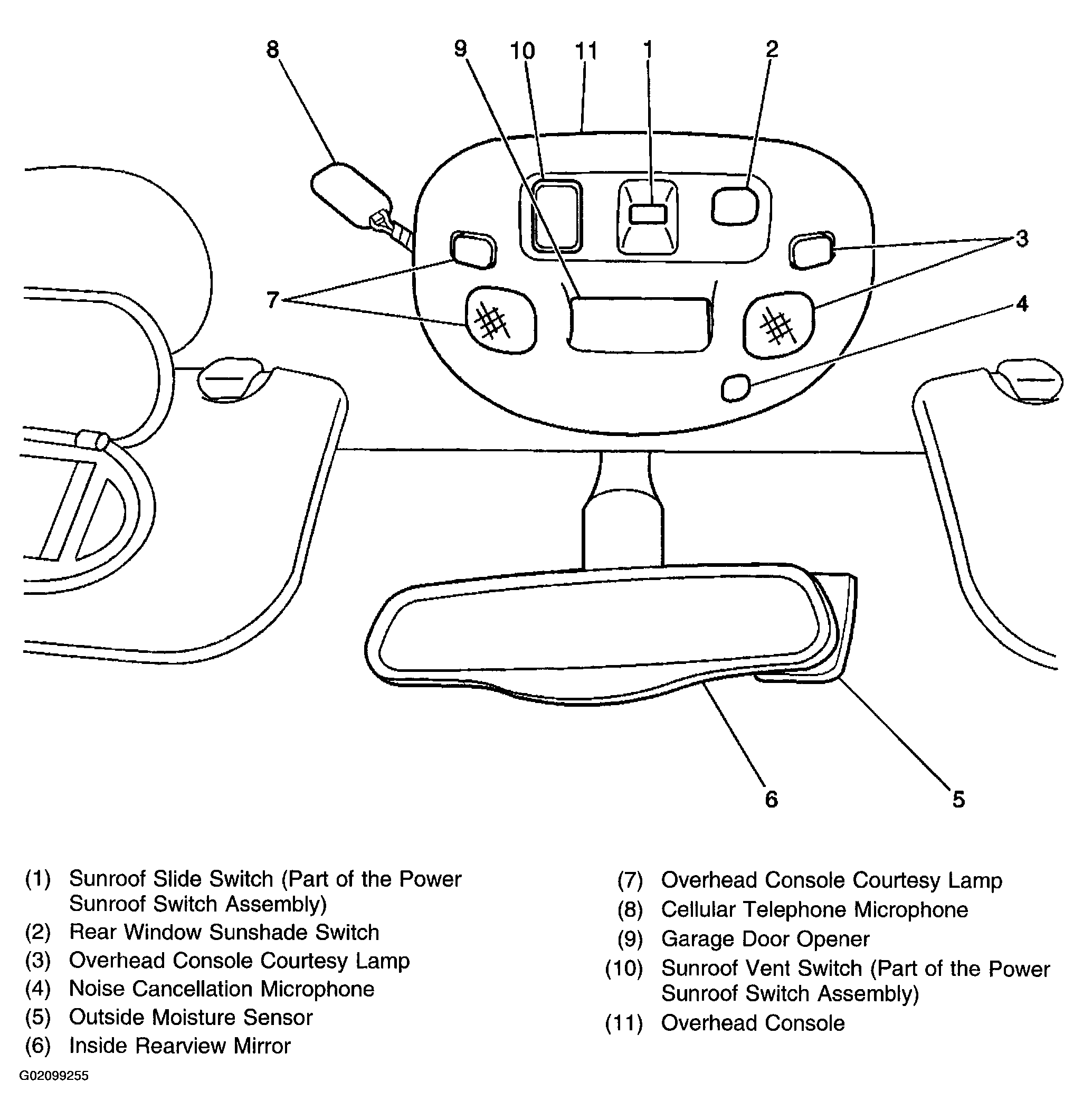

Fig 2: Component Location - Passenger Compartment, Center Front Of Headliner
G02099255Courtesy of GENERAL MOTORS CORP.

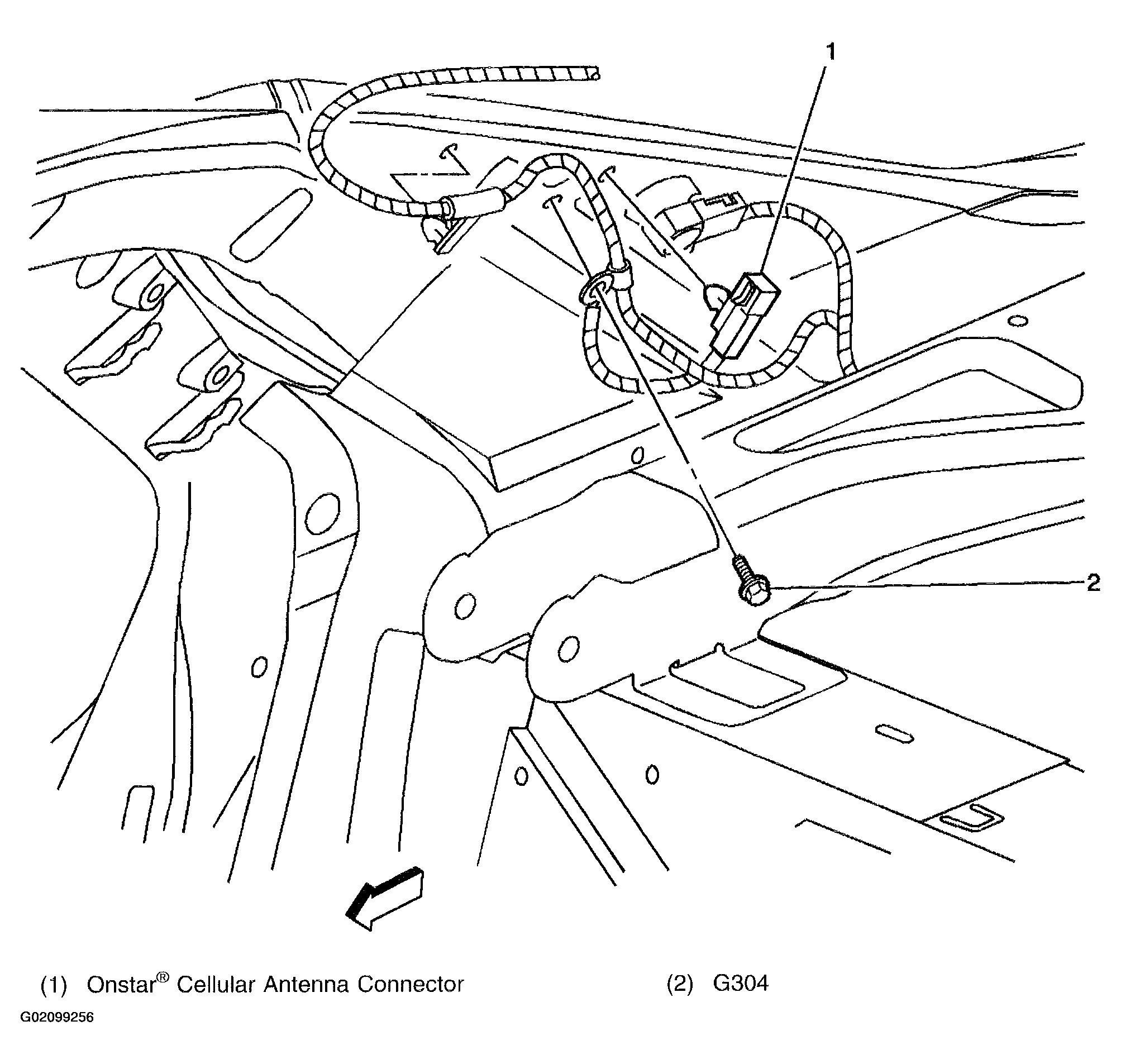

Fig 3: Component Location - Right Rear Corner Of Passenger Compartment, Above Rear Shelf
G02099256Courtesy of GENERAL MOTORS CORP.

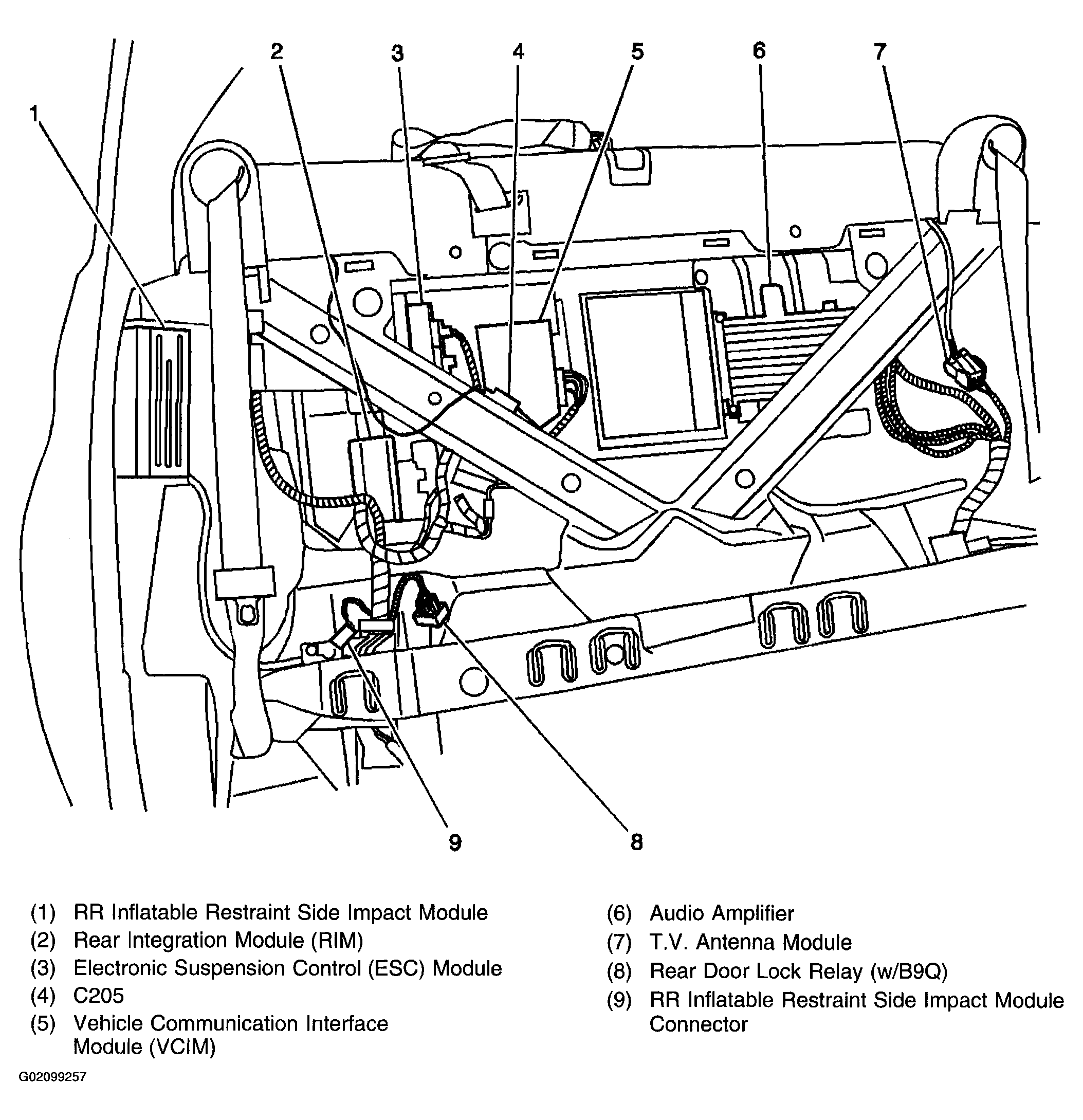

Fig 4: Component Location - Behind Rear Seat Back
G02099257Courtesy of GENERAL MOTORS CORP.

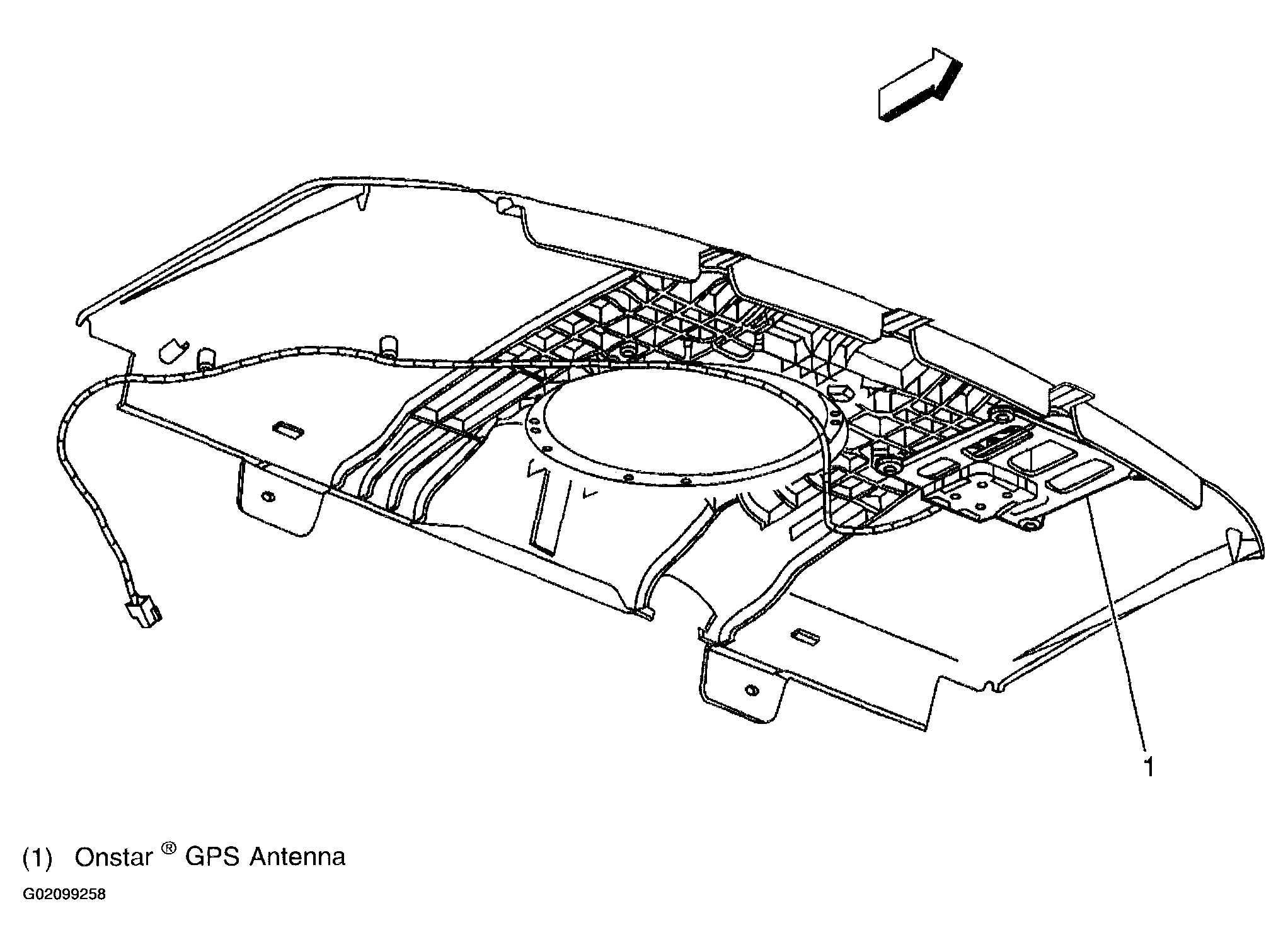

Fig 5: Component Location - Front Of Rear Compartment, Under Rear Shelf
G02099258Courtesy of GENERAL MOTORS CORP.
