Keyless Entry Connector End Views

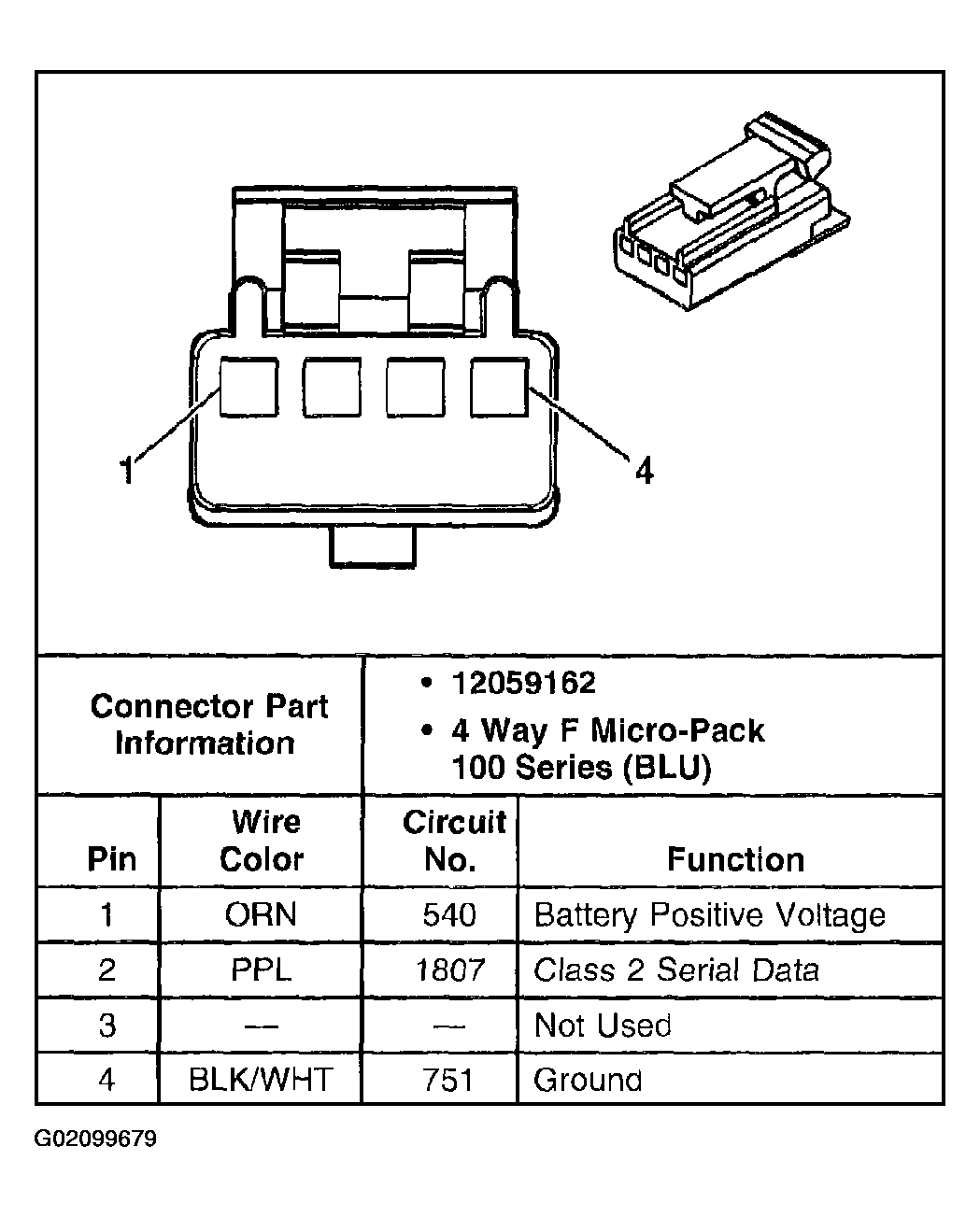

Fig 1: Identifying Remote Control Door Lock Receiver Connector Terminal
G02099679Courtesy of GENERAL MOTORS CORP.
