Scan Tool Output Controls

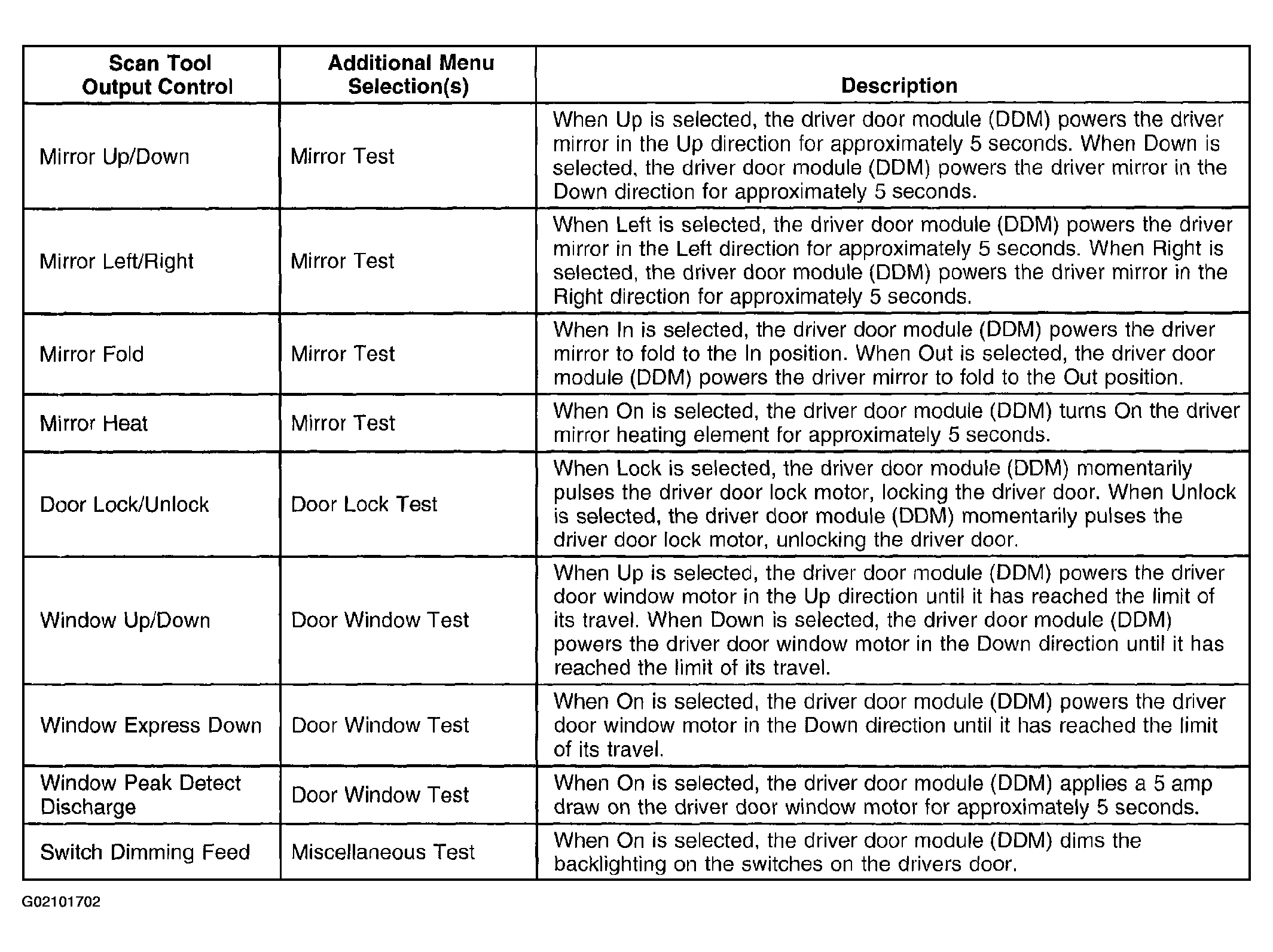

Fig 1: DDM Scan Tool Output Control Specifications
Courtesy of GENERAL MOTORS CORP.

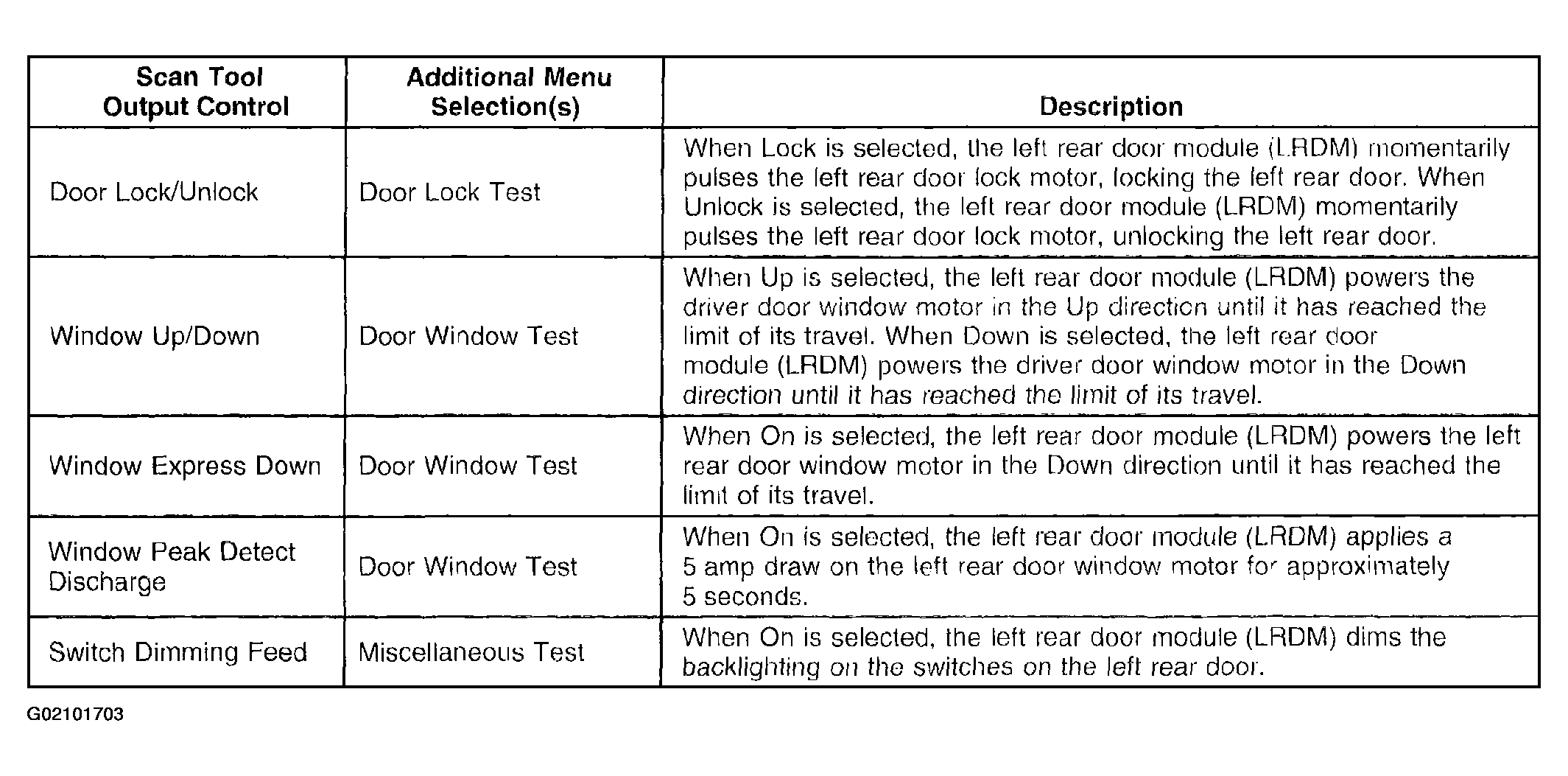

Fig 2: LRDM Scan Tool Output Control Specifications
Courtesy of GENERAL MOTORS CORP.

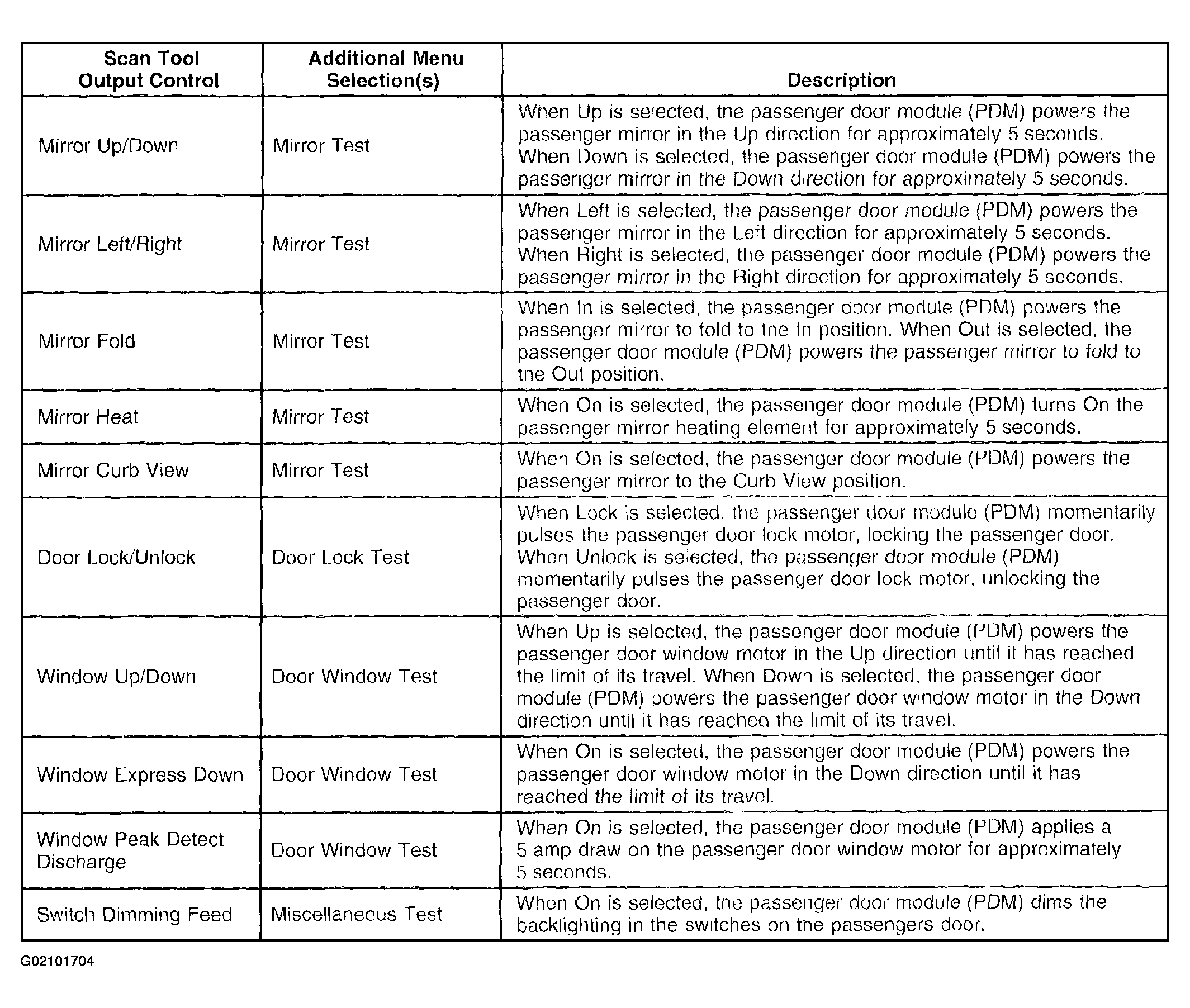

Fig 3: PDM Scan Tool Output Control Specifications
Courtesy of GENERAL MOTORS CORP.

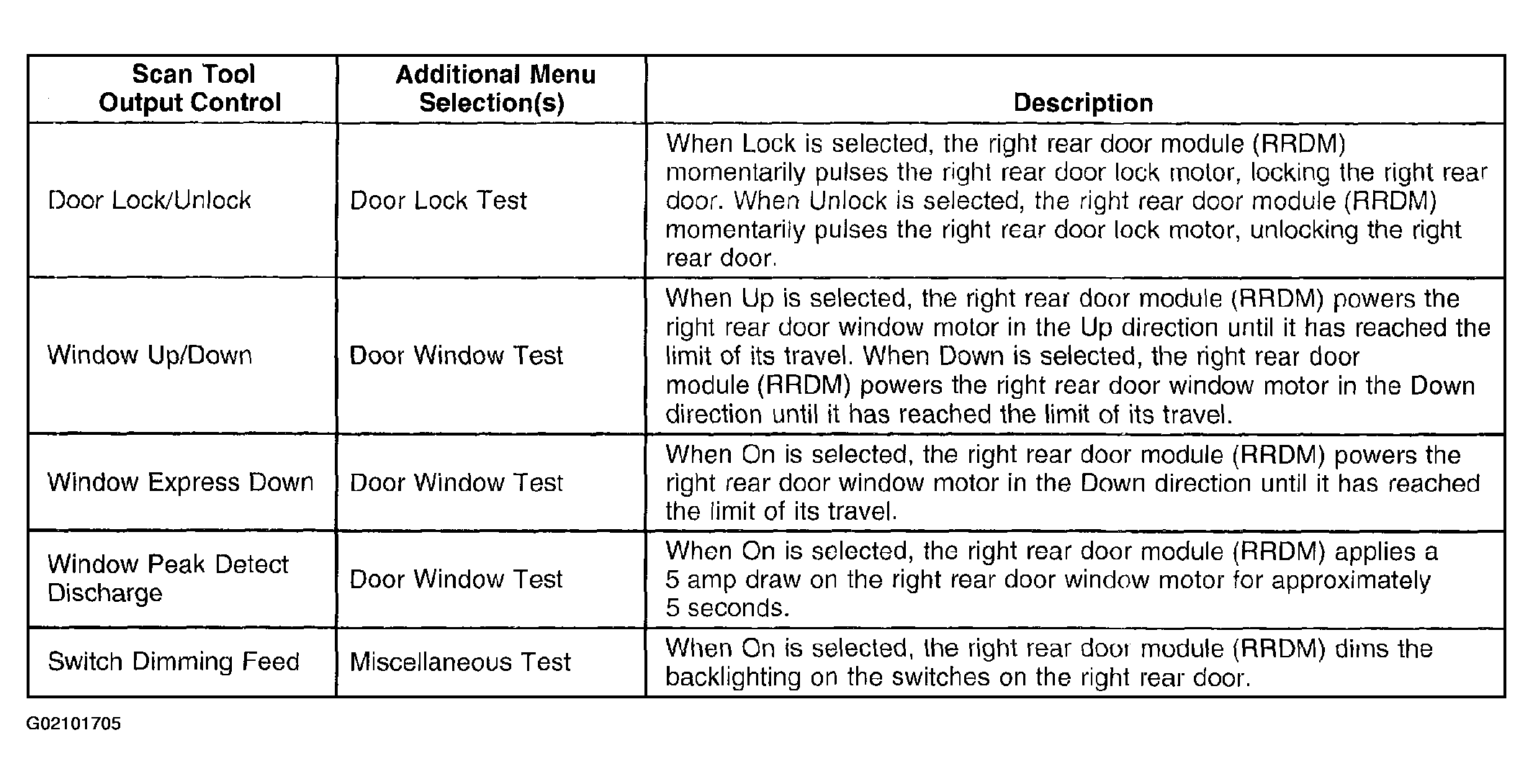

Fig 4: RRDM Scan Tool Output Control Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
