Removal Procedure

CAUTION: Refer to SIR CAUTION

Remove the front seat cushion assembly. Refer to SEAT CUSHION REPLACEMENT - FRONT .
Disconnect the electrical connectors from the heated seat control module (2) and the memory seat module (1).

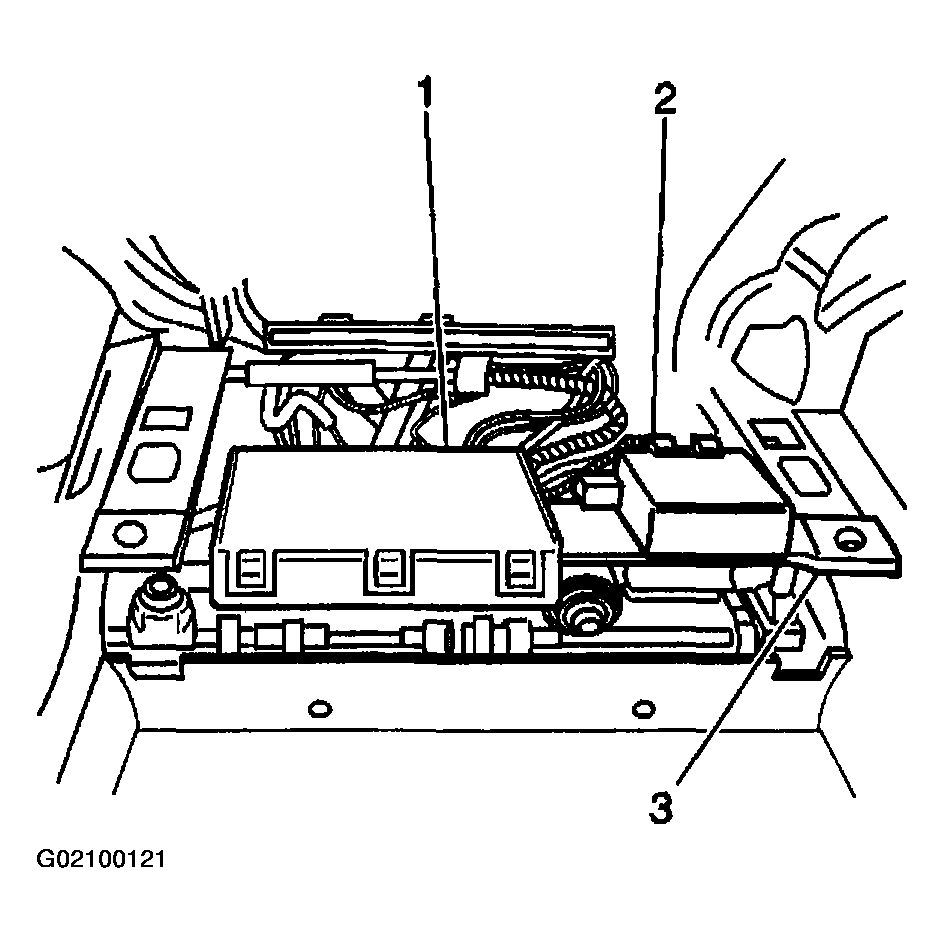

Fig 1: Disconnecting Electrical Connectors From Heated Seat Control Module And Memory Seat Module
Courtesy of GENERAL MOTORS CORP.
Bend the tabs on the module and bracket assembly in order to remove the module or modules (1, 2) and bracket assembly from the seat adjuster.
Remove the fasteners retaining the heated seat control module (2) to the module bracket.
Remove the heated seat control module (2) from the bracket.

Fig 2: Removing Heated Seat Control Module From Bracket
Courtesy of GENERAL MOTORS CORP.
