Installation Procedure

Snap the recliner sensor to the recliner motor.
Slide the recliner shaft back through the recliner sensor and the recliner motor.

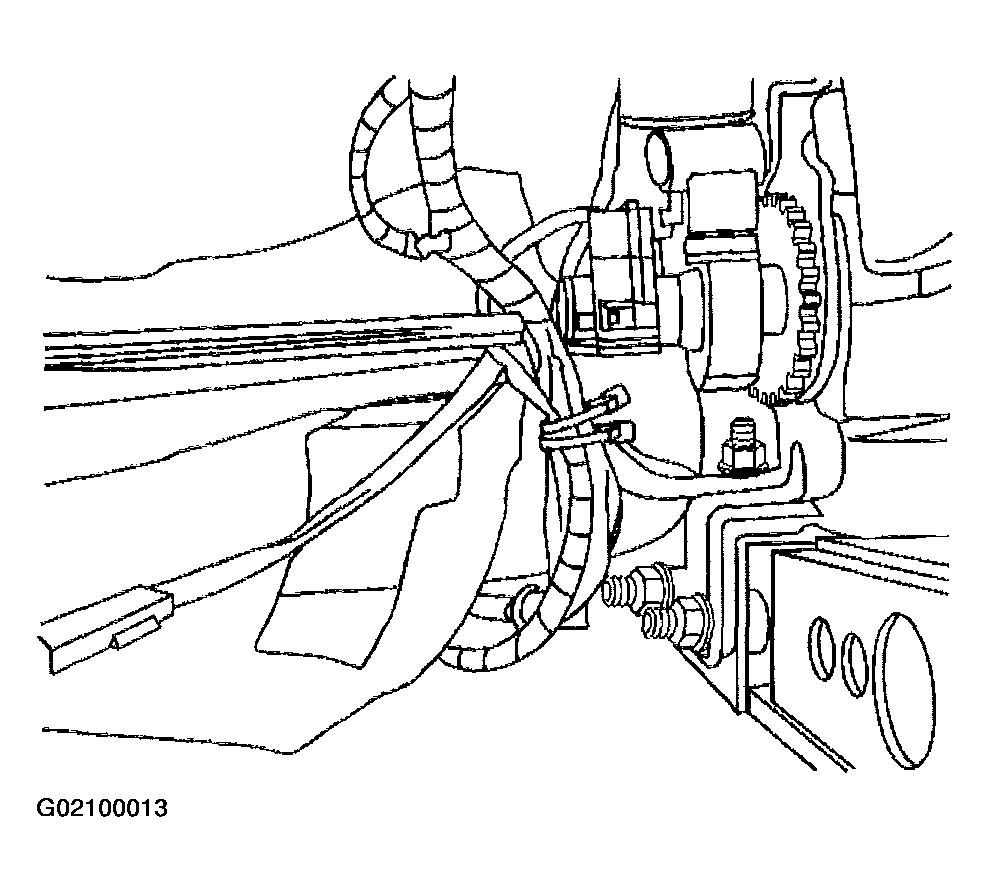

Fig 1: Connecting Recliner Sensor And Recliner Motor
Courtesy of GENERAL MOTORS CORP.
Install the retaining clip to the recliner shaft.
Connect the recliner motor electrical connector.
Install the seat back trim cover. Refer to SEAT BACK TRIM REPLACEMENT - FRONT .

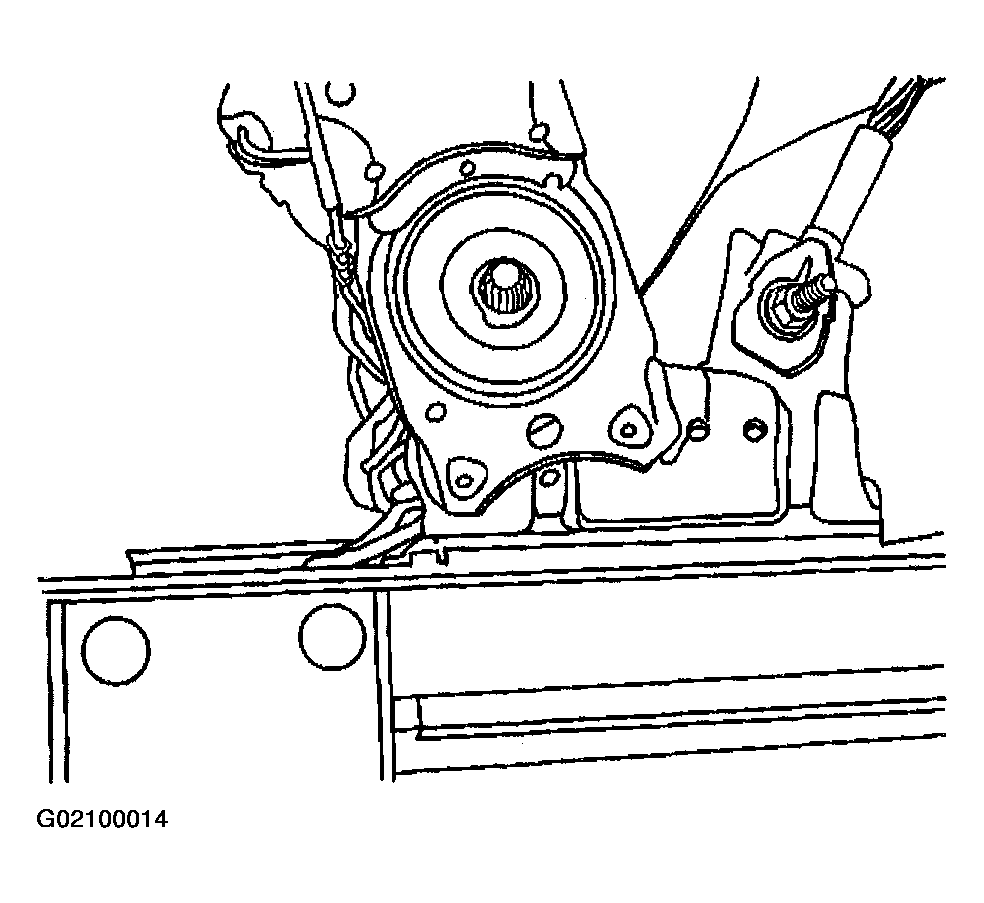

Fig 2: Installing Retaining Clip
Courtesy of GENERAL MOTORS CORP.
Install the lower seat belt retractor trim cover (2).
Install the push pin fastener (1)
Install the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET .

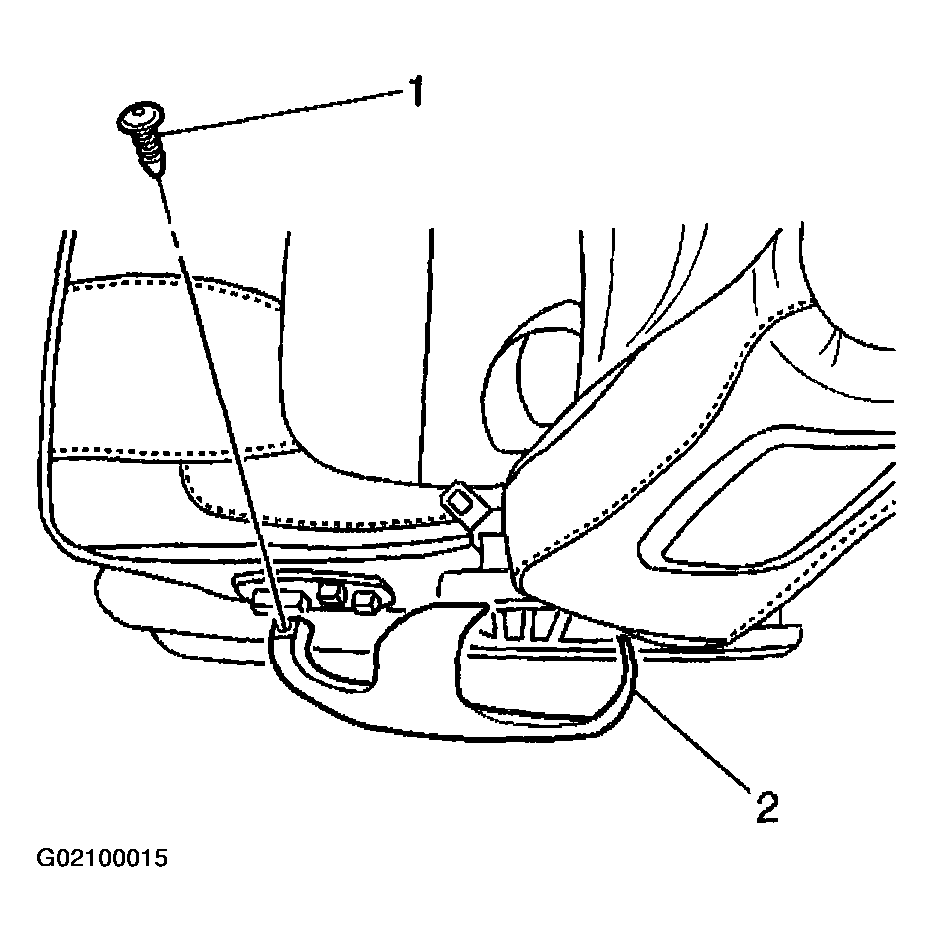

Fig 3: Installing Lower Seat Belt Retractor Trim Cover And Push Pin Fastener
Courtesy of GENERAL MOTORS CORP.
