Power Windows Inoperative - Express Up Function

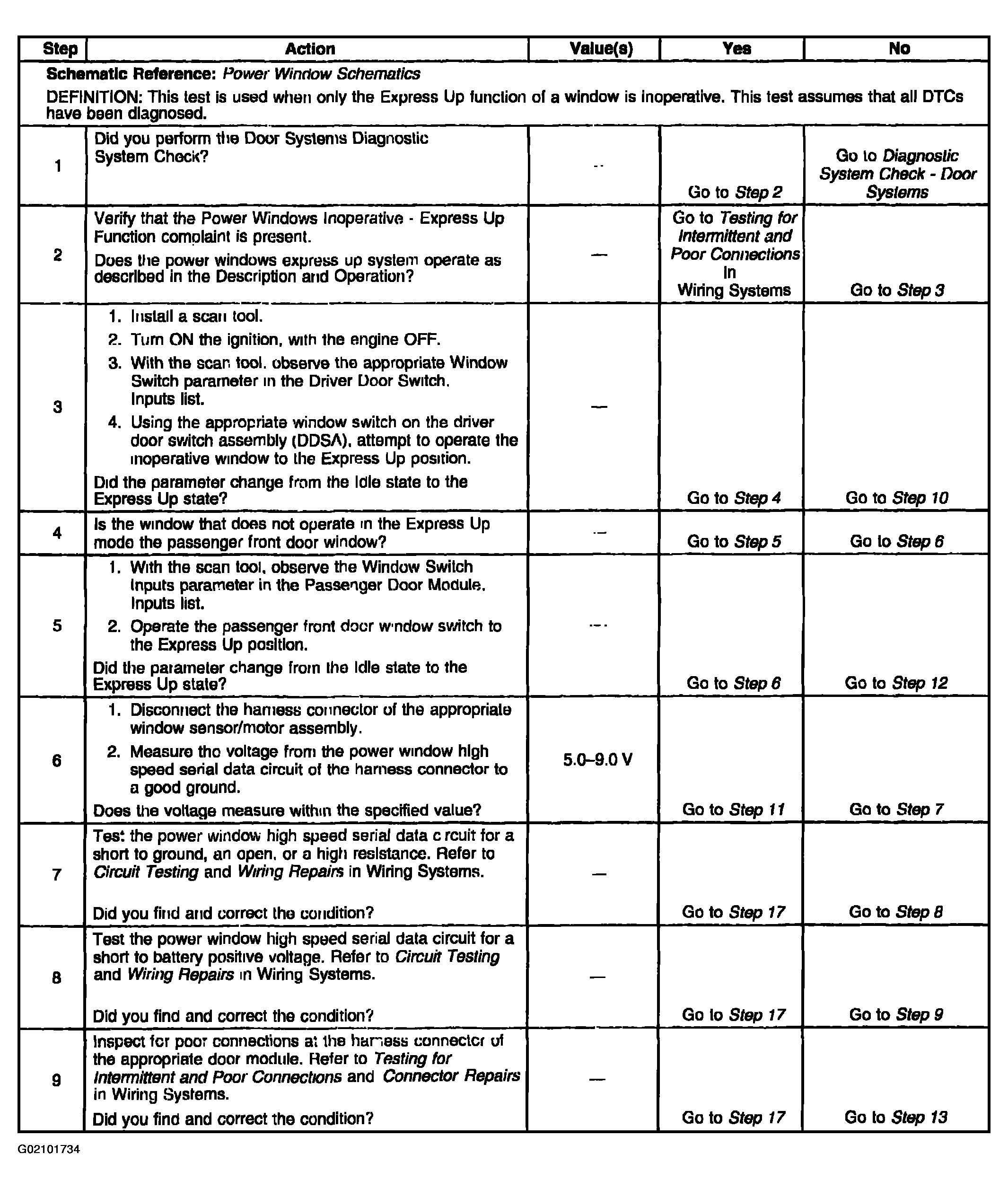

Fig 1: Power Windows Inoperative - Express Up Function Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

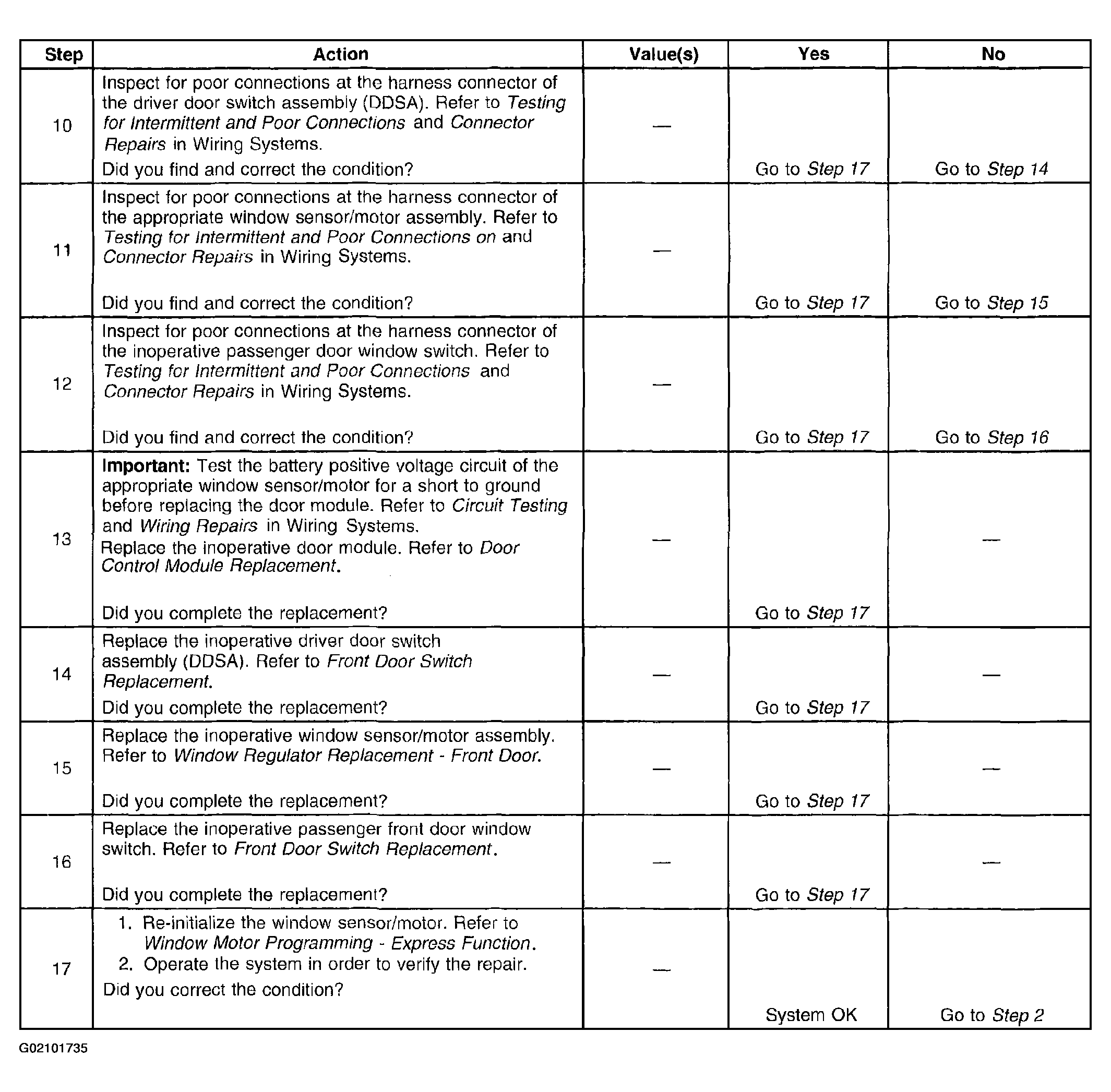

Fig 2: Power Windows Inoperative - Express Up Function Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
