Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 2.  This step determines if the indicator is operating properly.
2. 3.  This step determines if the DDSA recognizes the lockout switch input.

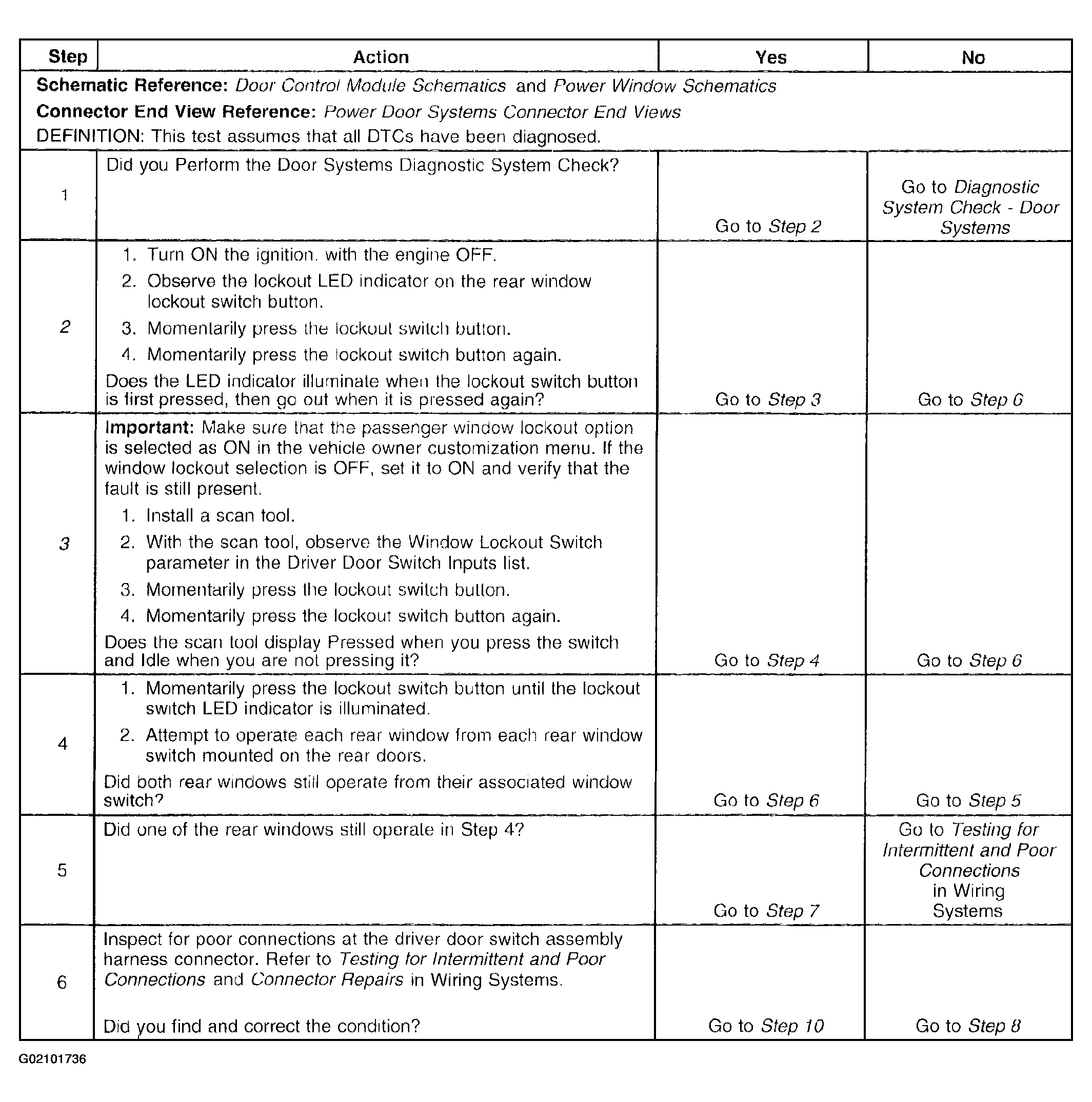

Fig 1: Power Windows Inoperative - Lockout Function Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

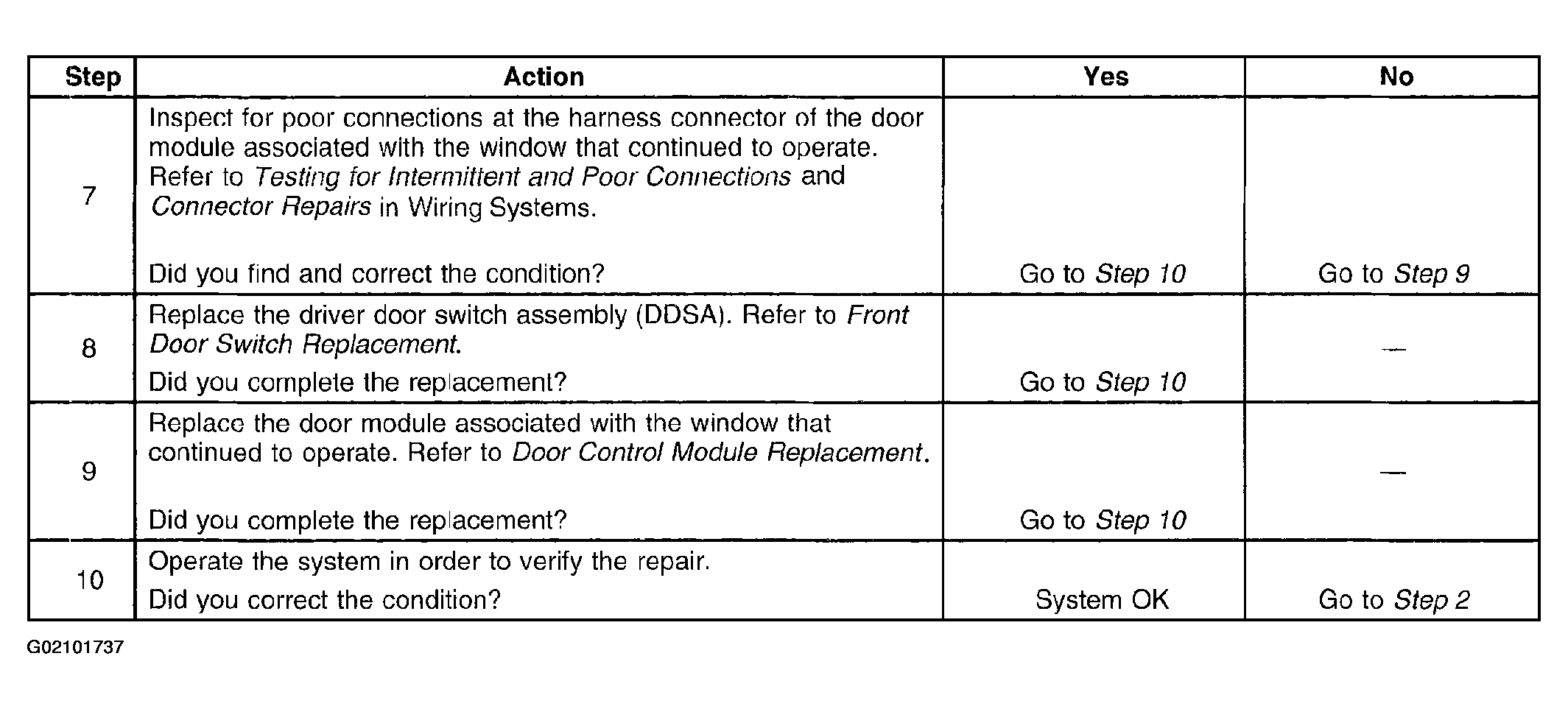

Fig 2: Power Windows Inoperative - Lockout Function Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
