Scan Tool Data List

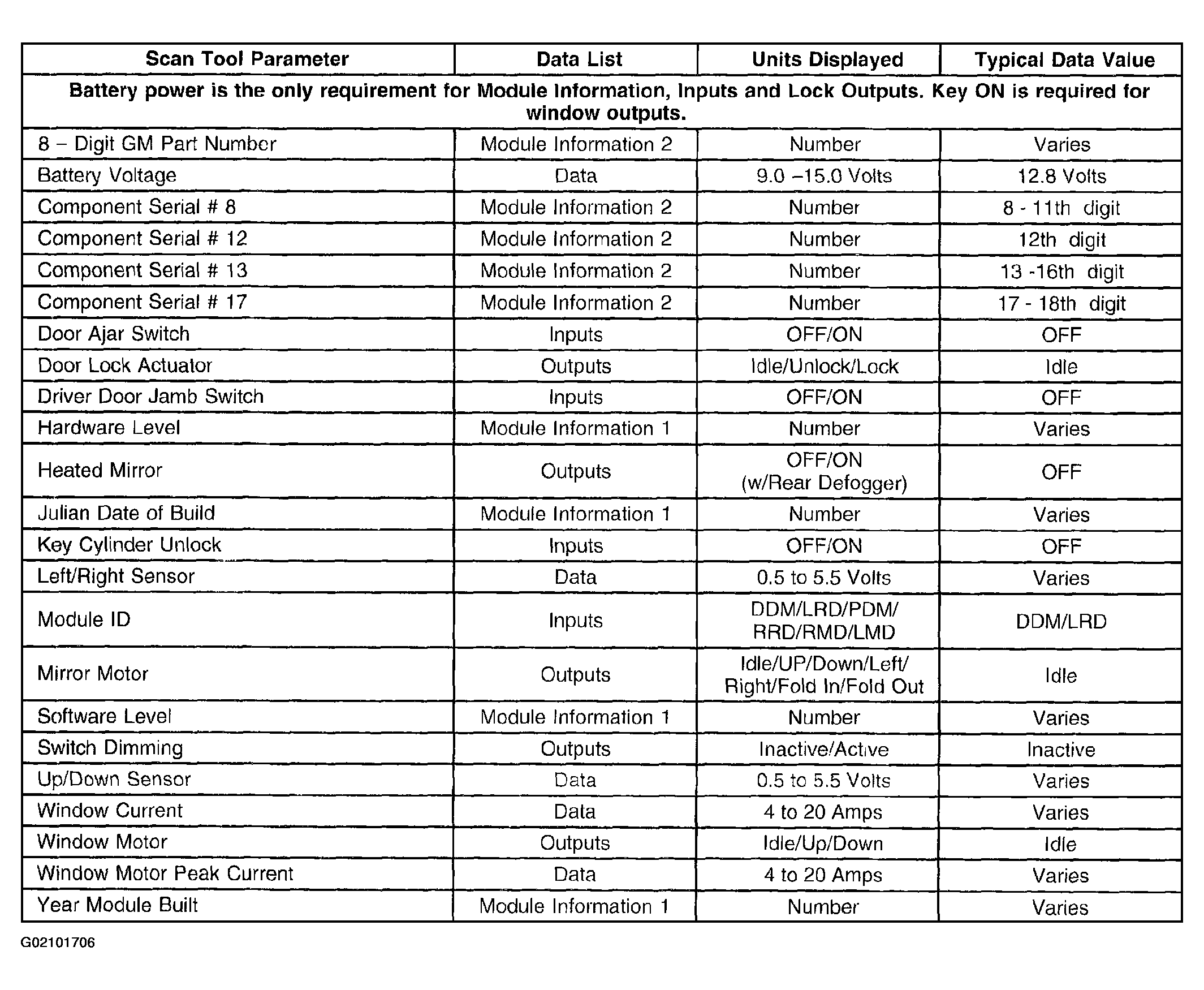

Fig 1: Driver Door Module (DDM) Specifications

Courtesy of GENERAL MOTORS CORP.

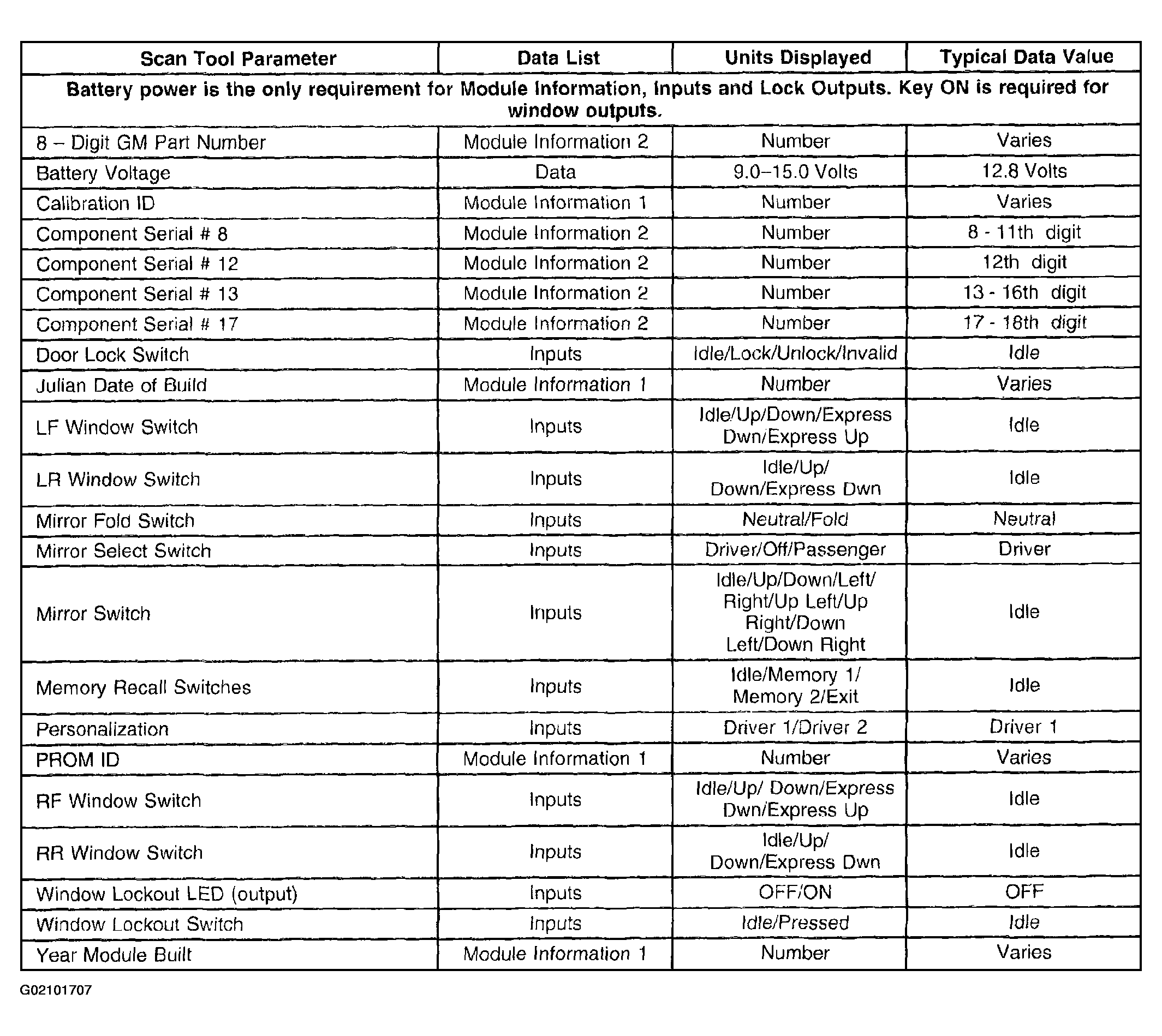

Fig 2: Driver Door Switch Assembly (DDSA) Specifications

Courtesy of GENERAL MOTORS CORP.

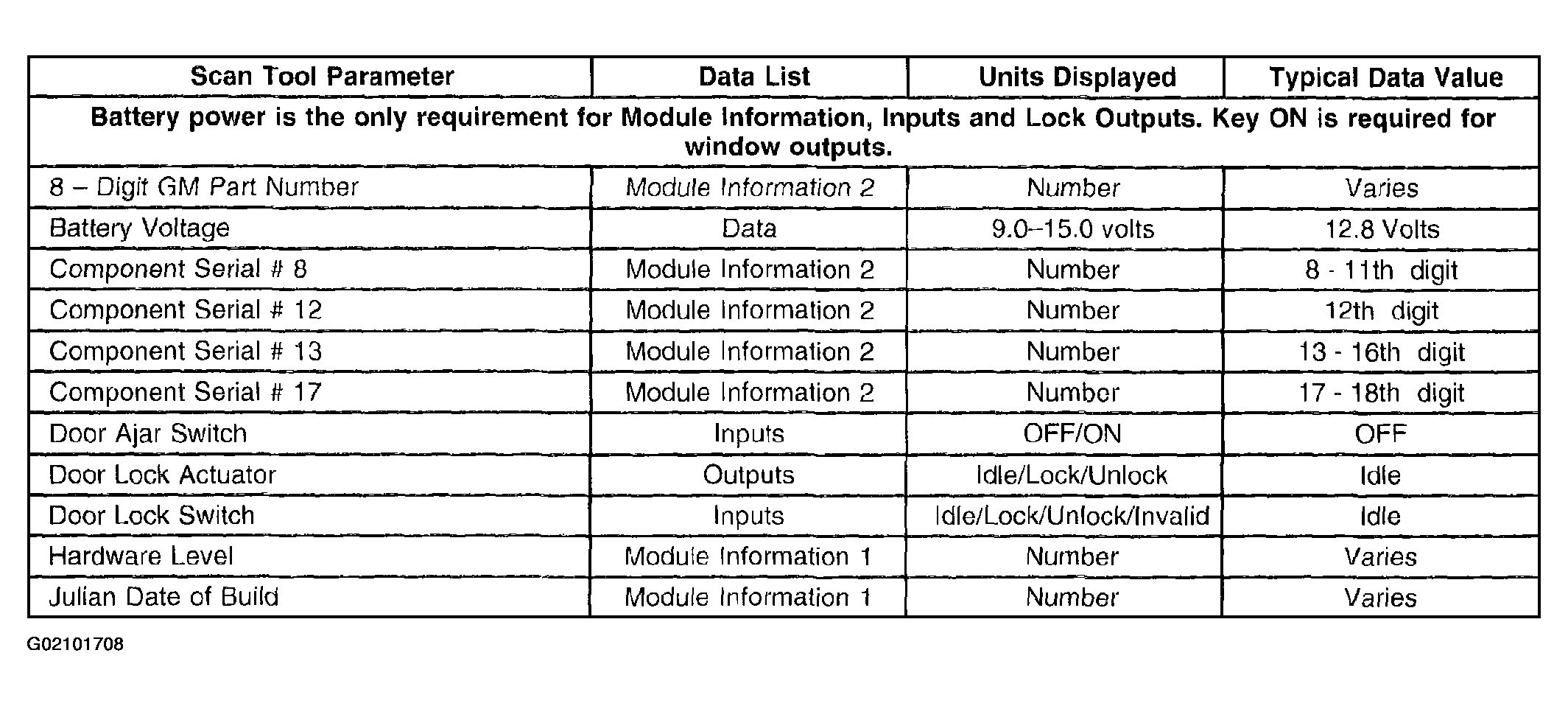

Fig 3: Left Rear Door Module (LRDM) Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

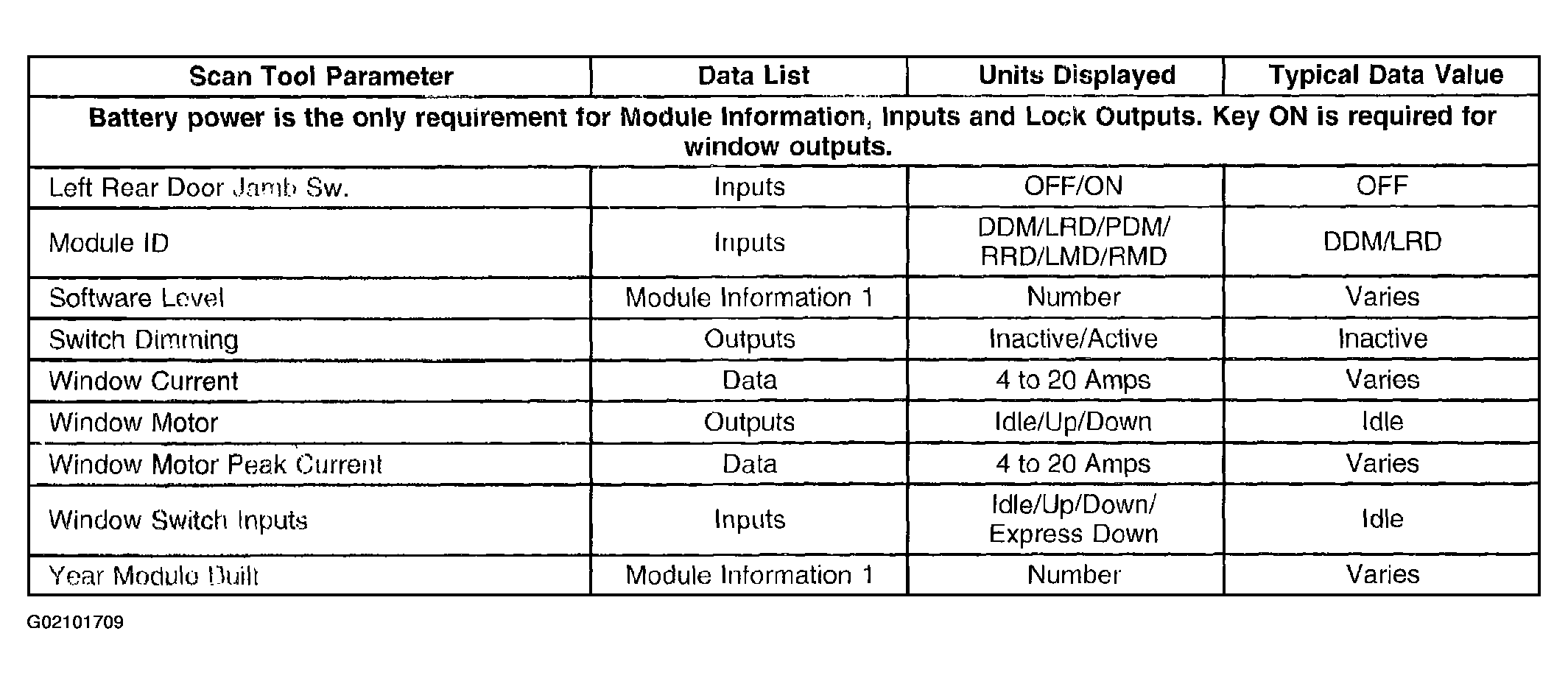

Fig 4: Left Rear Door Module (LRDM) Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

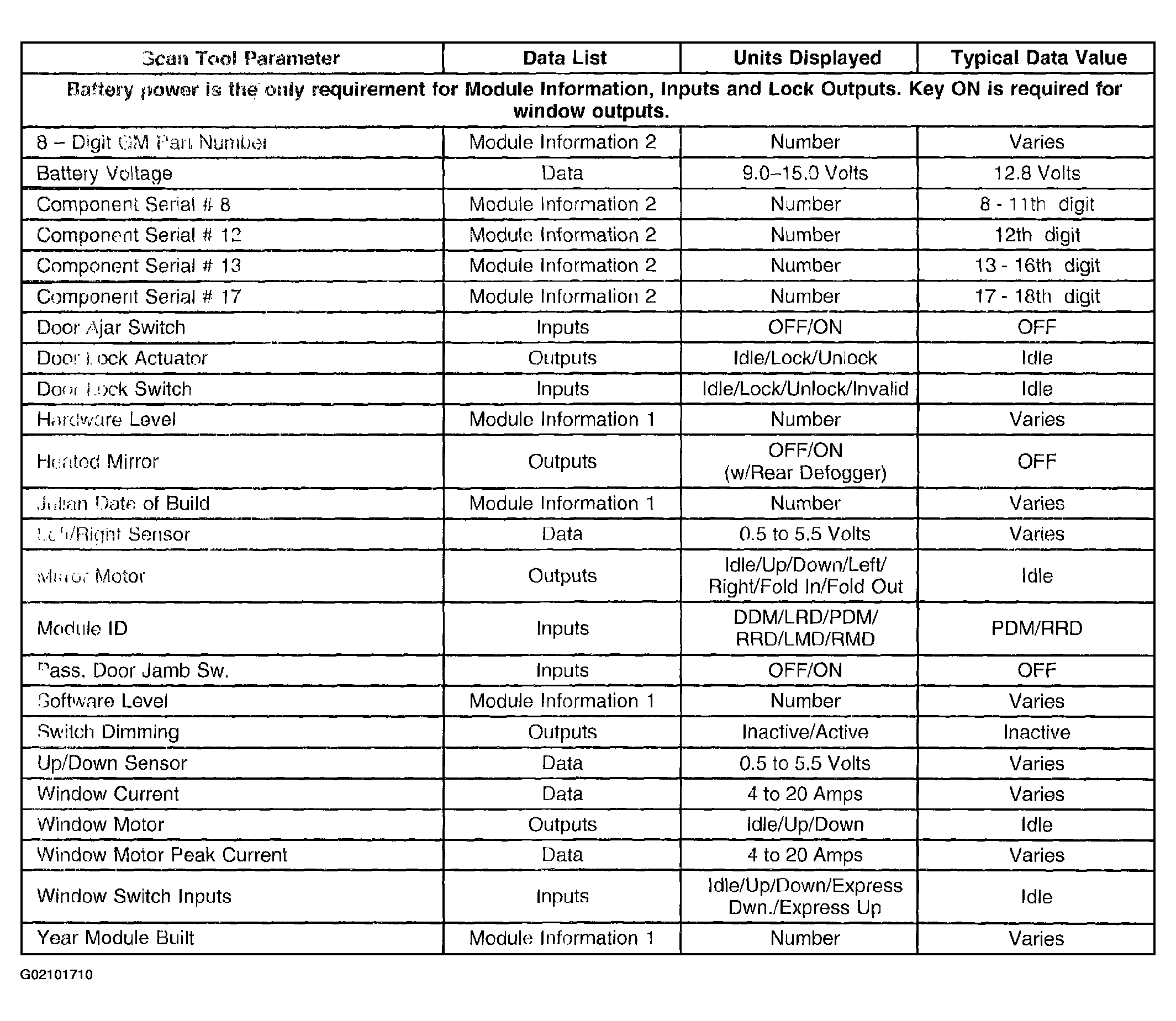

Fig 5: Passenger Front Door Module (PDM) Specifications

Courtesy of GENERAL MOTORS CORP.

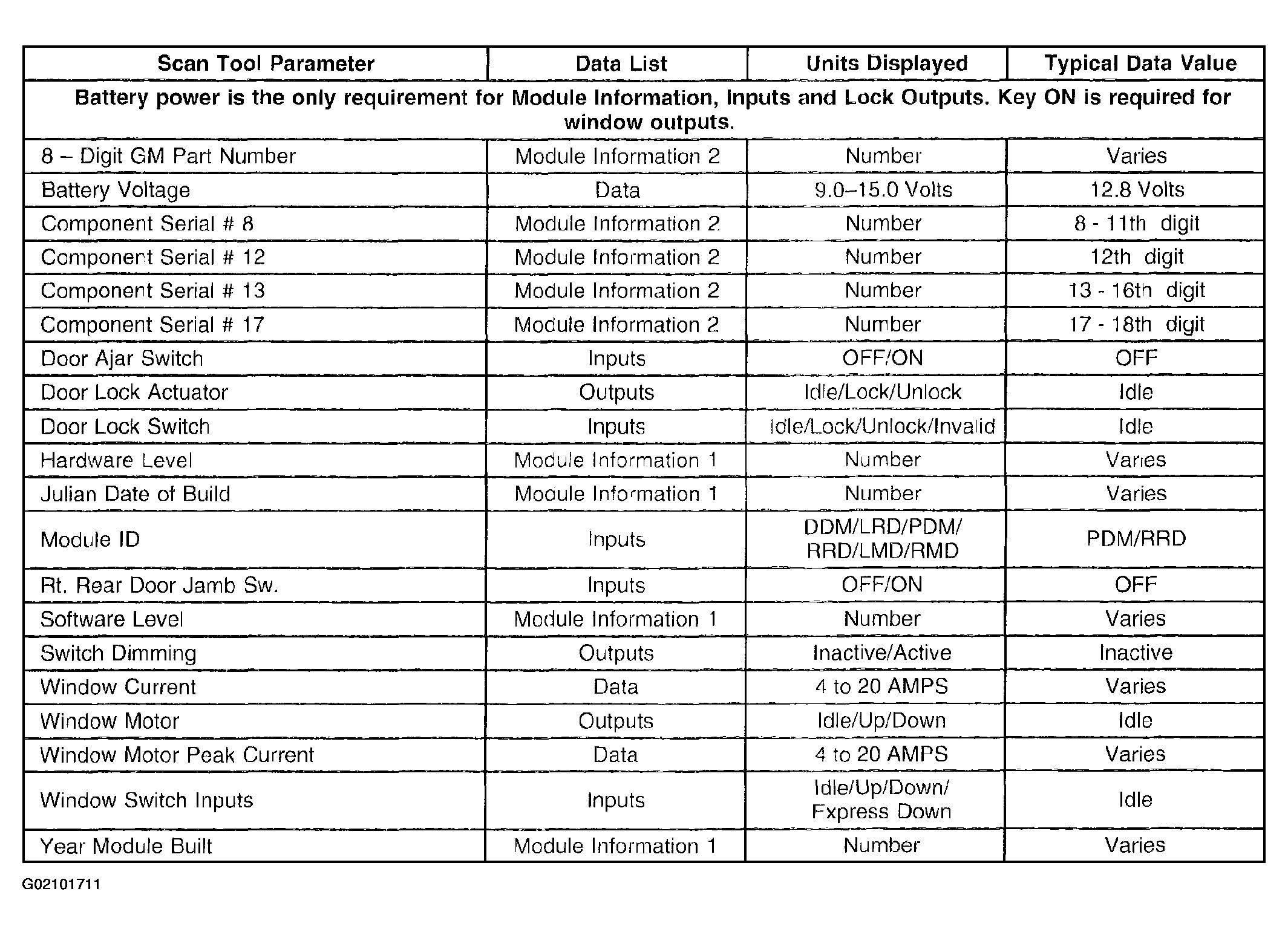

Fig 6: Right Rear Door Module (RRDM) Specifications

Courtesy of GENERAL MOTORS CORP.

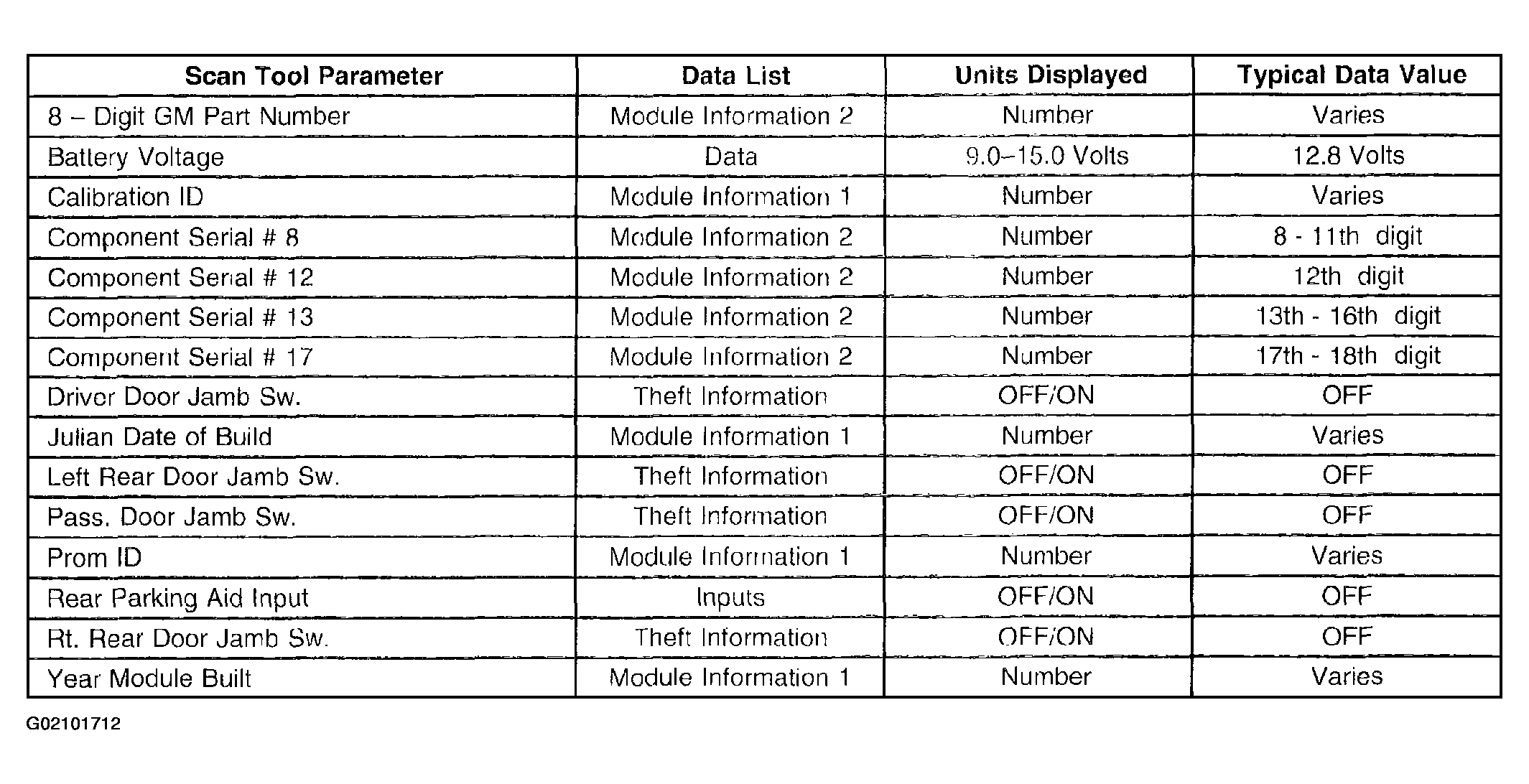

Fig 7: Rear Integration Module (RIM) Specifications

Courtesy of GENERAL MOTORS CORP.

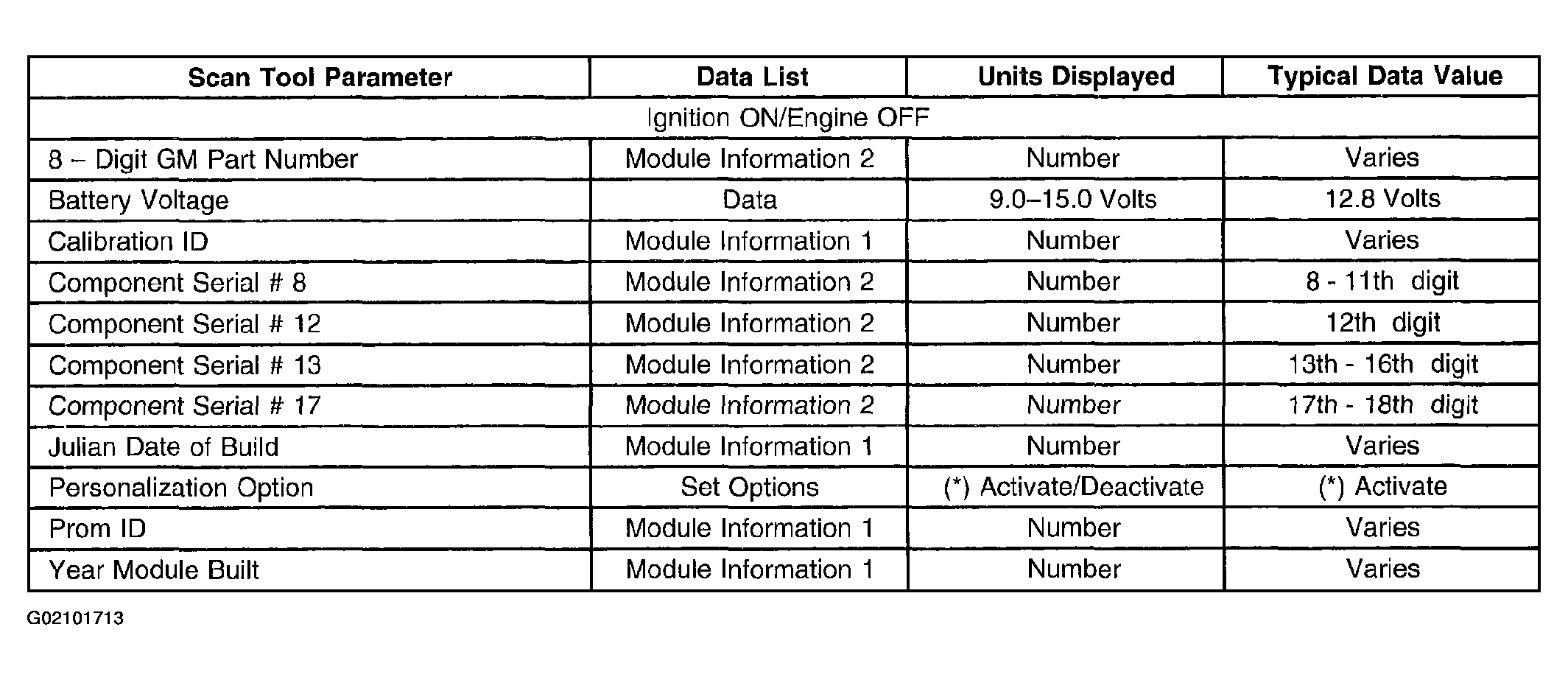

Fig 8: Dash Integration Module (DIM) Specifications

Courtesy of GENERAL MOTORS CORP.
