Removal Procedure
- Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
- Remove the door module. Refer to DOOR CONTROL MODULE REPLACEMENT .
- Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
- Remove the inner window belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER .

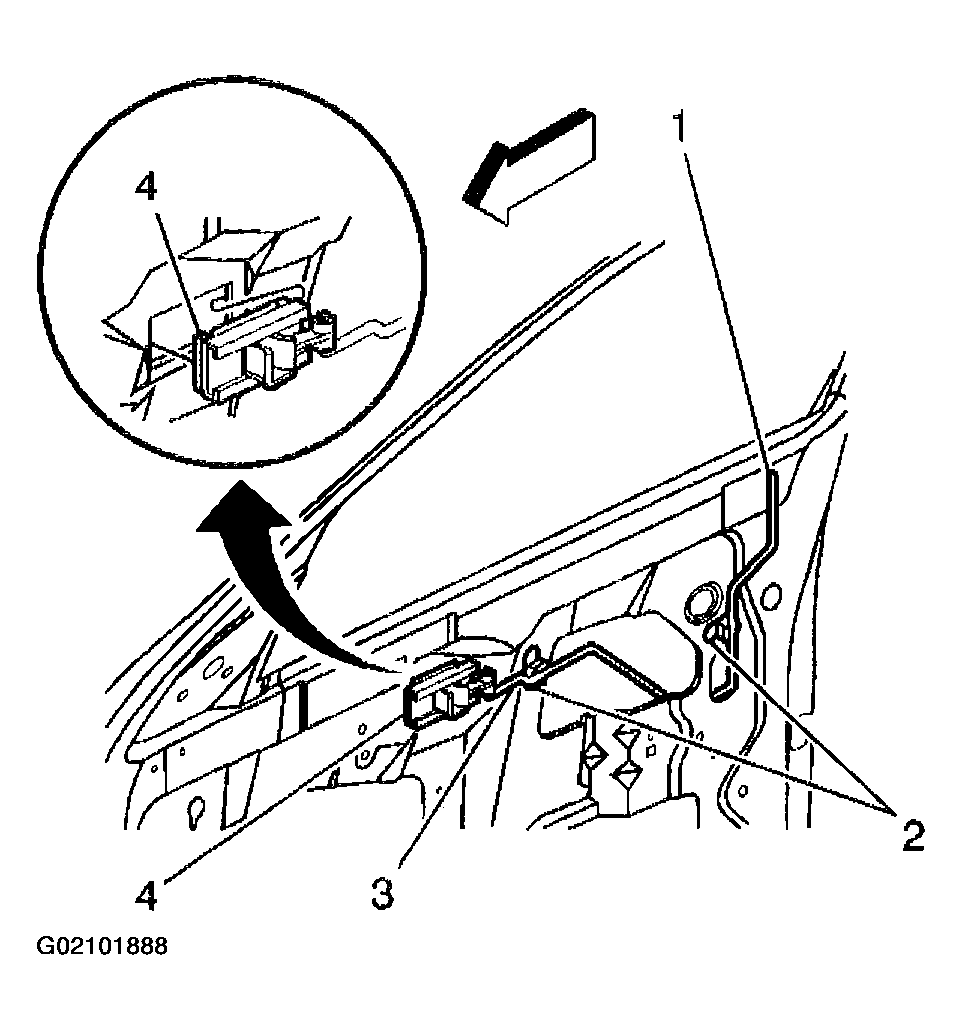

- Remove the inside handle assembly (4) in order to gain access to the window clamp attachment bolts:
- 5.1. Carefully pry the front of the assembly (4) rearward.
- 5.2. Pull the front of the assembly (4) outward.
- 5.3. Slide the assembly (4) forward to remove.
- Disconnect the handle rod (3) from the clip guide (2).CAUTION: Refer to EXPRESS WINDOW DOWN CAUTION
- Reconnect the power window switch and module.
- Raise the window to the full-up position.
- Tape the window in place.CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
- Loosen the window clamp attachment fasteners four revolutions.
- Lower the regulator clamps (2) to the full down position.

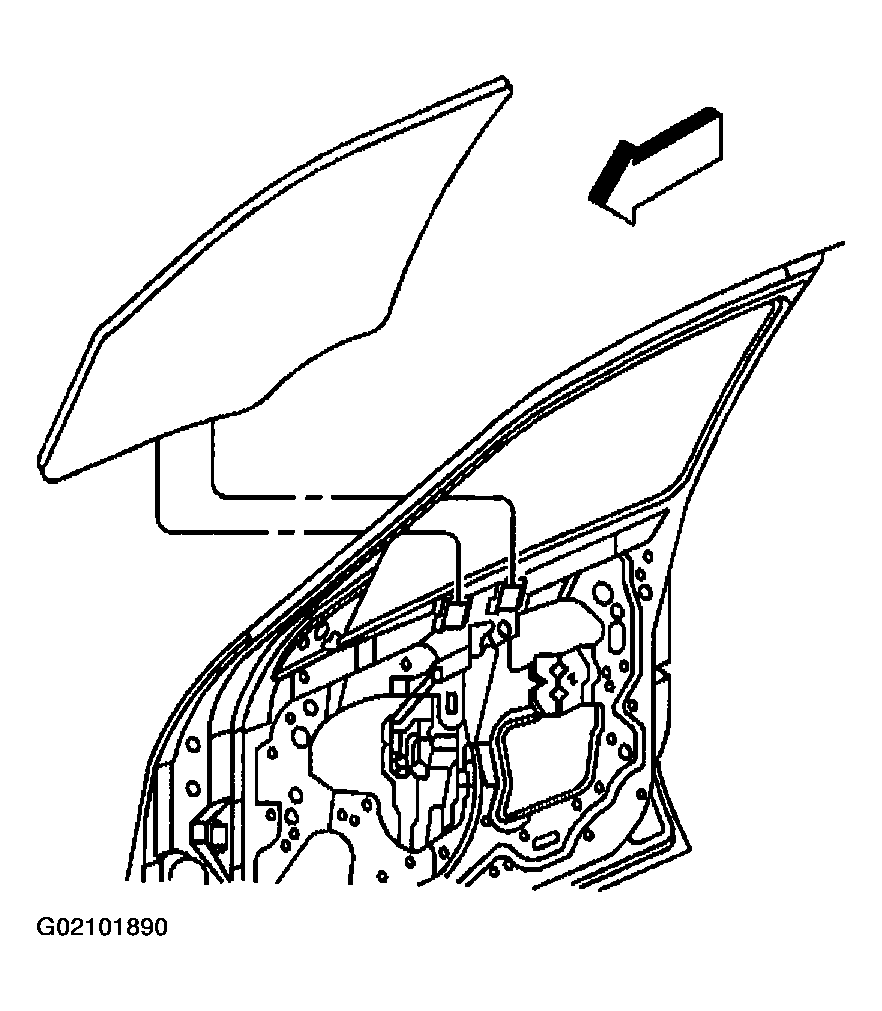

- Remove the window from the door in the following order:
- 12.1. While supporting the window through the access hole of the inner panel, remove the tape holding the window up.
- 12.2. Lower the window slightly.
- 12.3. Tilt the window downward at the front.
- 12.4. Pull upward on the rear edge of the window.
- 12.5. Pull the window up and out of the door from the outer side of the window opening.
