Removal Procedure
- Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
- Remove the door module. Refer to DOOR CONTROL MODULE REPLACEMENT .
- Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
- Remove the garnish molding. Refer to GARNISH MOLDING REPLACEMENT - FRONT DOOR FRAME .
- Remove the window inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER .

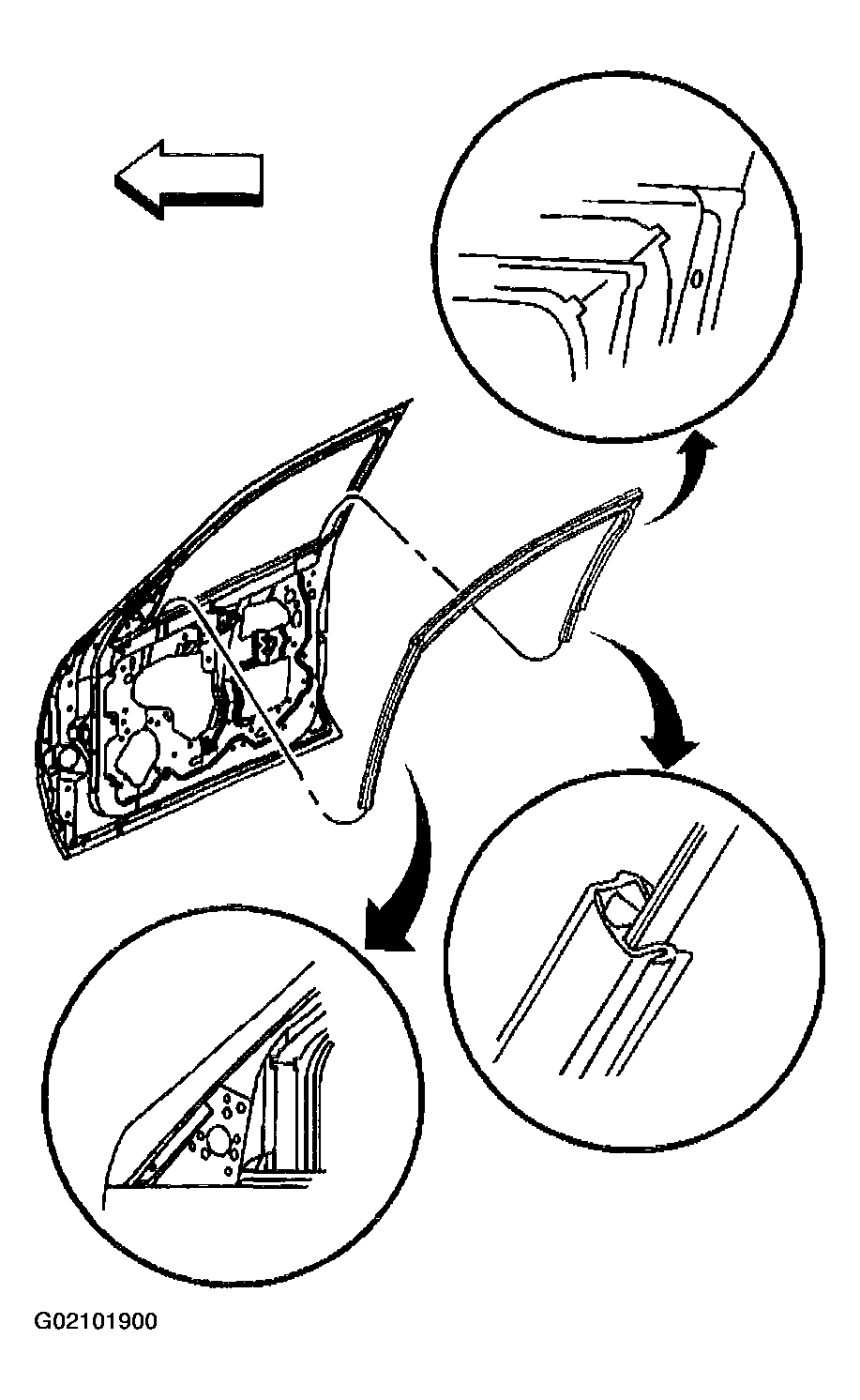

- Grasp the window run channel at the lower rear corner.
- Pull up and forward to release the run channel from the door flange.
