Power Window Schematics
Power Window Schematics

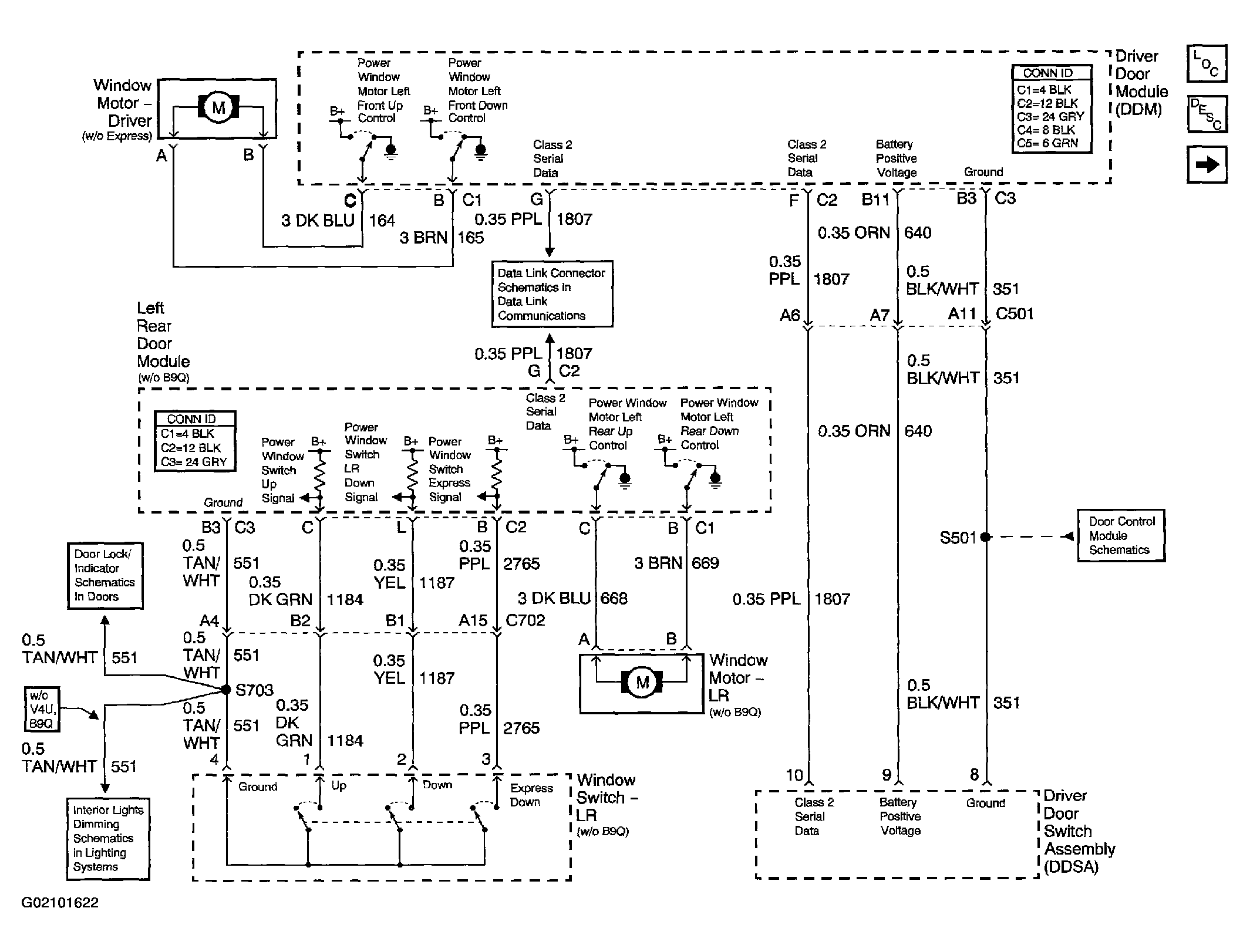

Fig 1: Power Window Schematics (Left Power Windows) Diagram
Courtesy of GENERAL MOTORS CORP.

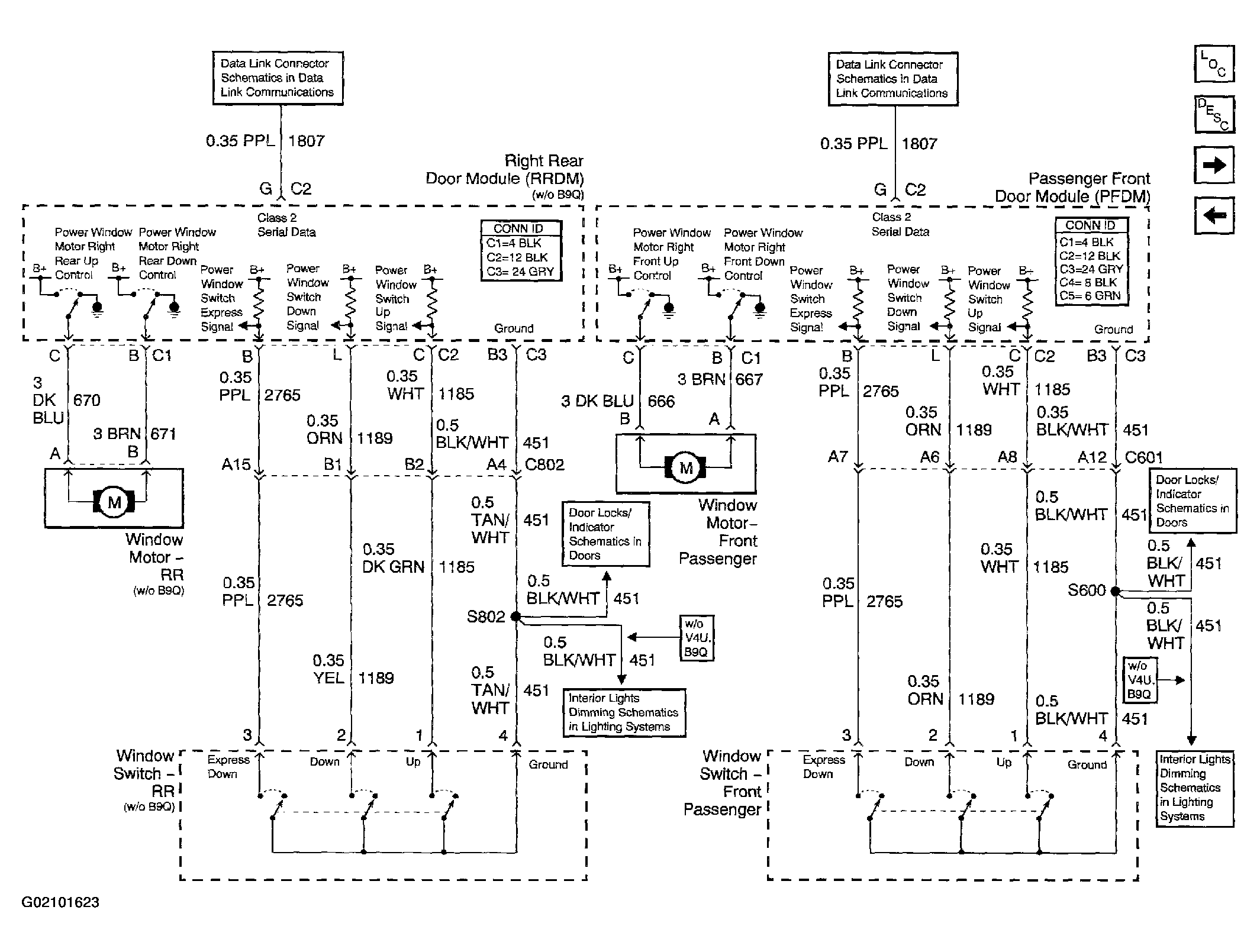

Fig 2: Power Window Schematics (Right Power Windows) Diagram
Courtesy of GENERAL MOTORS CORP.

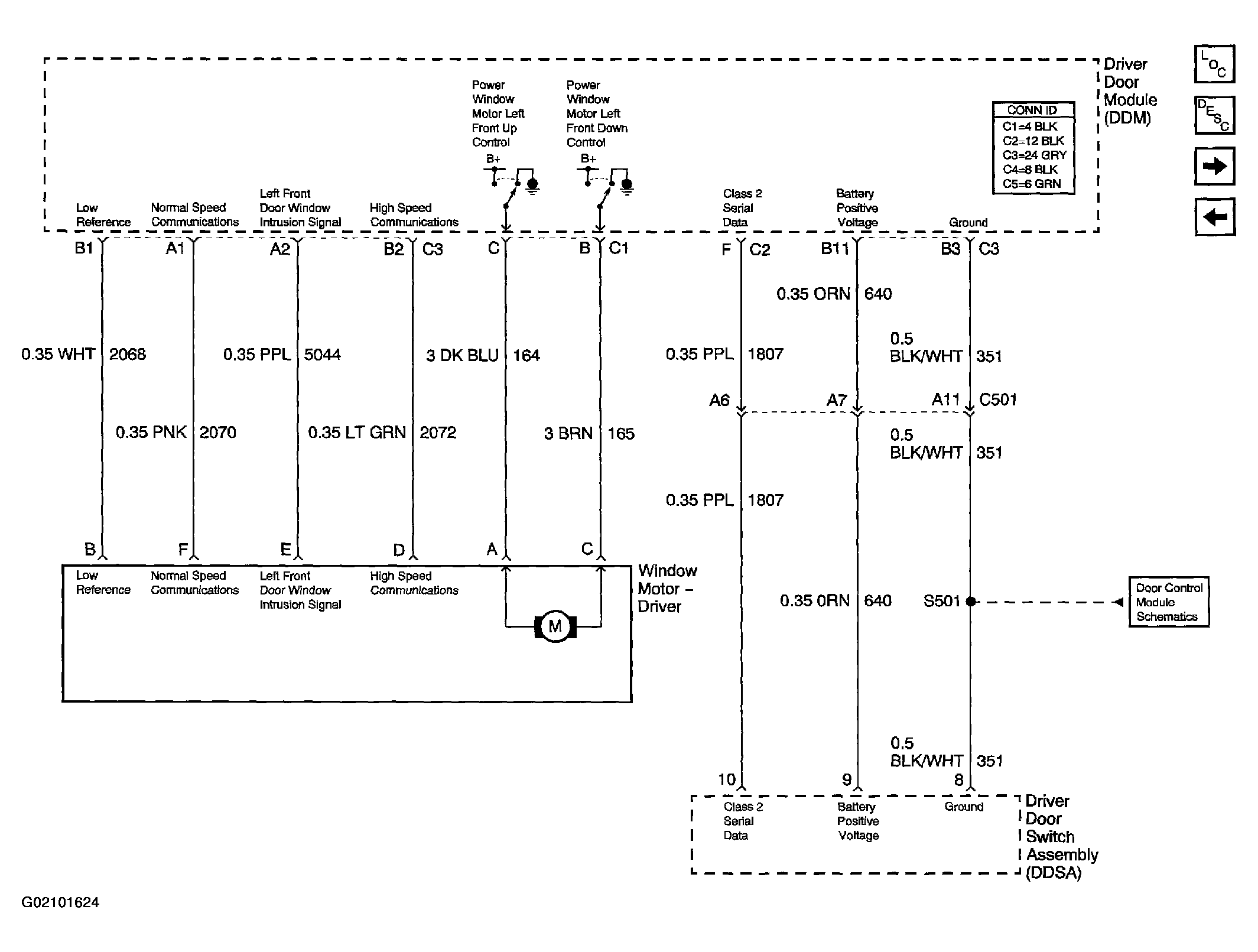

Fig 3: Power Window Schematics (Driver Power Window w/Express) Diagram
Courtesy of GENERAL MOTORS CORP.

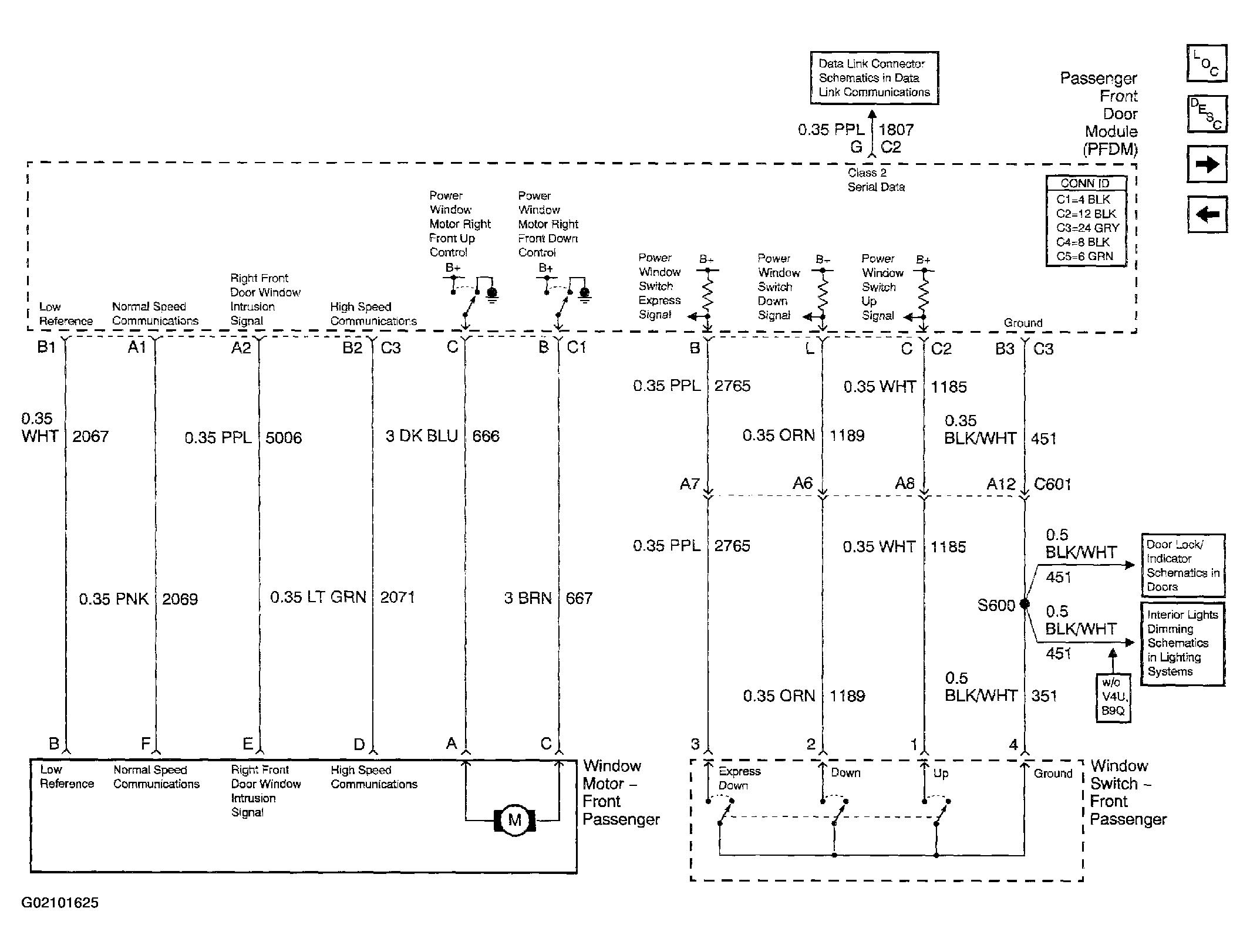

Fig 4: Power Window Schematics (Passenger Power Window w/Express) Diagram
Courtesy of GENERAL MOTORS CORP.

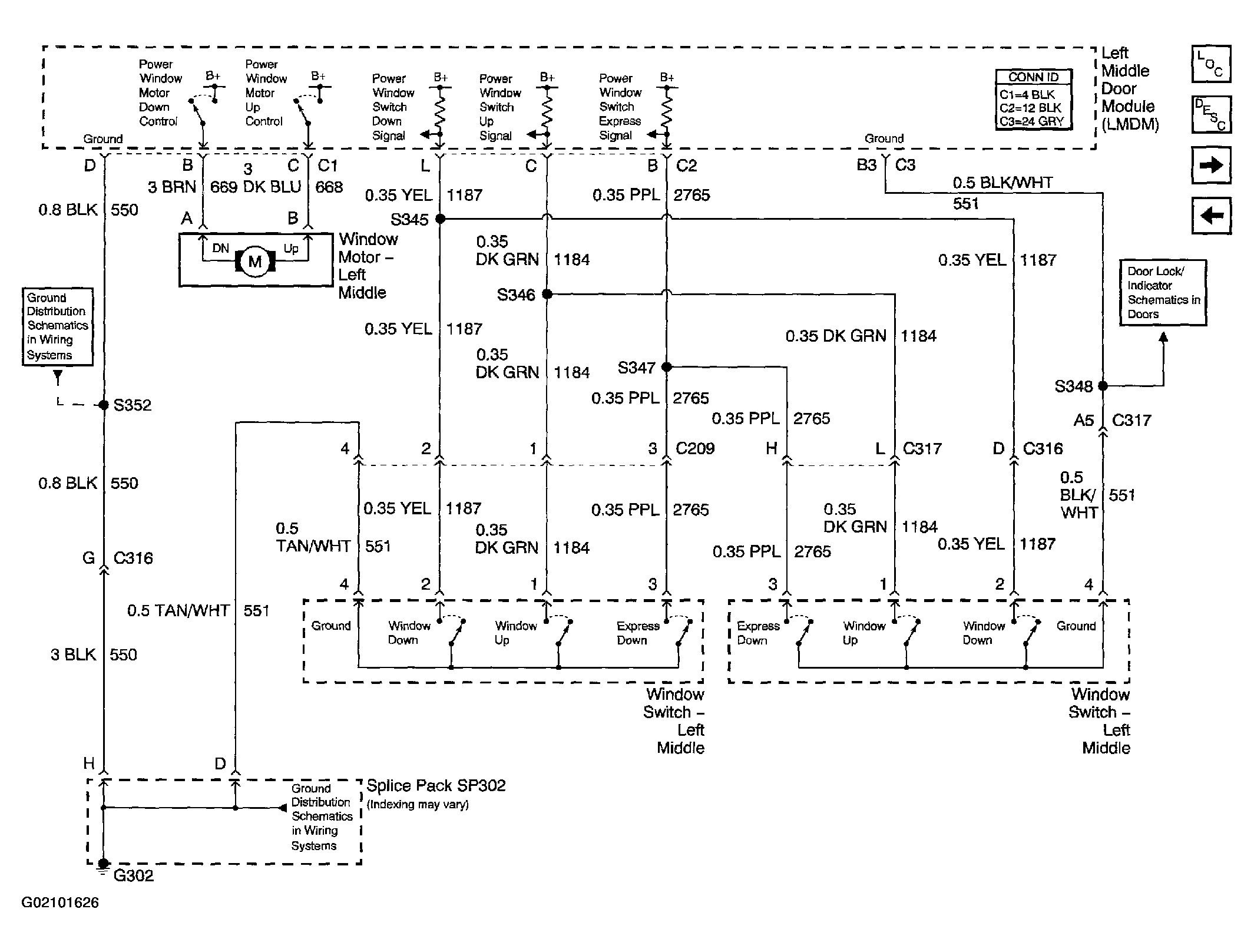

Fig 5: Power Window Schematics (Left Middle Door Power Window (w/V4U)) Diagram
Courtesy of GENERAL MOTORS CORP.

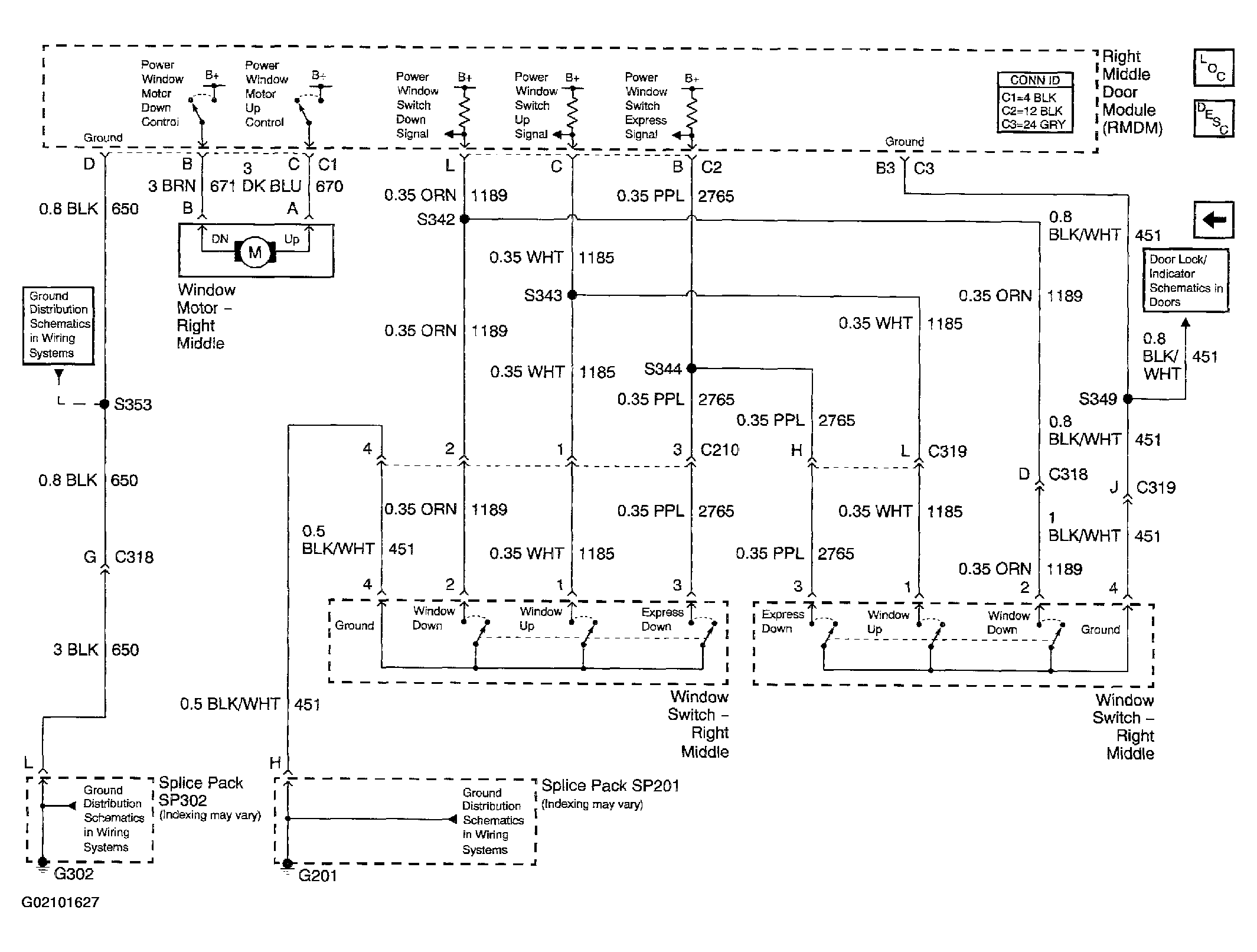

Fig 6: Power Window Schematics (Right Middle Door Power Window (w/V4U)) Diagram
Courtesy of GENERAL MOTORS CORP.
