Stationary Windows Component Views

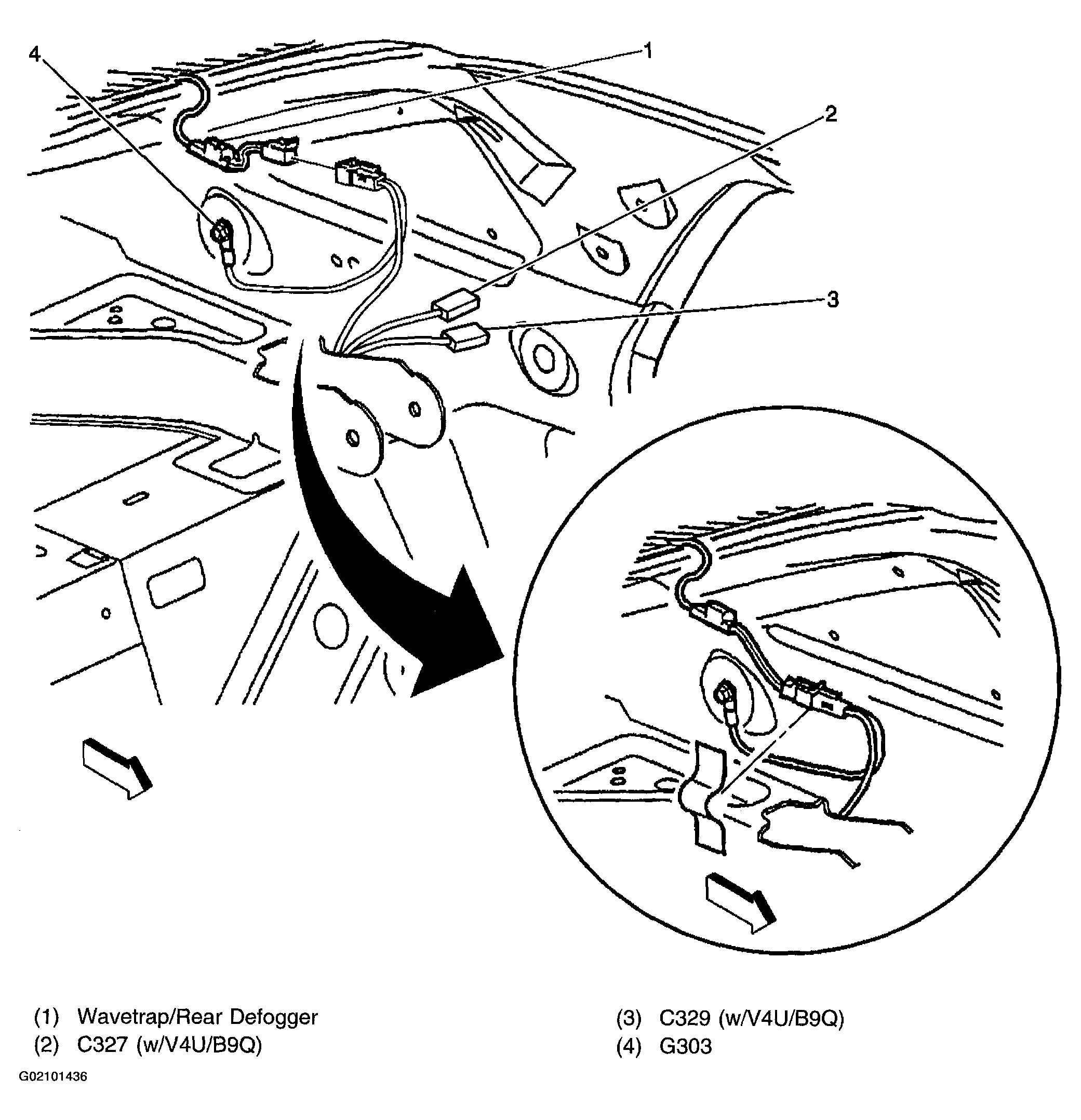

Fig 1: Identifying Left Rear Of Passenger Compartment, Above Rear Shelf Panel Components

Courtesy of GENERAL MOTORS CORP.

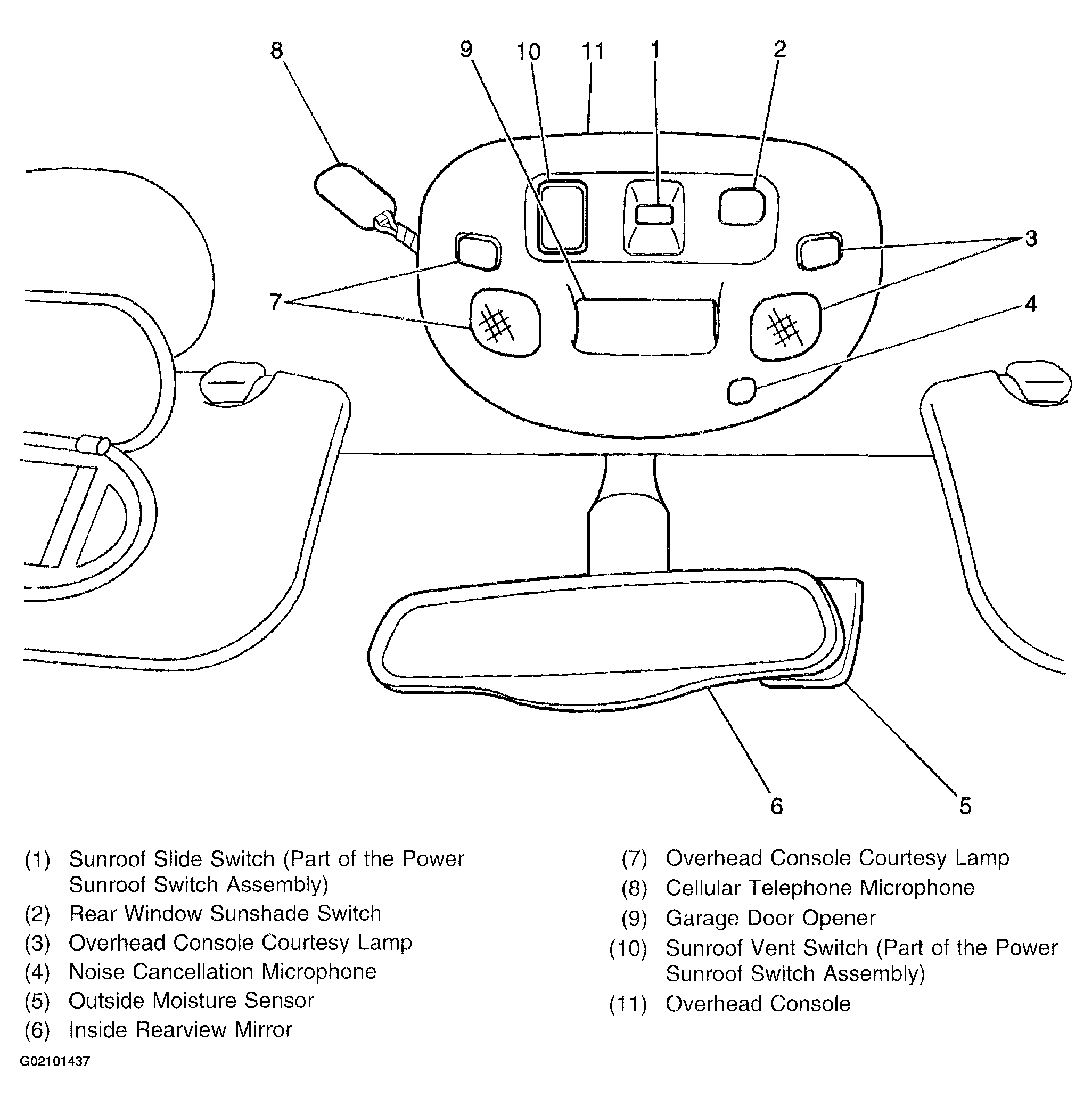

Fig 2: Identifying Passenger Compartment, Center Front Of Headliner Components

Courtesy of GENERAL MOTORS CORP.
