Stationary Windows Connector End Views

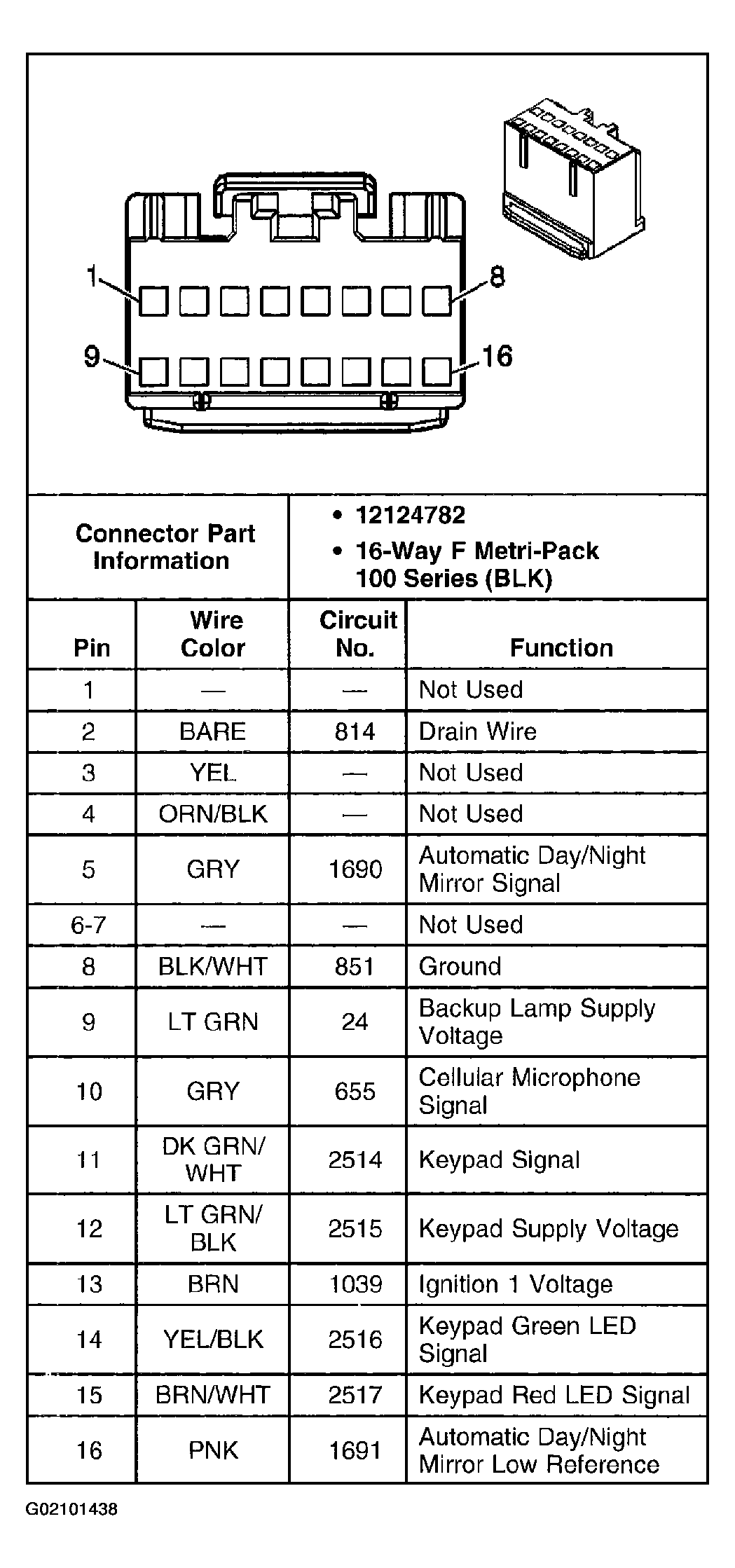

Fig 1: Identifying Inside Rearview Mirror Connectors

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Radio TV Antenna Signal Module Connectors

Courtesy of GENERAL MOTORS CORP.

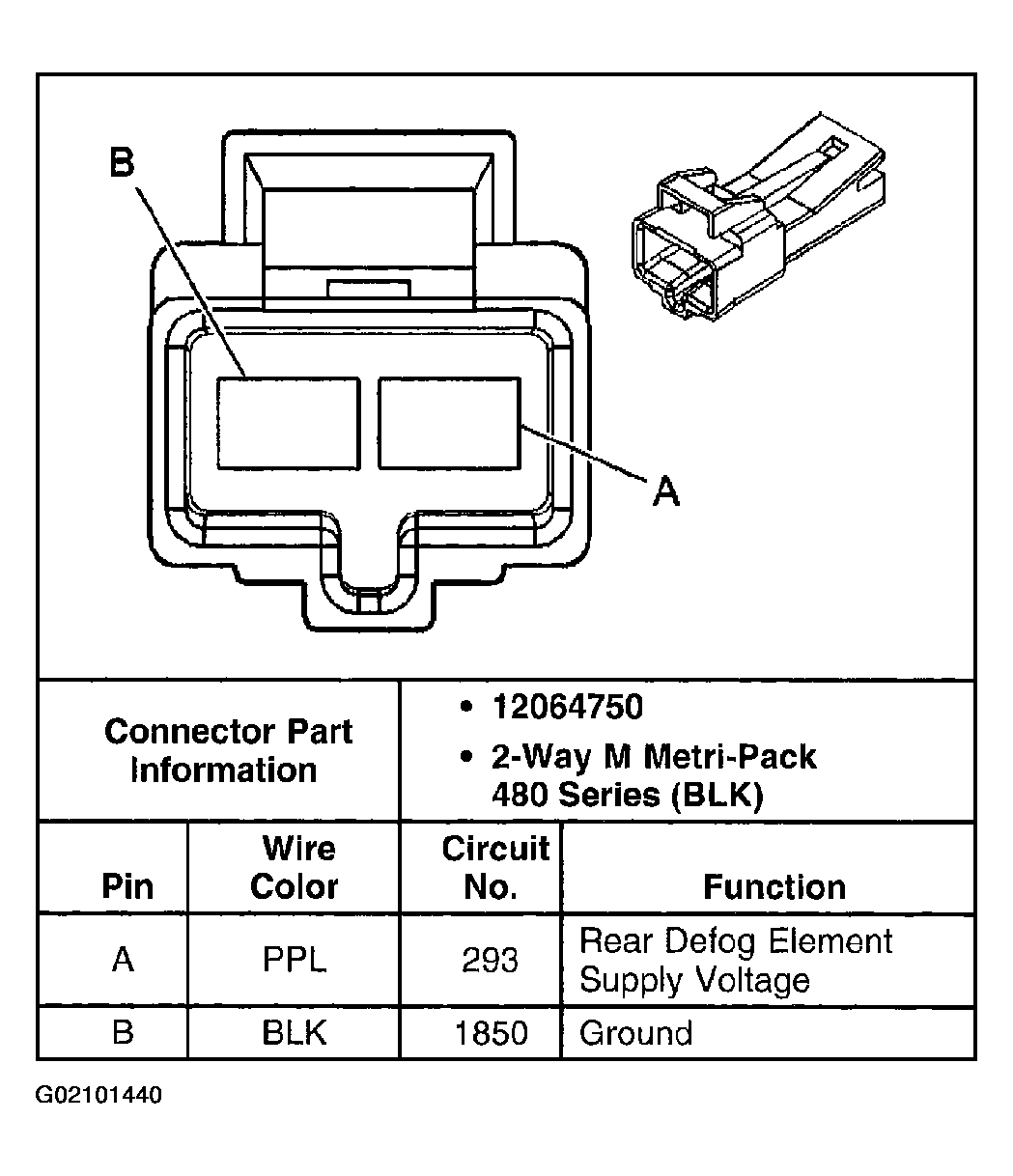

Fig 3: Identifying Rear Window Defogger Connectors

Courtesy of GENERAL MOTORS CORP.
