ABS Connector End Views

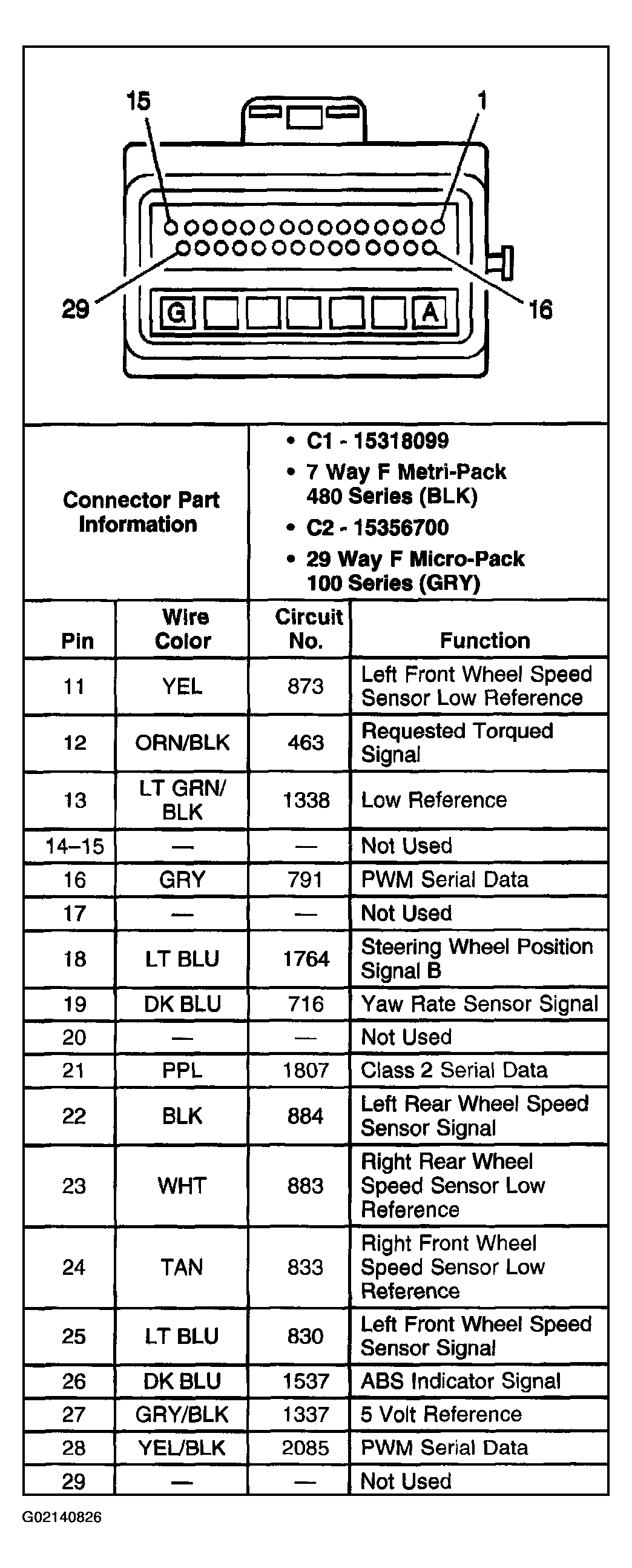

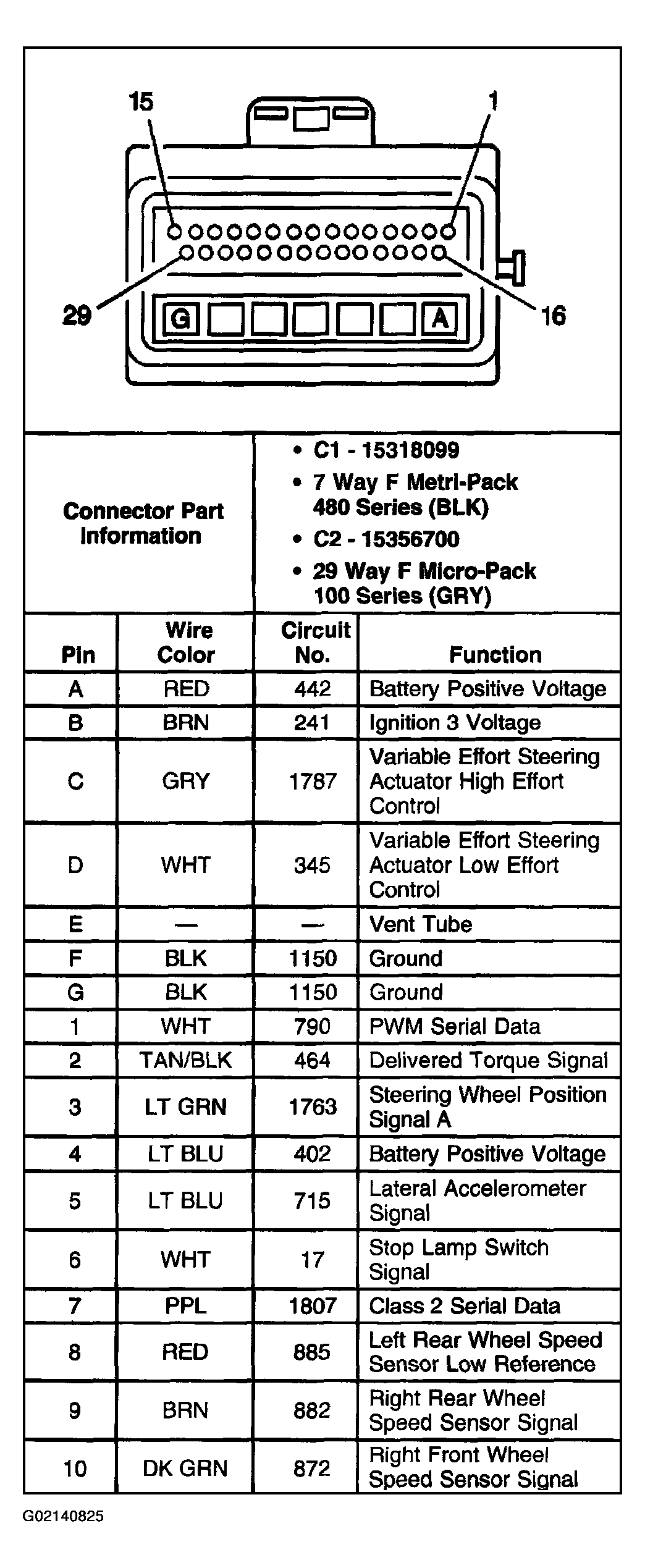

Fig 1: Identifying Electronic Brake Control Module (EBCM) Connector Terminal (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Electronic Brake Control Module (EBCM) Connector Terminal (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

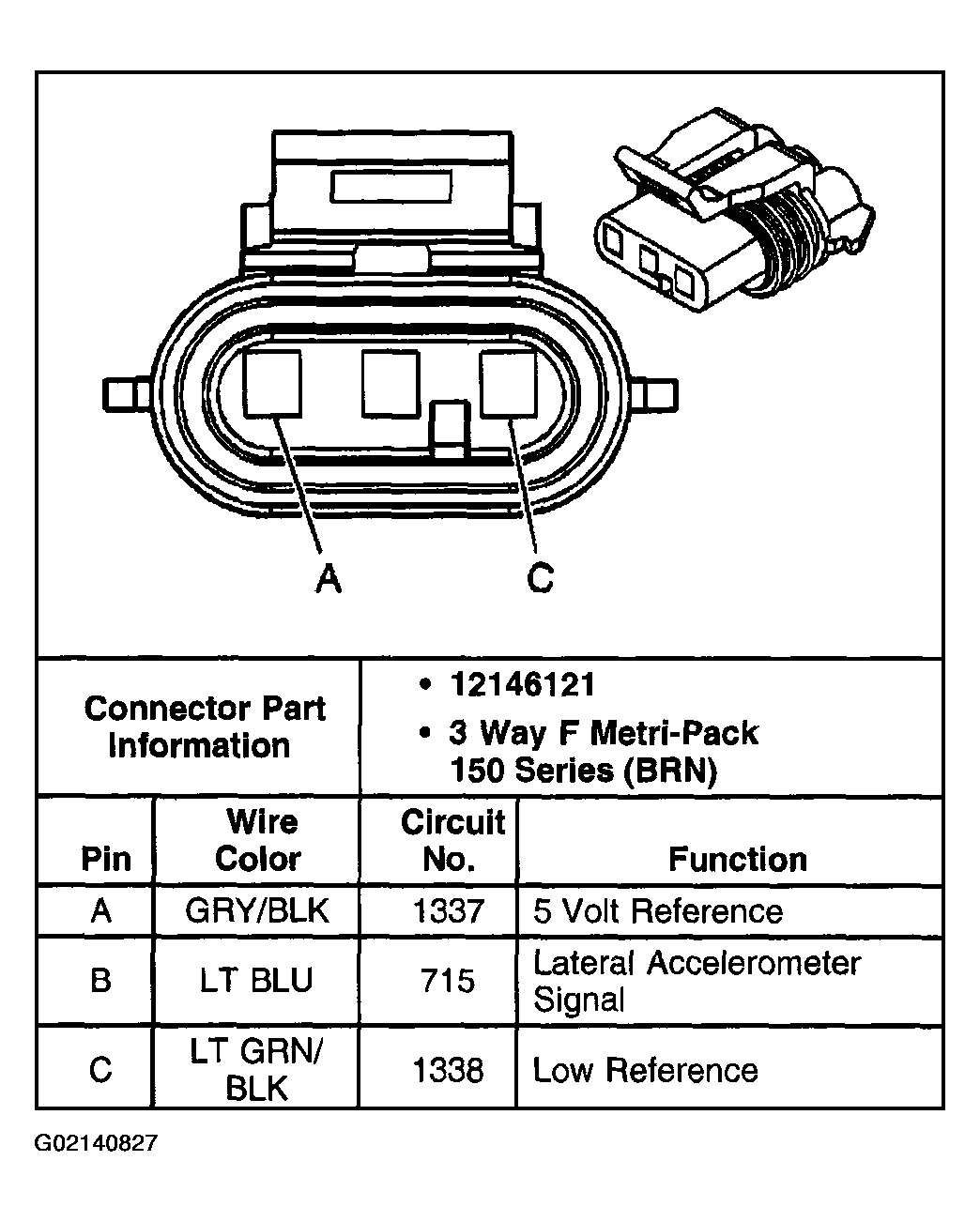

Fig 3: Identifying Lateral Accelerometer Sensor Connector Terminal

Courtesy of GENERAL MOTORS CORP.

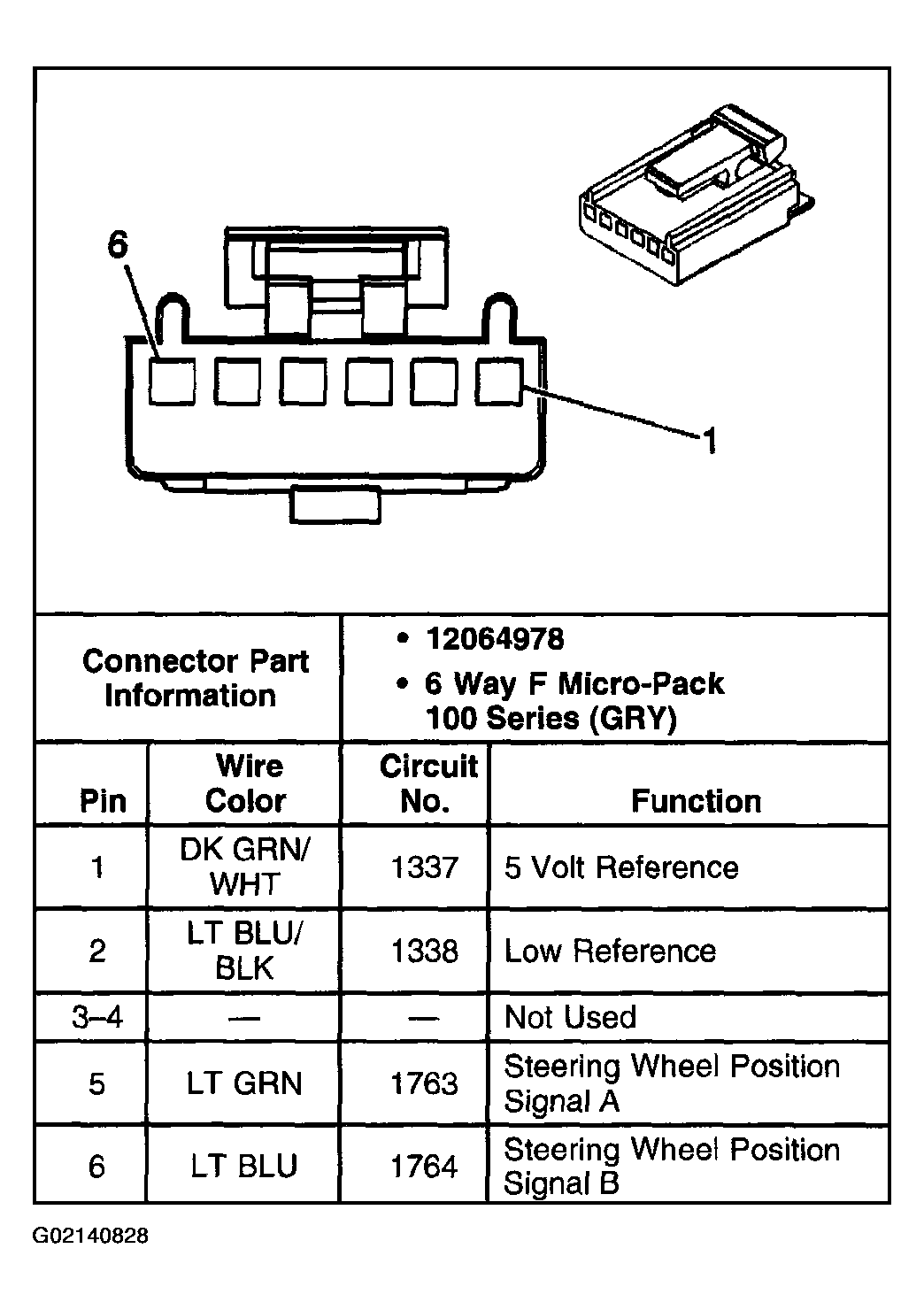

Fig 4: Identifying Steering Wheel Position Sensor (SWPS) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

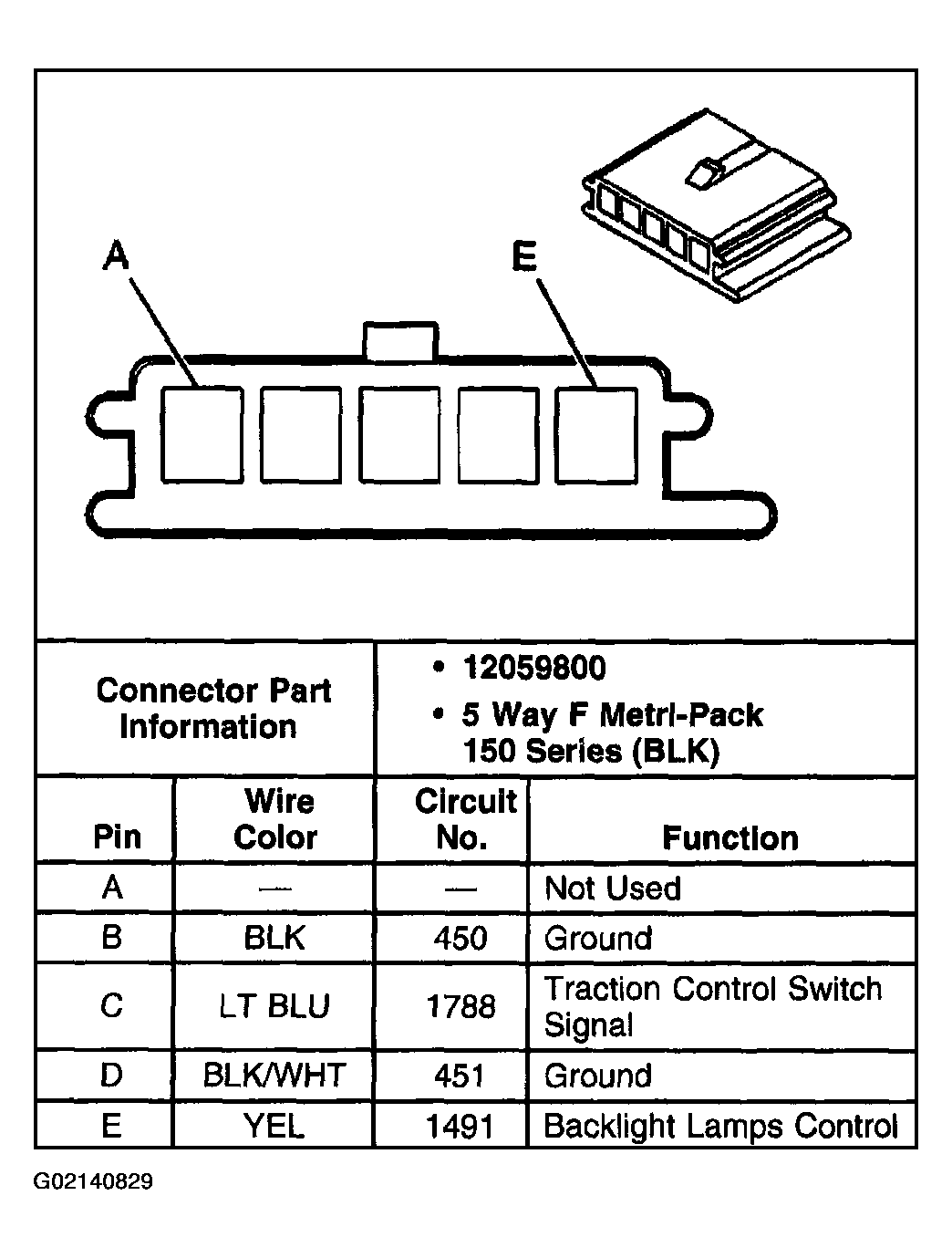

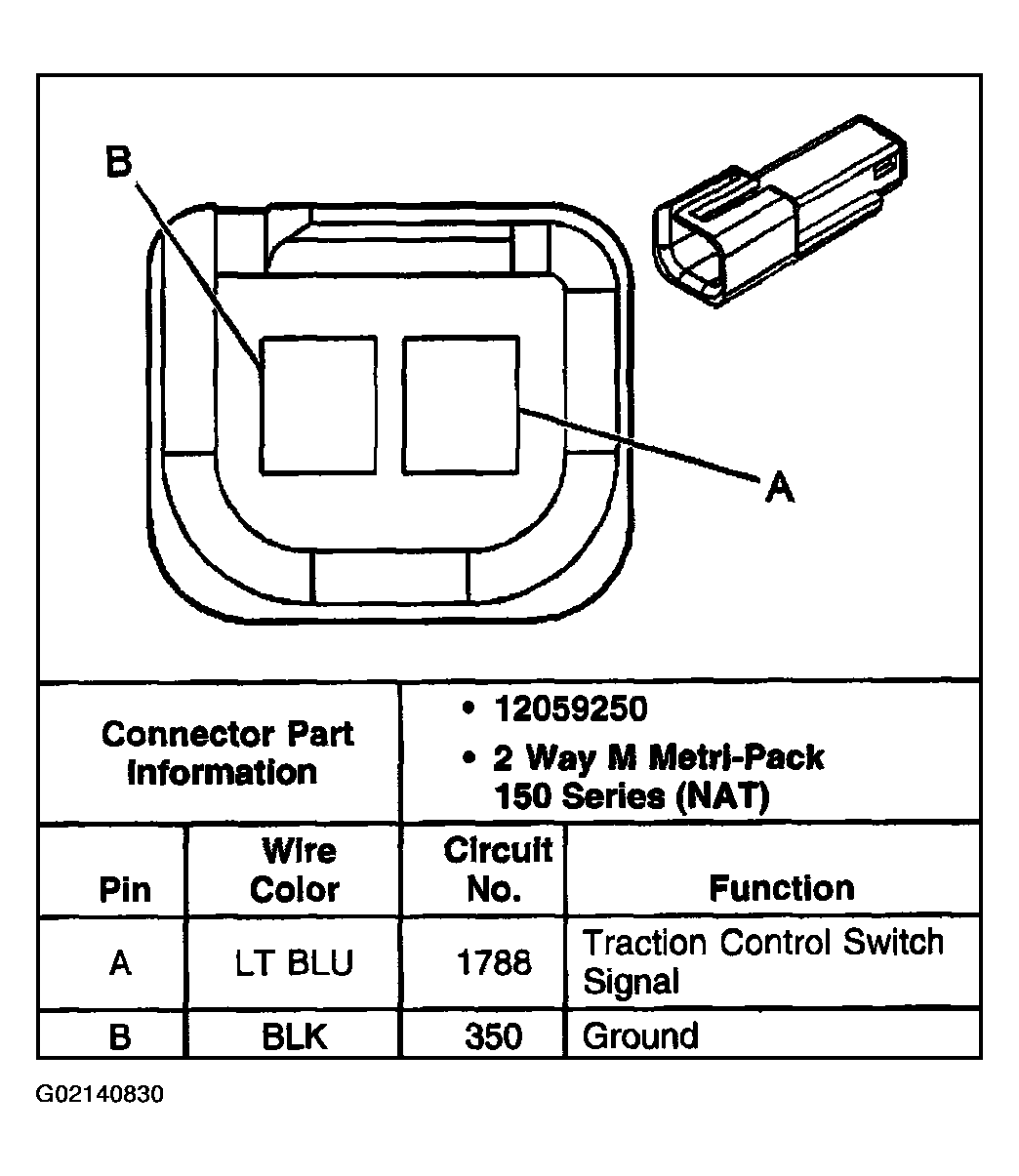

Fig 5: Identifying Traction Control Switch (w/F45) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Traction Control Switch (w/o F45) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

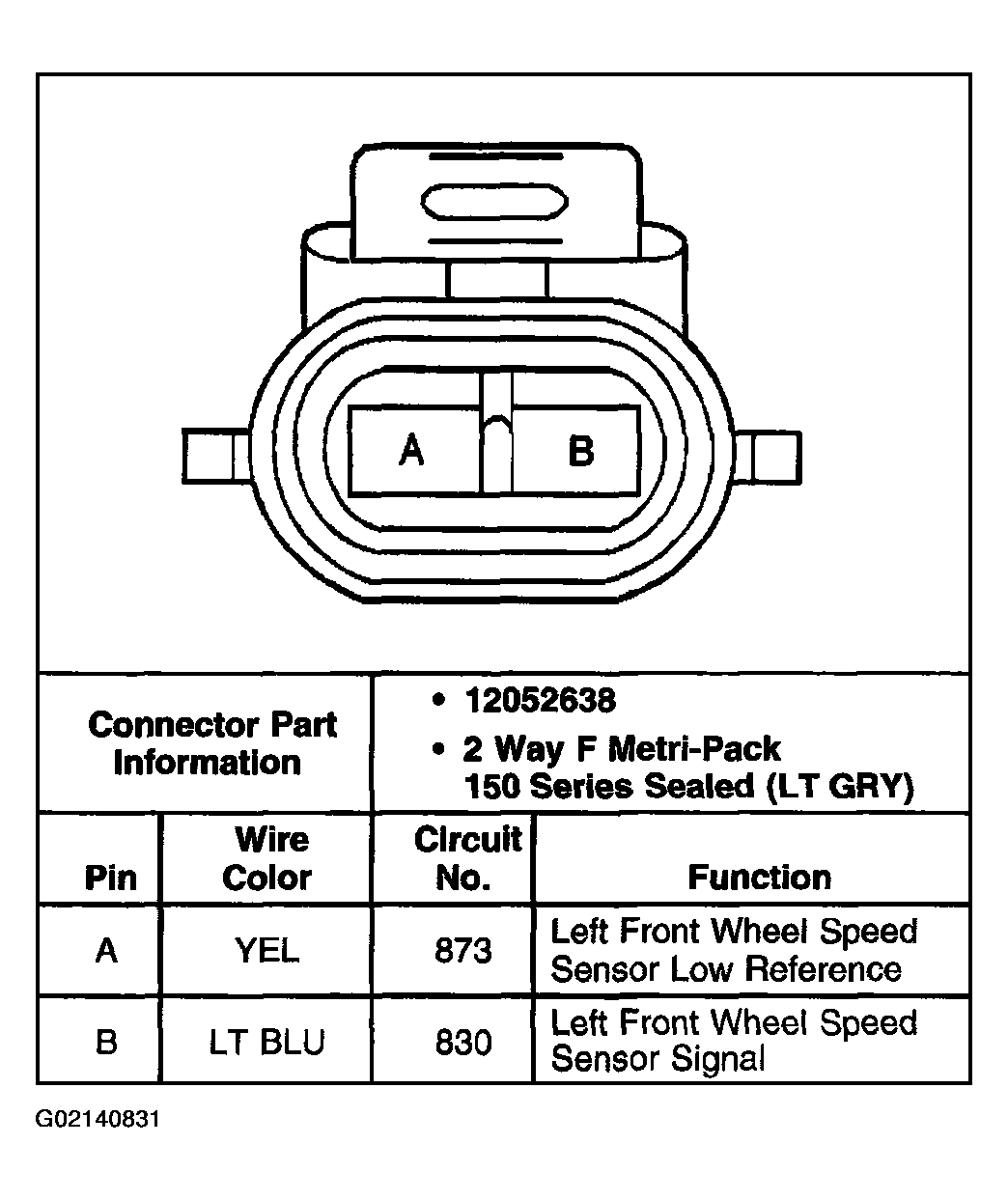

Fig 7: Identifying Wheel Speed Sensor (WSS) - LF Connector Terminal

Courtesy of GENERAL MOTORS CORP.

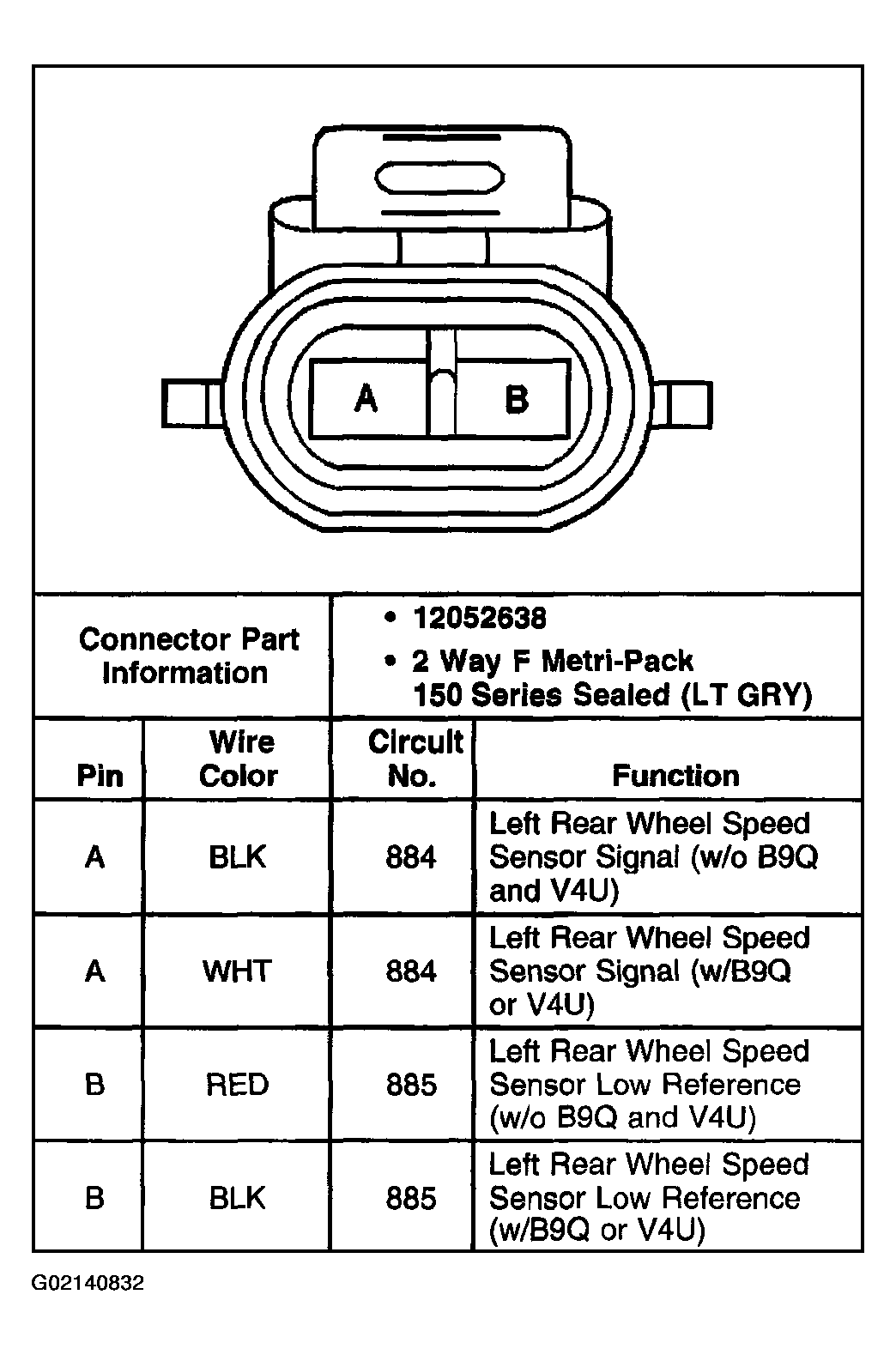

Fig 8: Identifying Wheel Speed Sensor (WSS) - LR Connector Terminal

Courtesy of GENERAL MOTORS CORP.

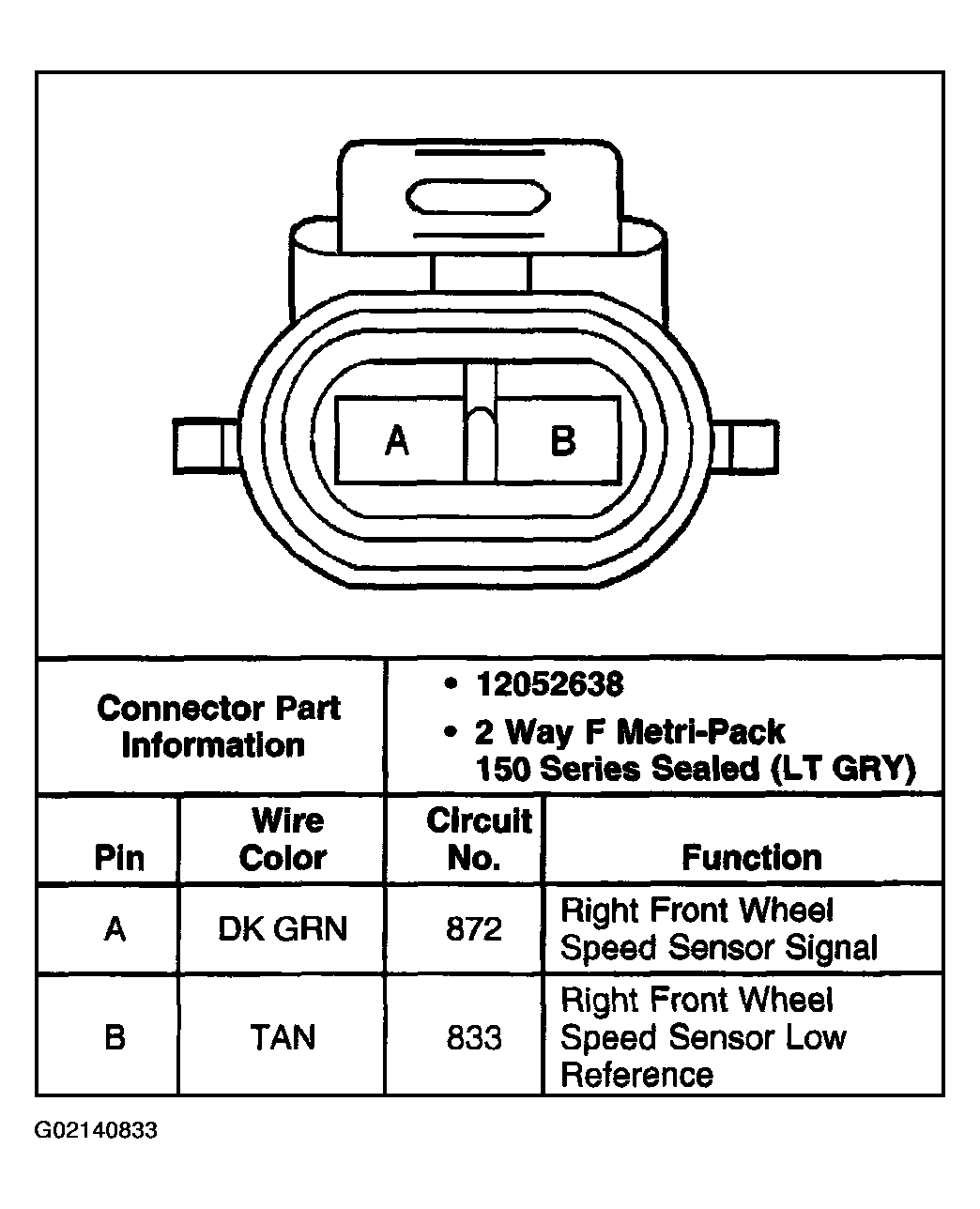

Fig 9: Identifying Wheel Speed Sensor (WSS) - RF Connector Terminal

Courtesy of GENERAL MOTORS CORP.

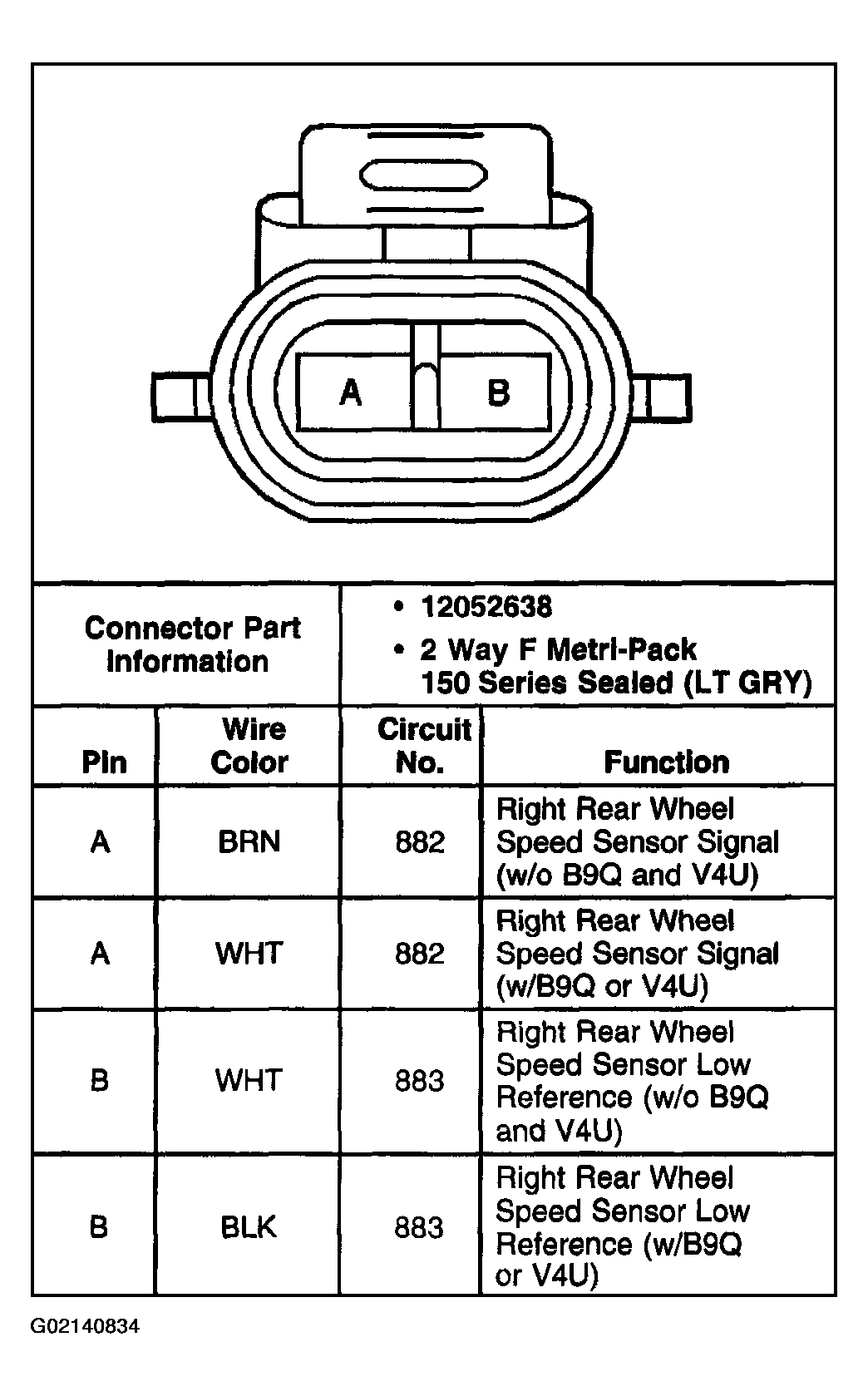

Fig 10: Identifying Wheel Speed Sensor (WSS) - RR Connector Terminal

Courtesy of GENERAL MOTORS CORP.

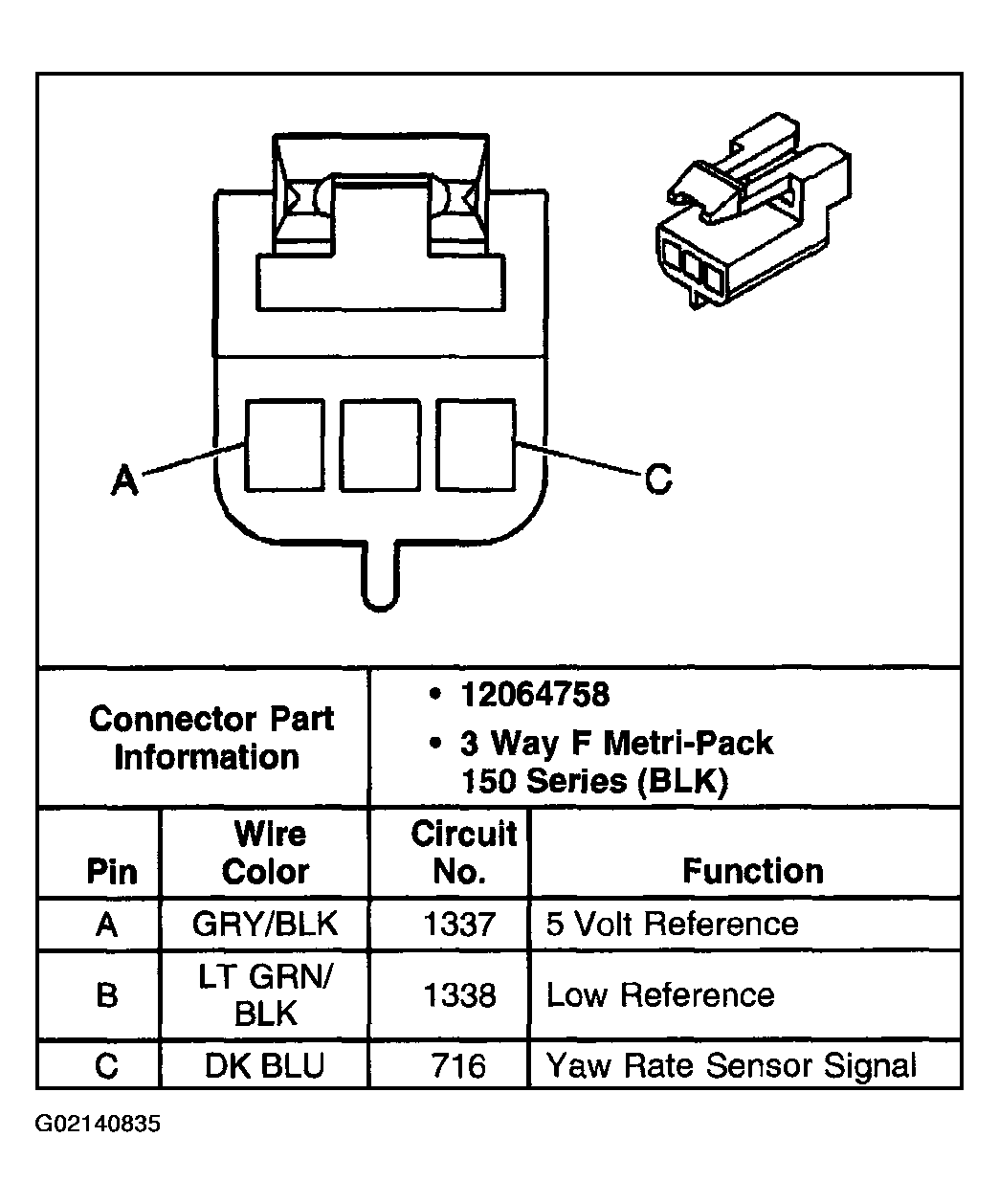

Fig 11: Identifying Yaw Rate Sensor Connector Terminal

Courtesy of GENERAL MOTORS CORP.
