Installation Procedure

  1. Install the traction control switch (2).
  2. Install the traction control switch electrical connector (3).
  3. Install the center console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS) in Instrument Panel, Gages and Console (1).

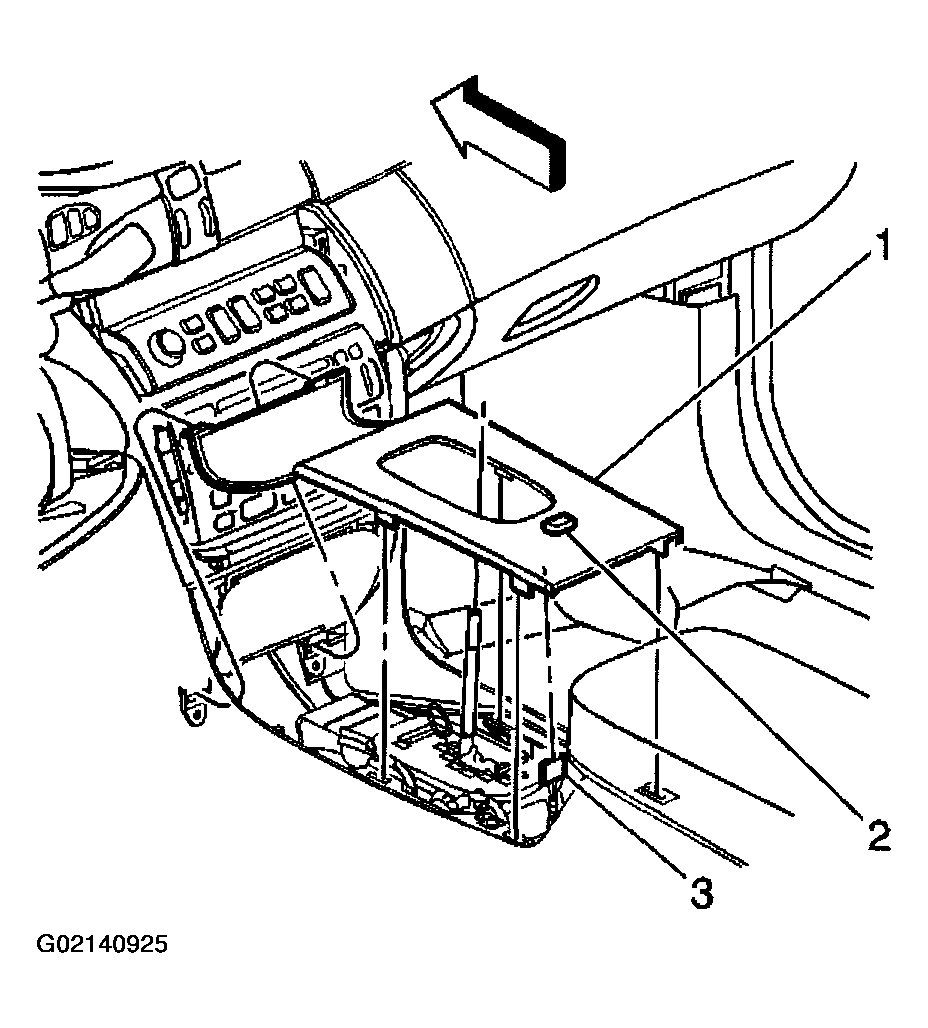

    Fig 1: Installing Traction Control Switch & Electrical Connector
    G02140925Courtesy of GENERAL MOTORS CORP.
