A/C Refrigerant Pressure Sensor Connector End View

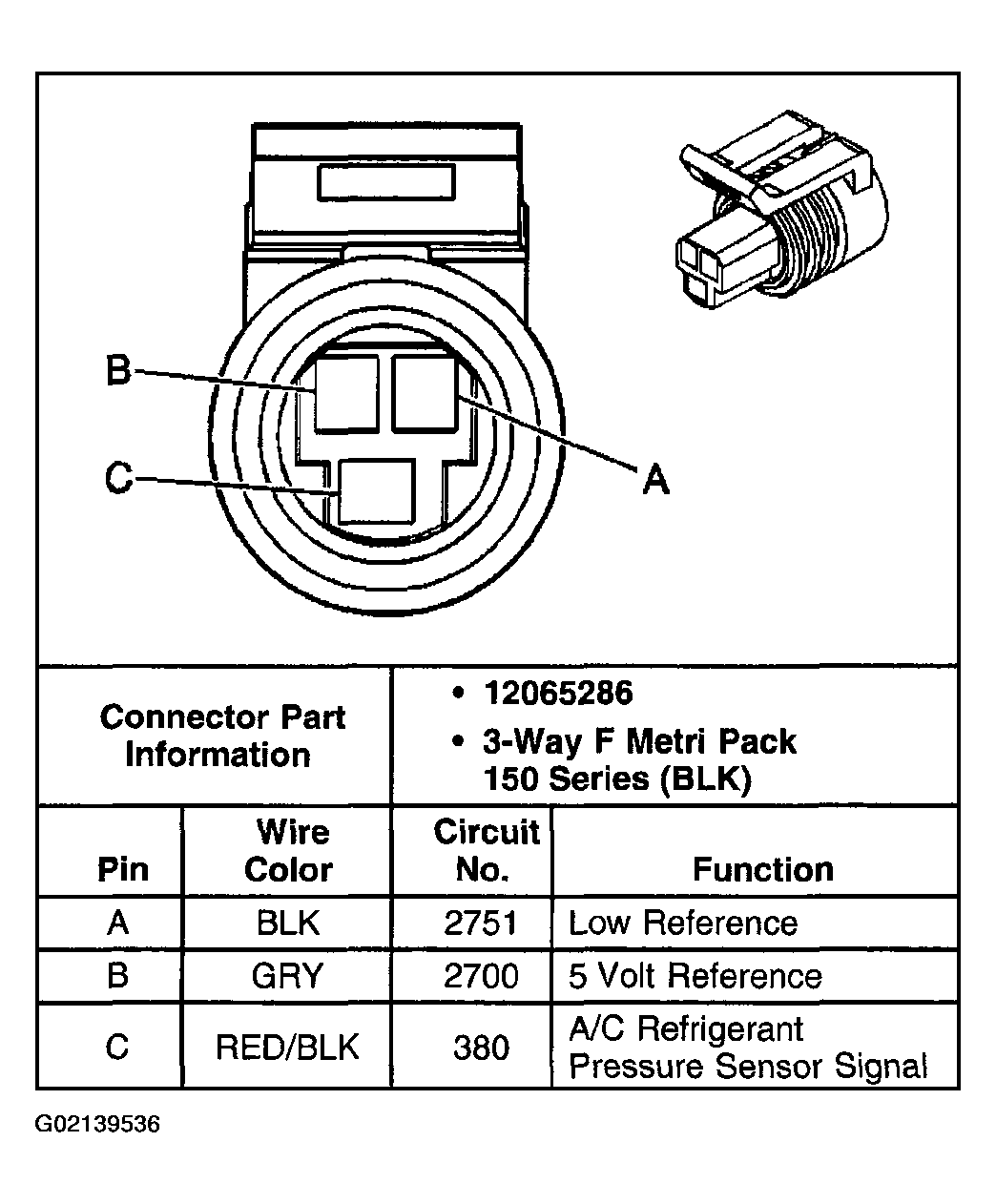

Fig 1: A/C Refrigerant Pressure Sensor
G02139536Courtesy of GENERAL MOTORS CORP.
