Automatic Level Control Compressor Connector End View
Automatic Level Control Compressor Connector End View

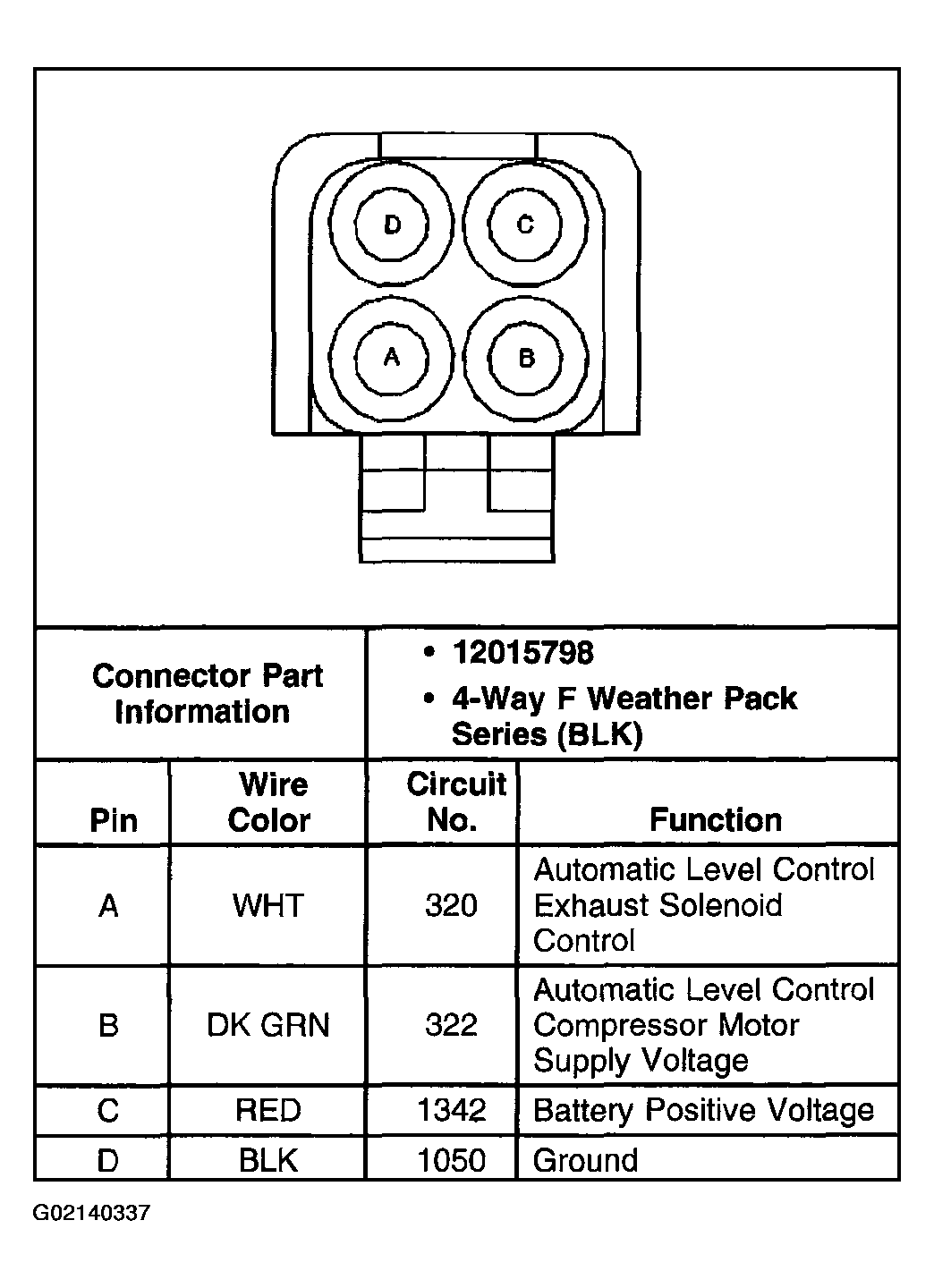

Fig 1: Automatic Level Control Compressor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
