Door Lock Relay Connector End View

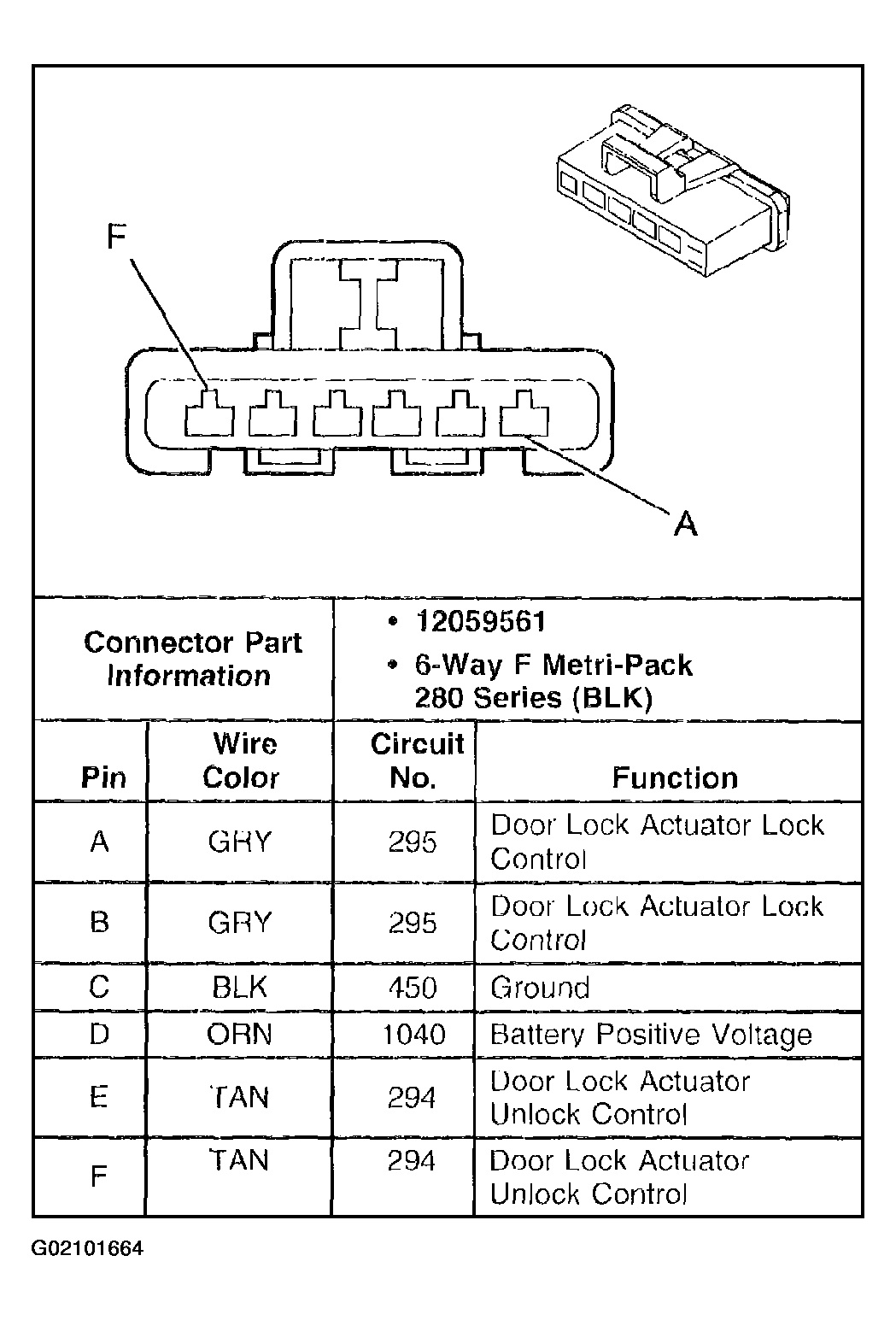

Fig 1: Door Lock Relay (w/B9Q)
G02101664Courtesy of GENERAL MOTORS CORP.
