Electronic Suspension Control Module Connector End View C2 (1 Of 2)

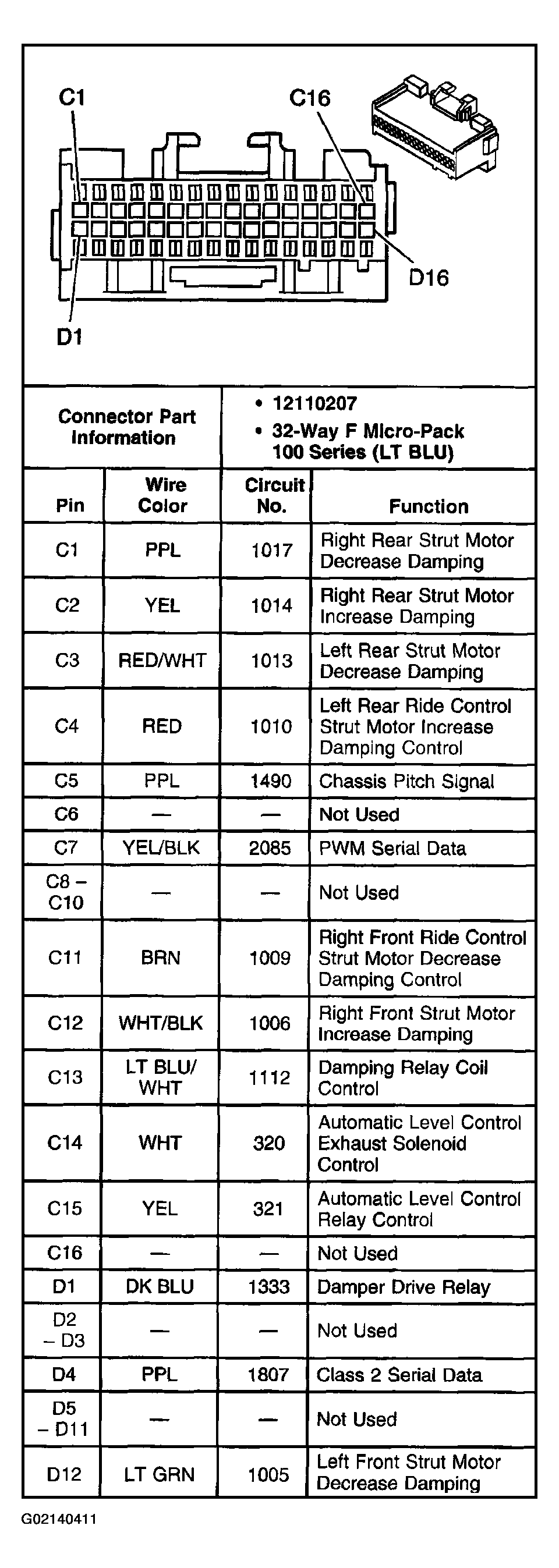

Fig 1: Electronic Suspension Control Module C2 (1 Of 2)
G02140411Courtesy of GENERAL MOTORS CORP.
