HVAC Control Module Connector End View - Auxiliary

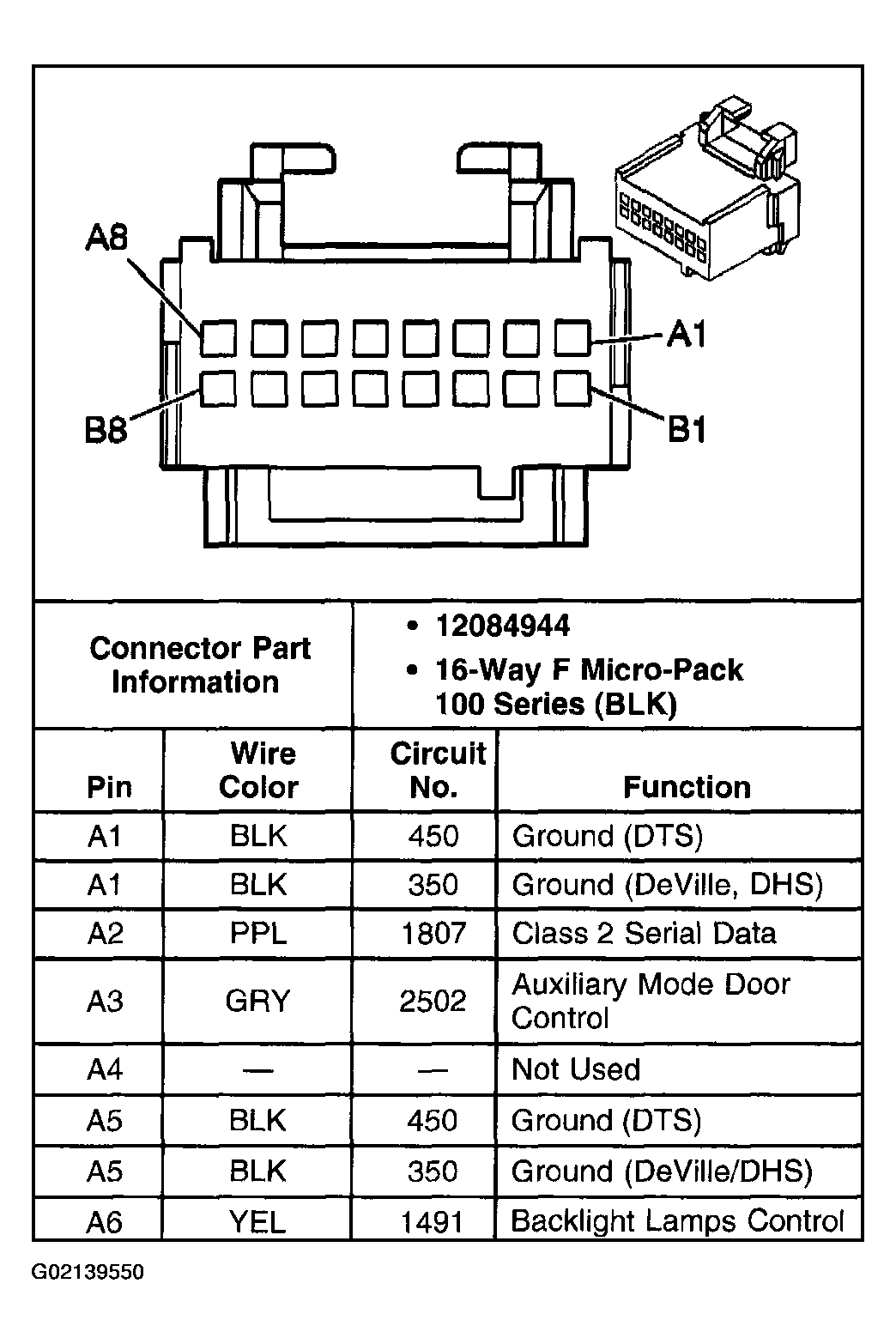

Fig 1: HVAC Control Module - Auxiliary
G02139550Courtesy of GENERAL MOTORS CORP.

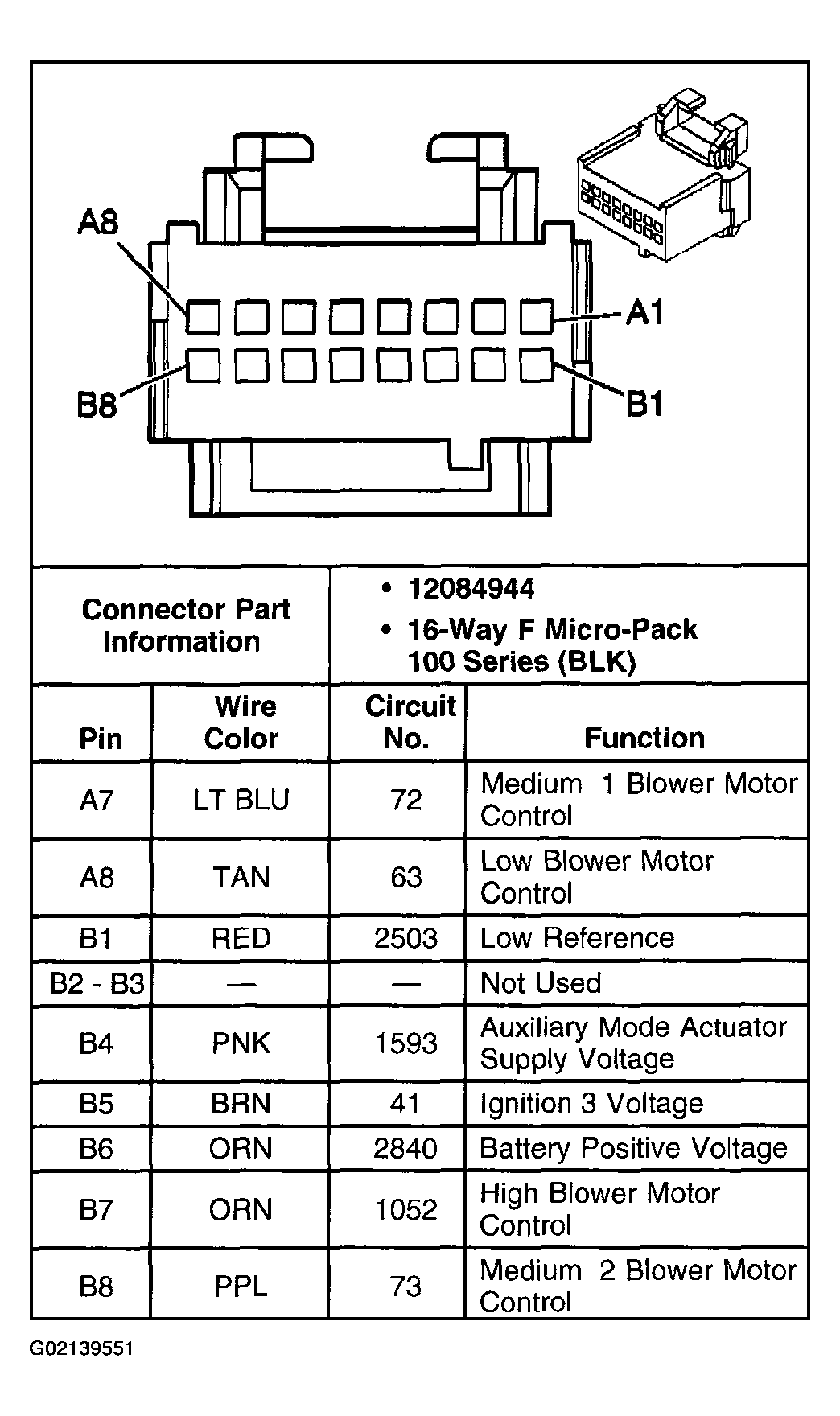

Fig 1: HVAC Control Module - Auxiliary
G02139551Courtesy of GENERAL MOTORS CORP.
