Heated Seat Module Connector End View - LR C1

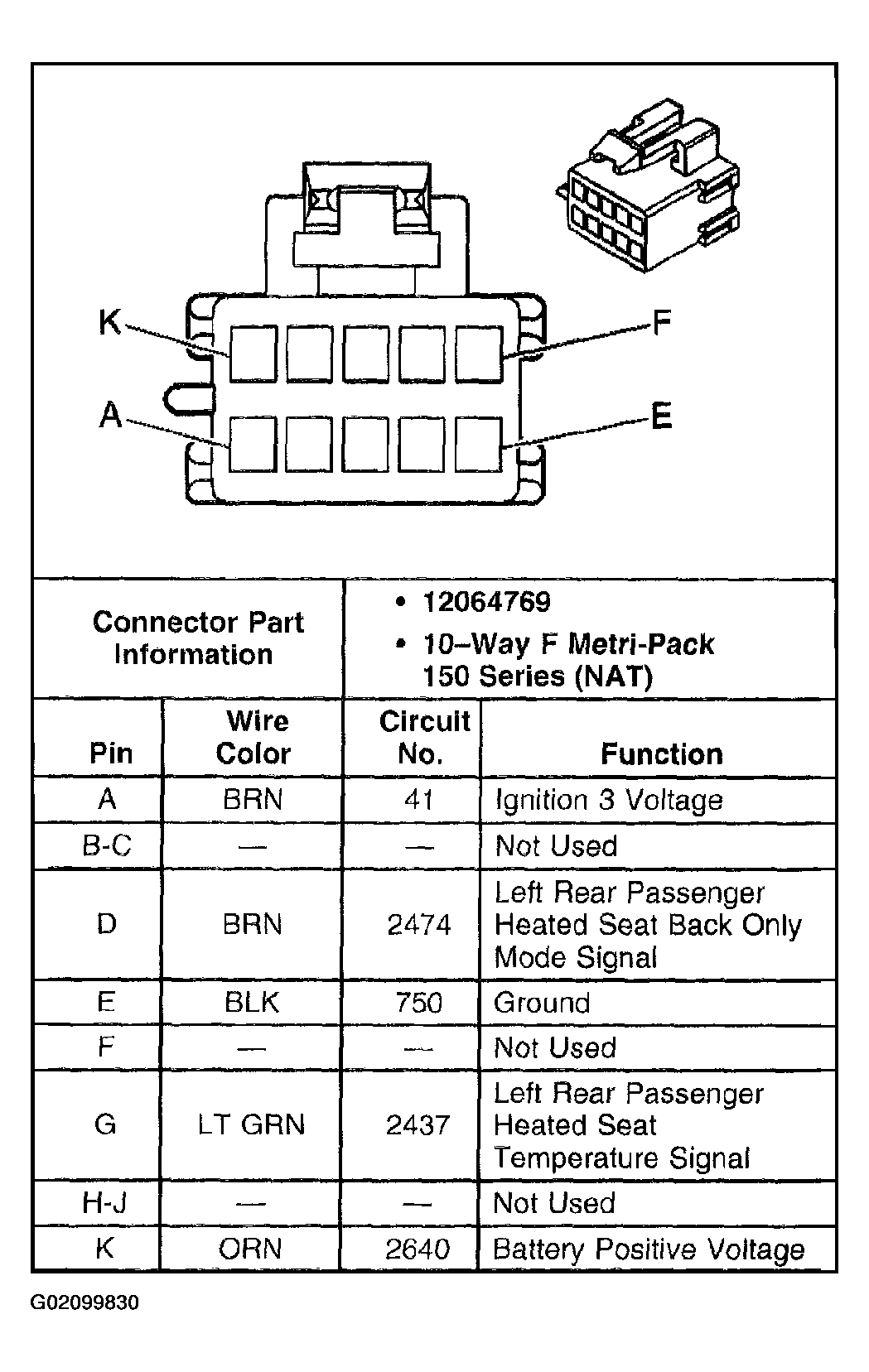

Fig 1: Heated Seat Module - LR C1
G02099830Courtesy of GENERAL MOTORS CORP.
