Heated Seat Module Connector End View - LR C2

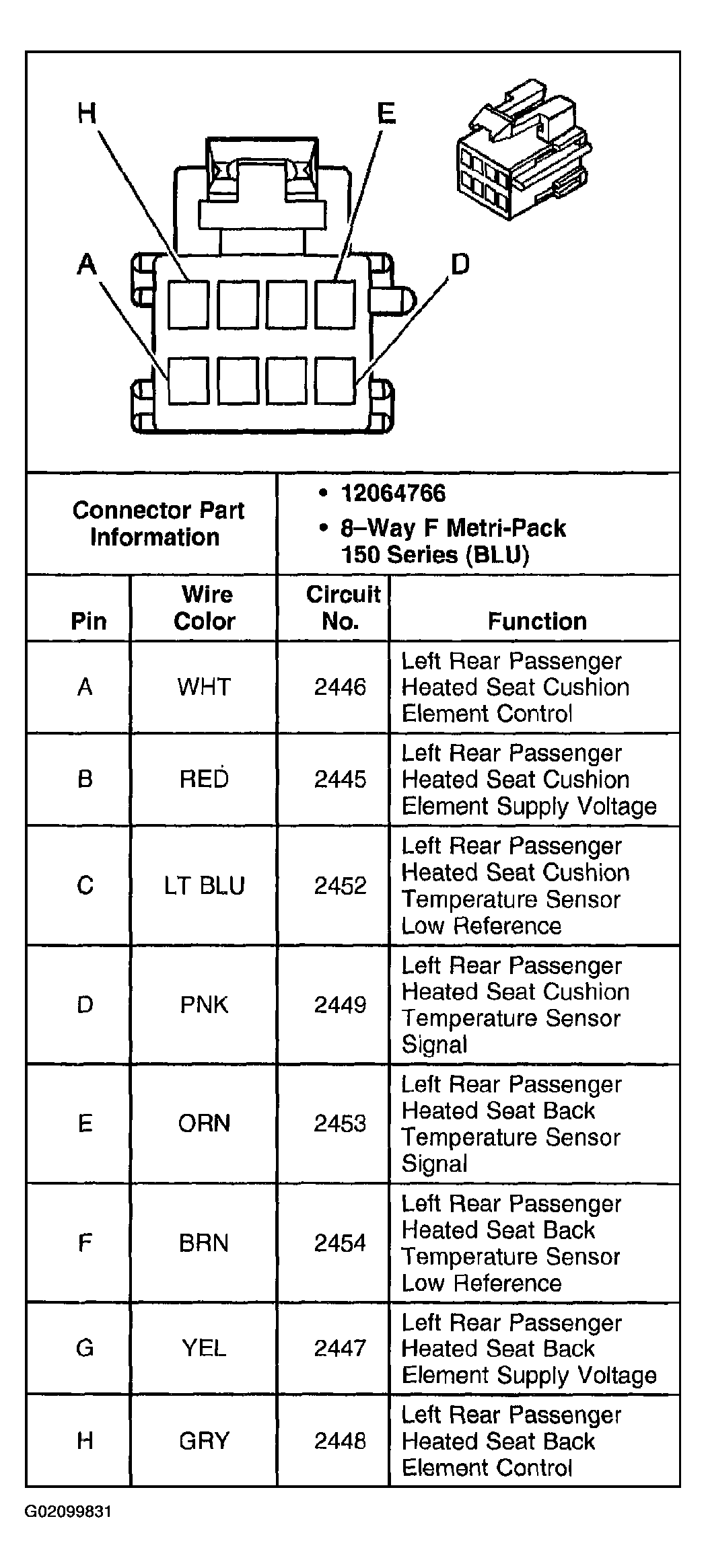

Fig 1: Heated Seat Module - LR C2
G02099831Courtesy of GENERAL MOTORS CORP.
