LR Suspension Position Sensor Connector End View

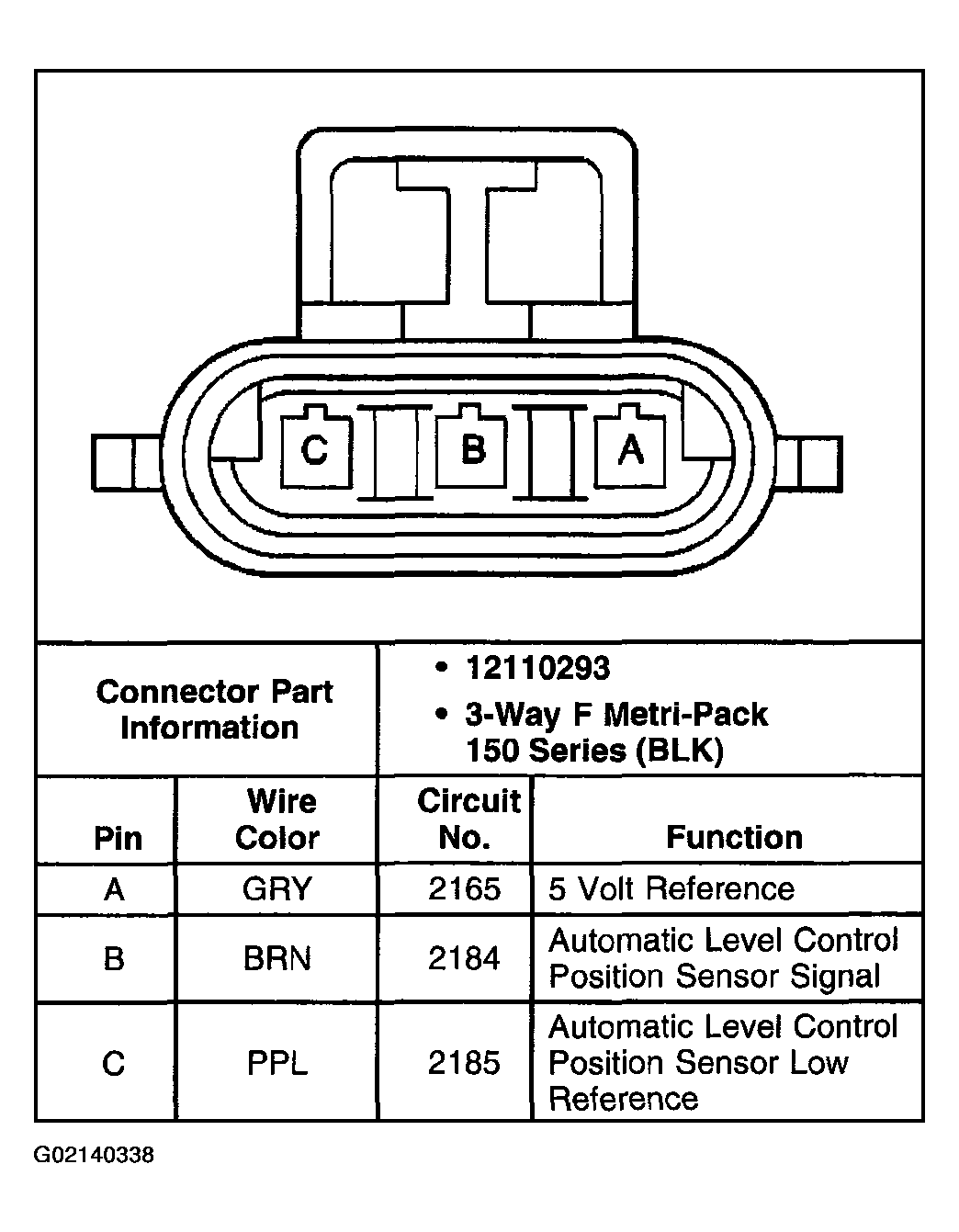

Fig 1: LR Suspension Position Sensor (W/O F45)
G02140338Courtesy of GENERAL MOTORS CORP.
