Memory Seat Module (MSM) Connector End View C3

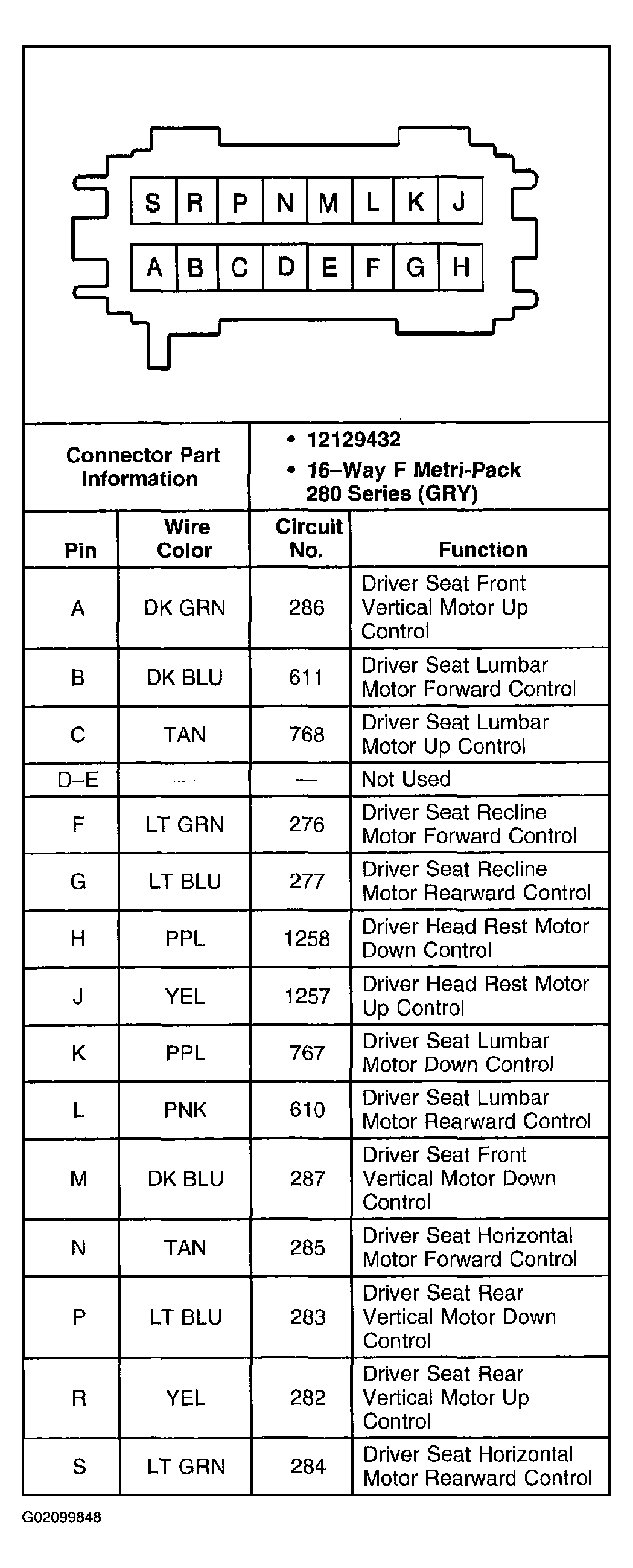

Fig 1: Memory Seat Module (MSM) C3 (w/AC9)

Courtesy of GENERAL MOTORS CORP.

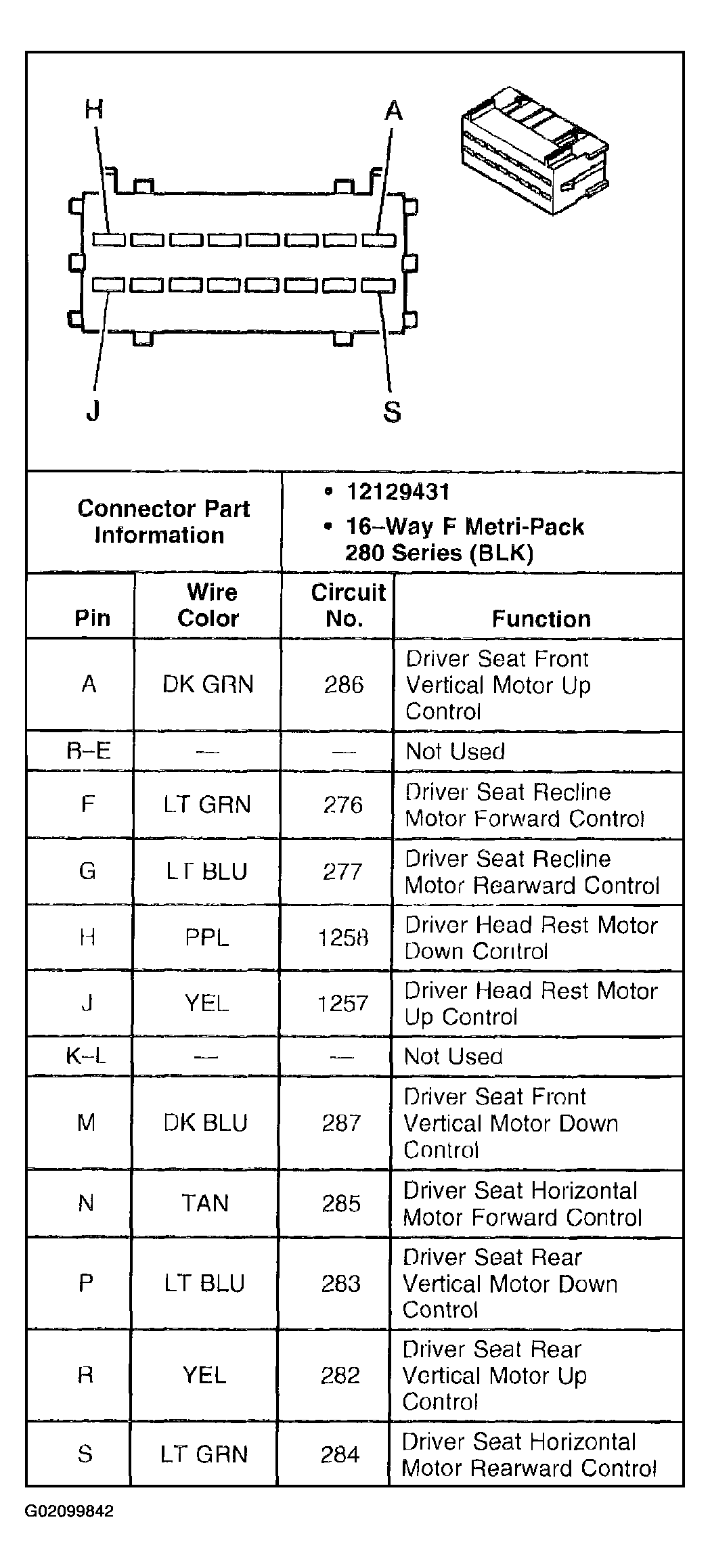

Fig 1: Memory Seat Module (MSM) C3 (AL2)

Courtesy of GENERAL MOTORS CORP.

Fig 1: Memory Seat Module (MSM) C3 (AM3)

Courtesy of GENERAL MOTORS CORP.
