Object Sensor Connector End View - RR Middle

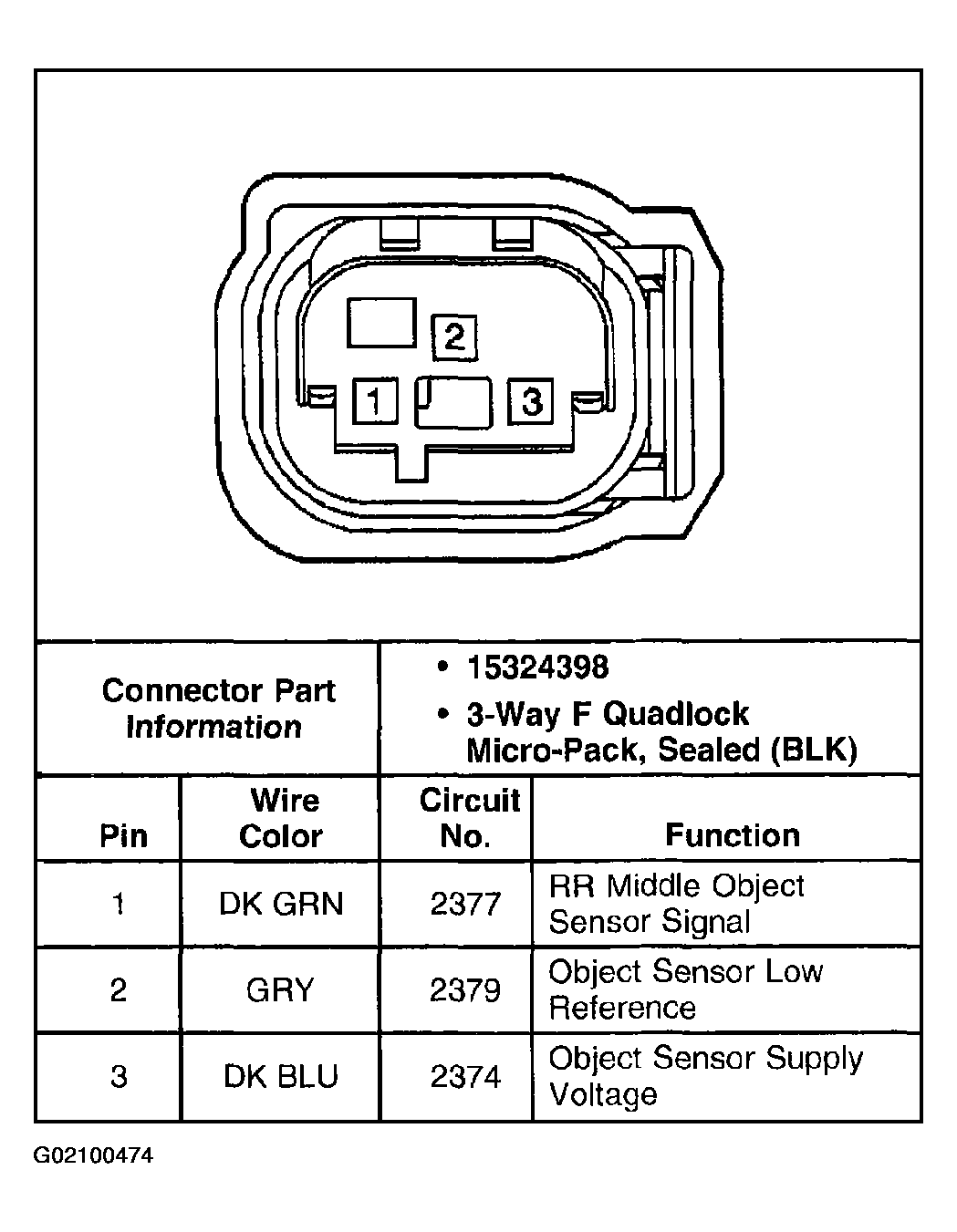

Fig 1: Object Sensor - RR Middle
G02100474Courtesy of GENERAL MOTORS CORP.
