Steering Column Module Connector End View C4 - Tilt/Telescope Switch

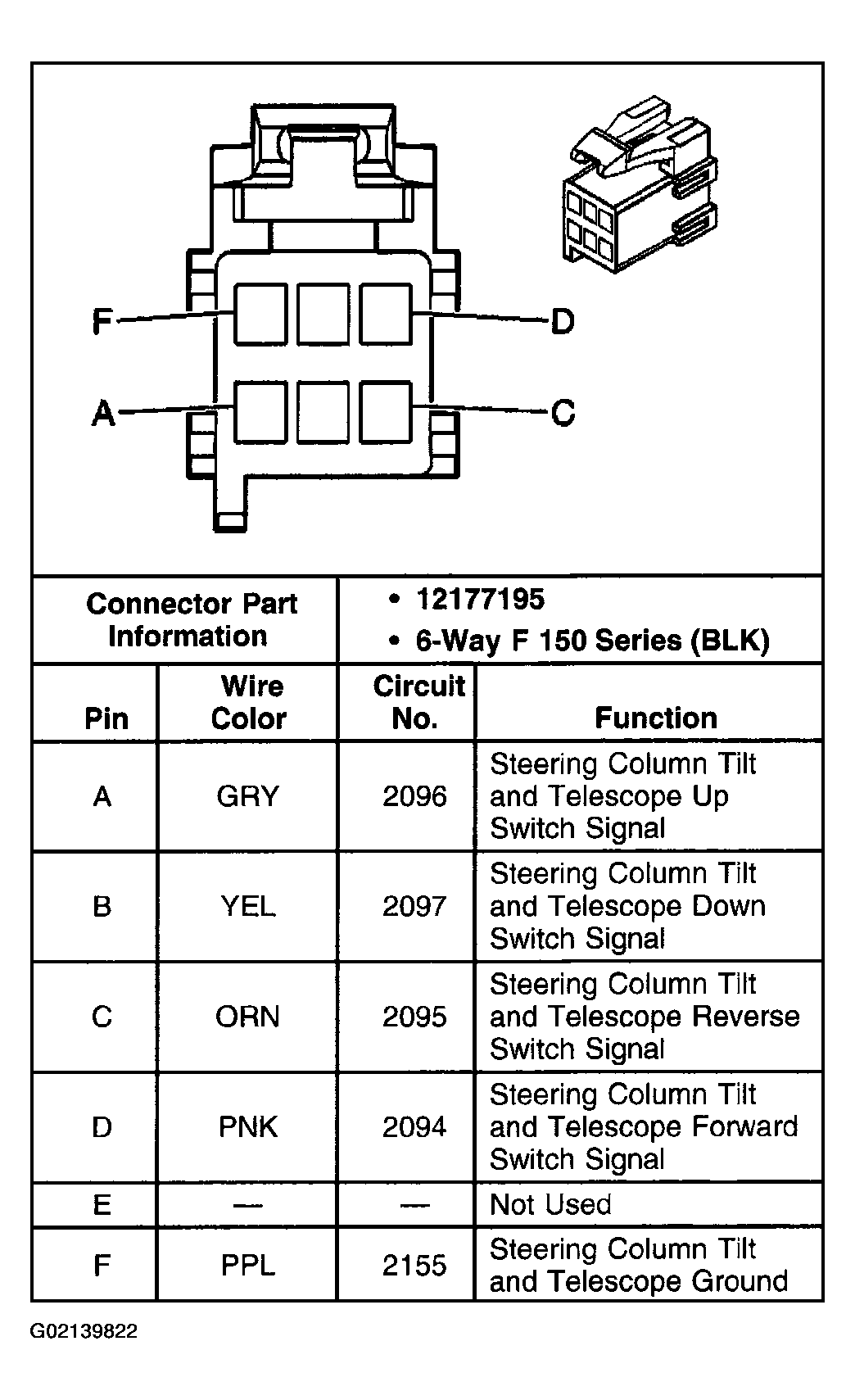

Fig 1: Steering Column Module C4 - Tilt/Telescope Switch
G02139822Courtesy of GENERAL MOTORS CORP.
