Sunroof Module Connector End View C1

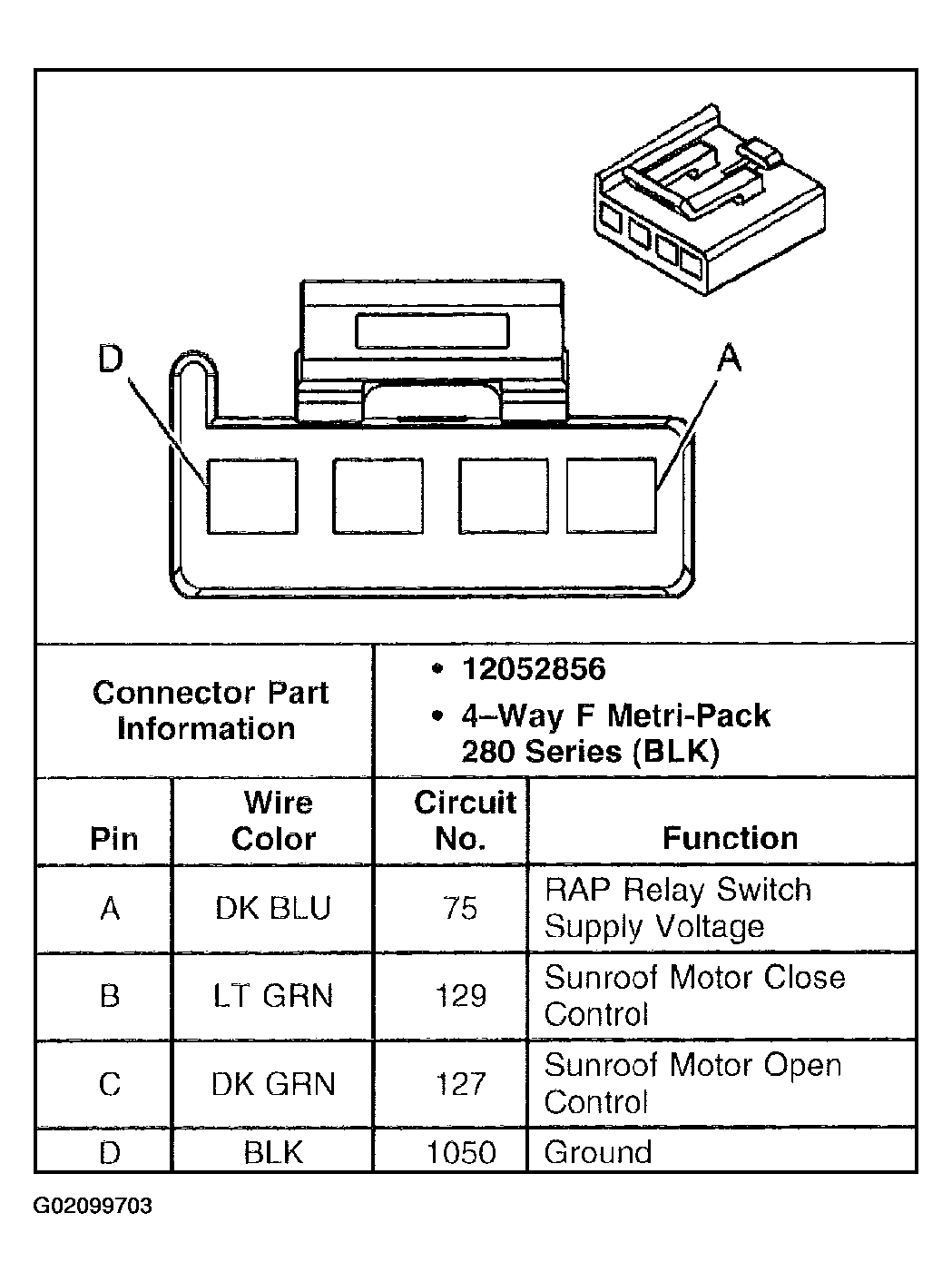

Fig 1: Sunroof Module C1
G02099703Courtesy of GENERAL MOTORS CORP.
