Home › Cadillac › 2003 › DeVille Base › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Sunshade Module Connector End View

Sunshade Module Connector End View

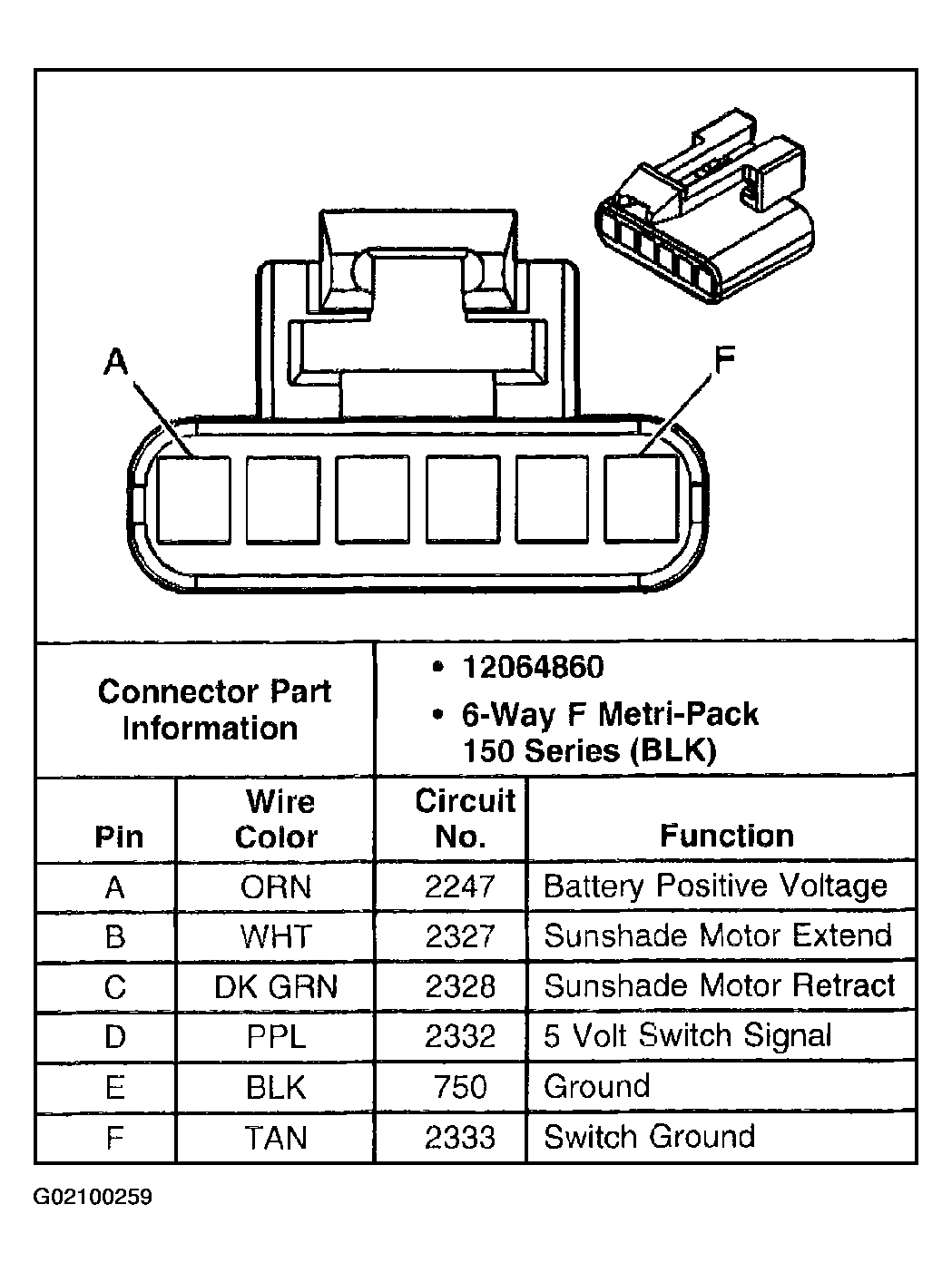

Fig 1: Sunshade Module
G02100259Courtesy of GENERAL MOTORS CORP.
