Sunshade Switch Connector End View
Sunshade Switch Connector End View

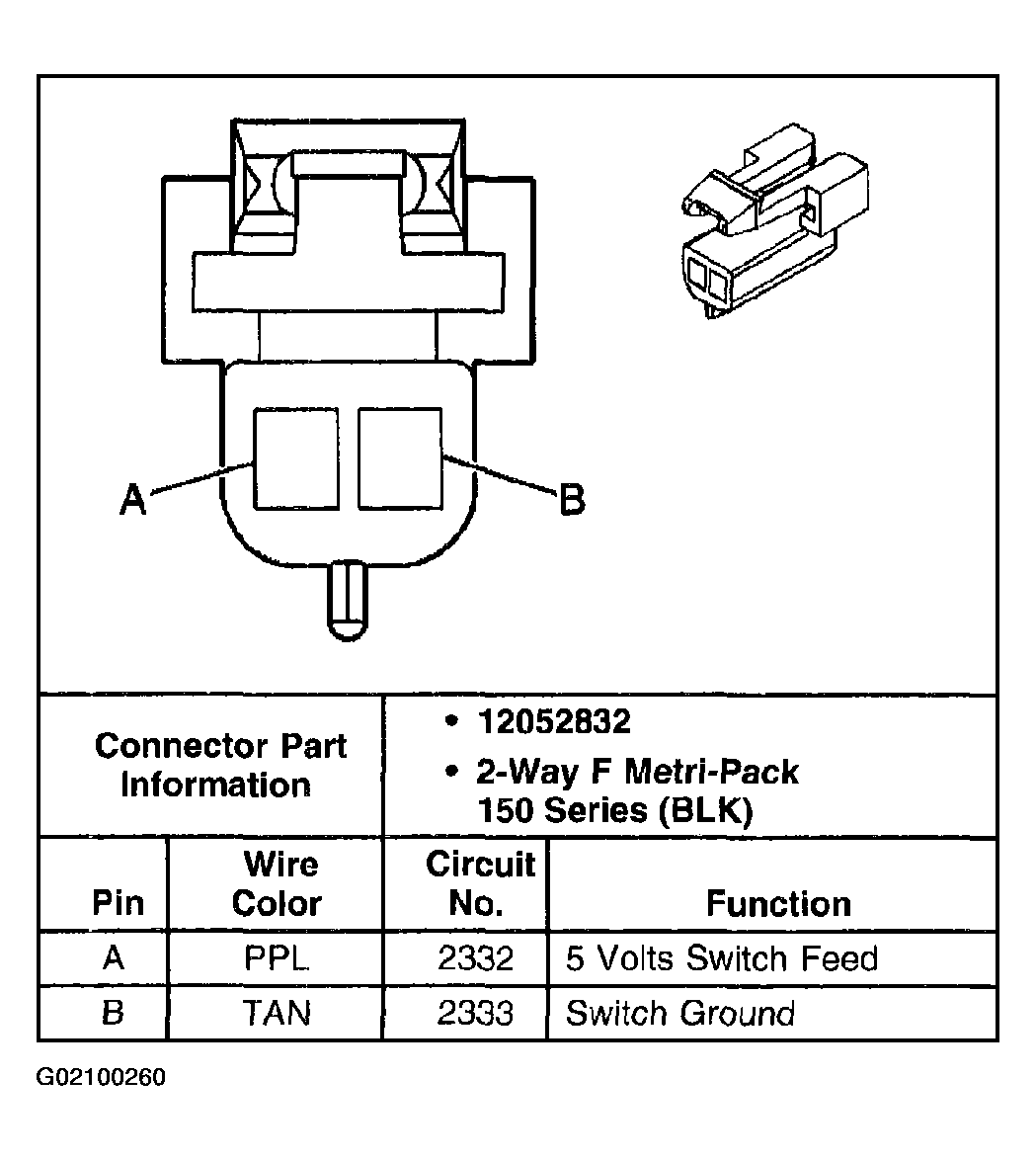

Fig 1: Sunshade Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
