A/C Compressor Clutch Connector End View
A/C Compressor Clutch Connector End View

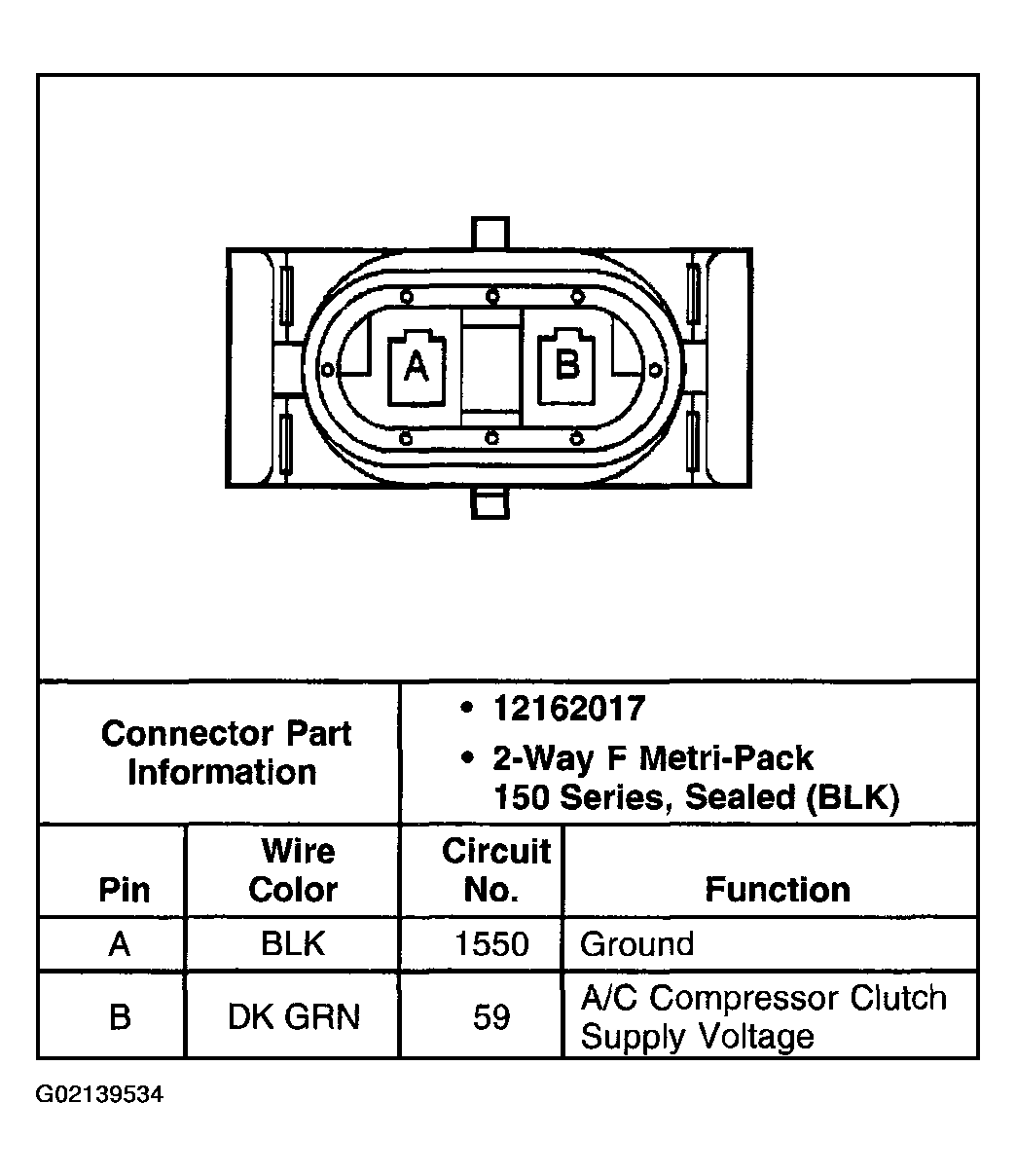

Fig 1: A/C Compressor Clutch
Courtesy of GENERAL MOTORS CORP.

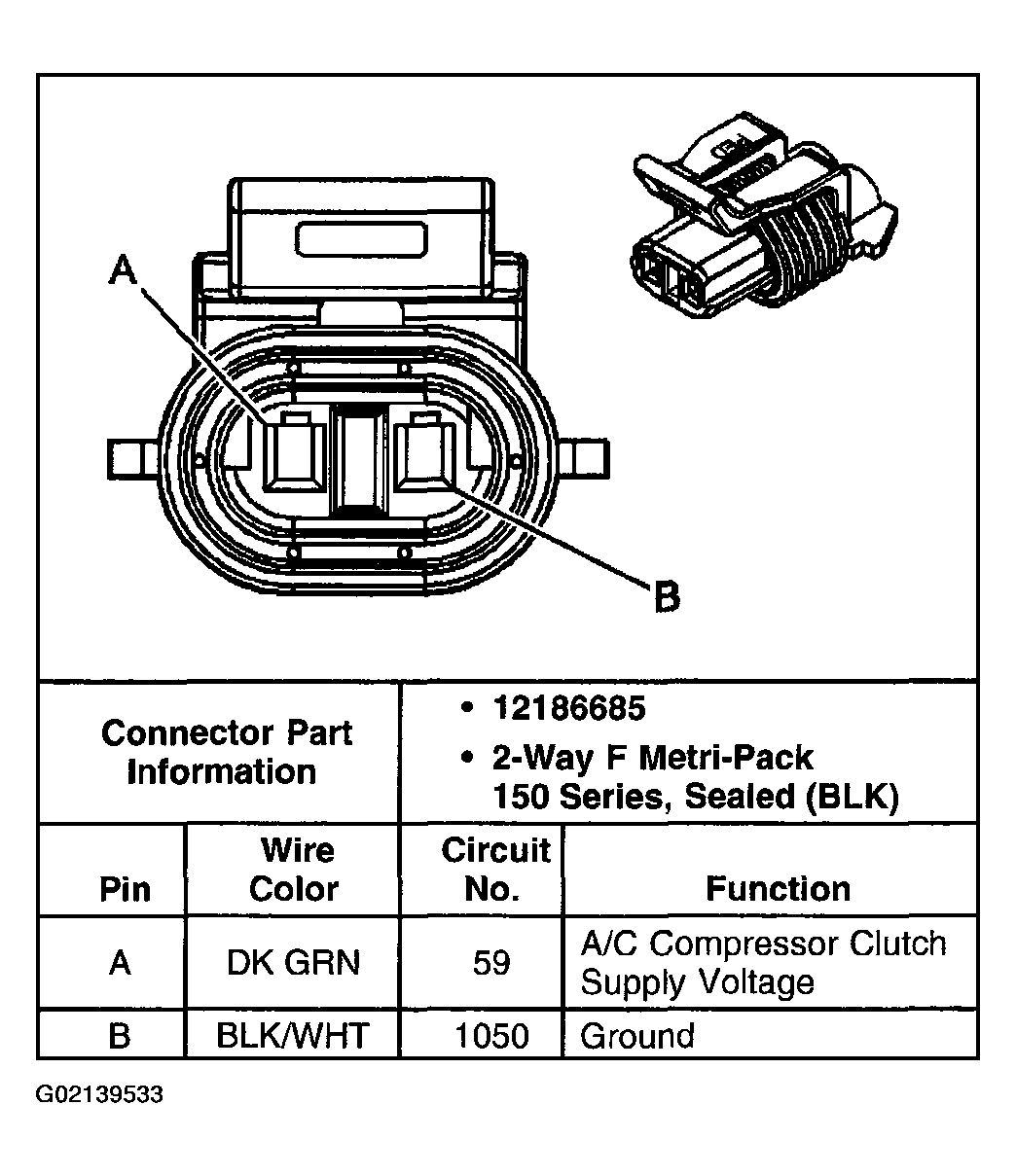

Fig 1: A/C Compressor Clutch (V4U)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
