Driver Door Module (DDM) Connector End View C1

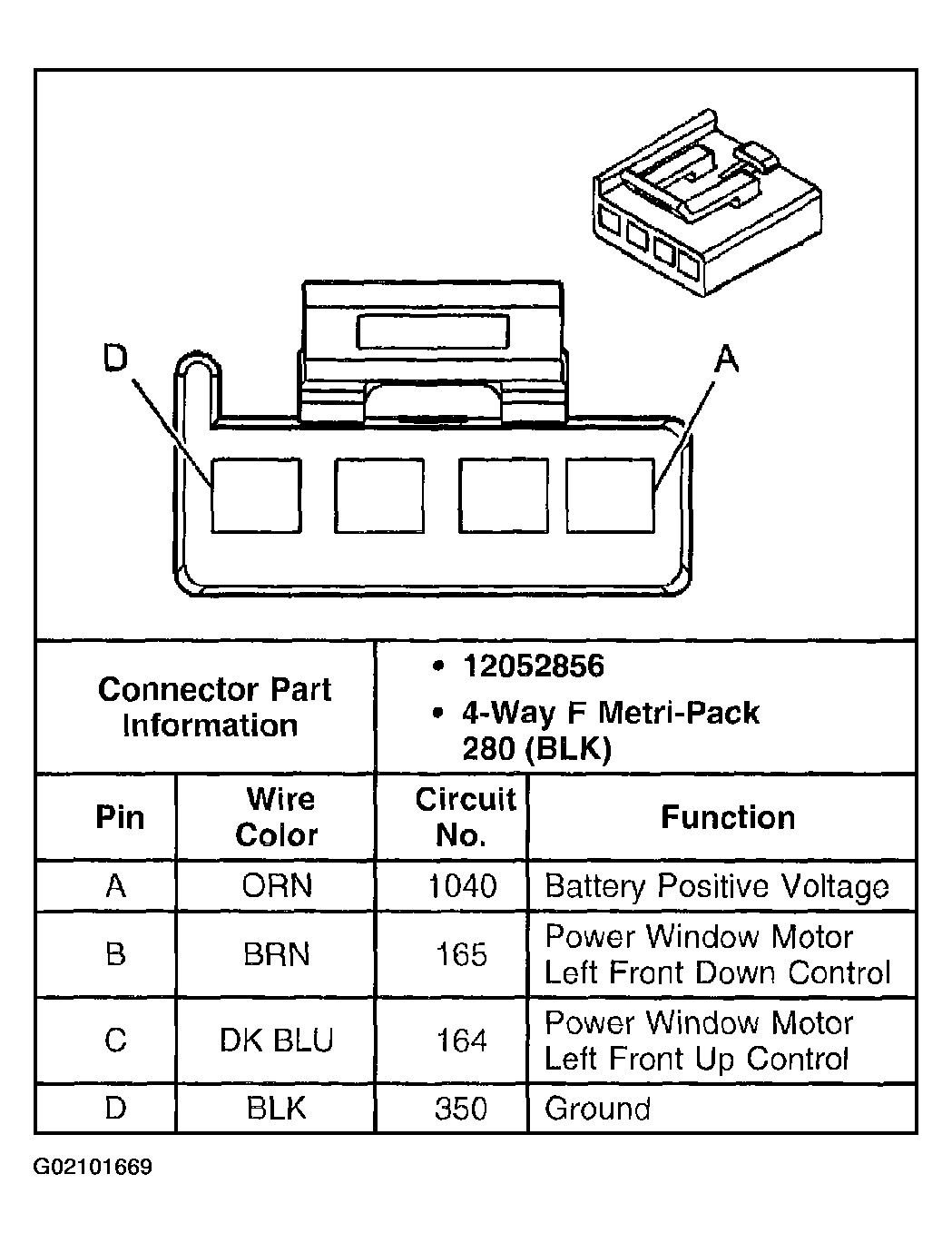

Fig 1: Driver Door Module (DDM) C1
G02101669Courtesy of GENERAL MOTORS CORP.
