Electronic Suspension Control Module Connector End View C2 (2 Of 2)

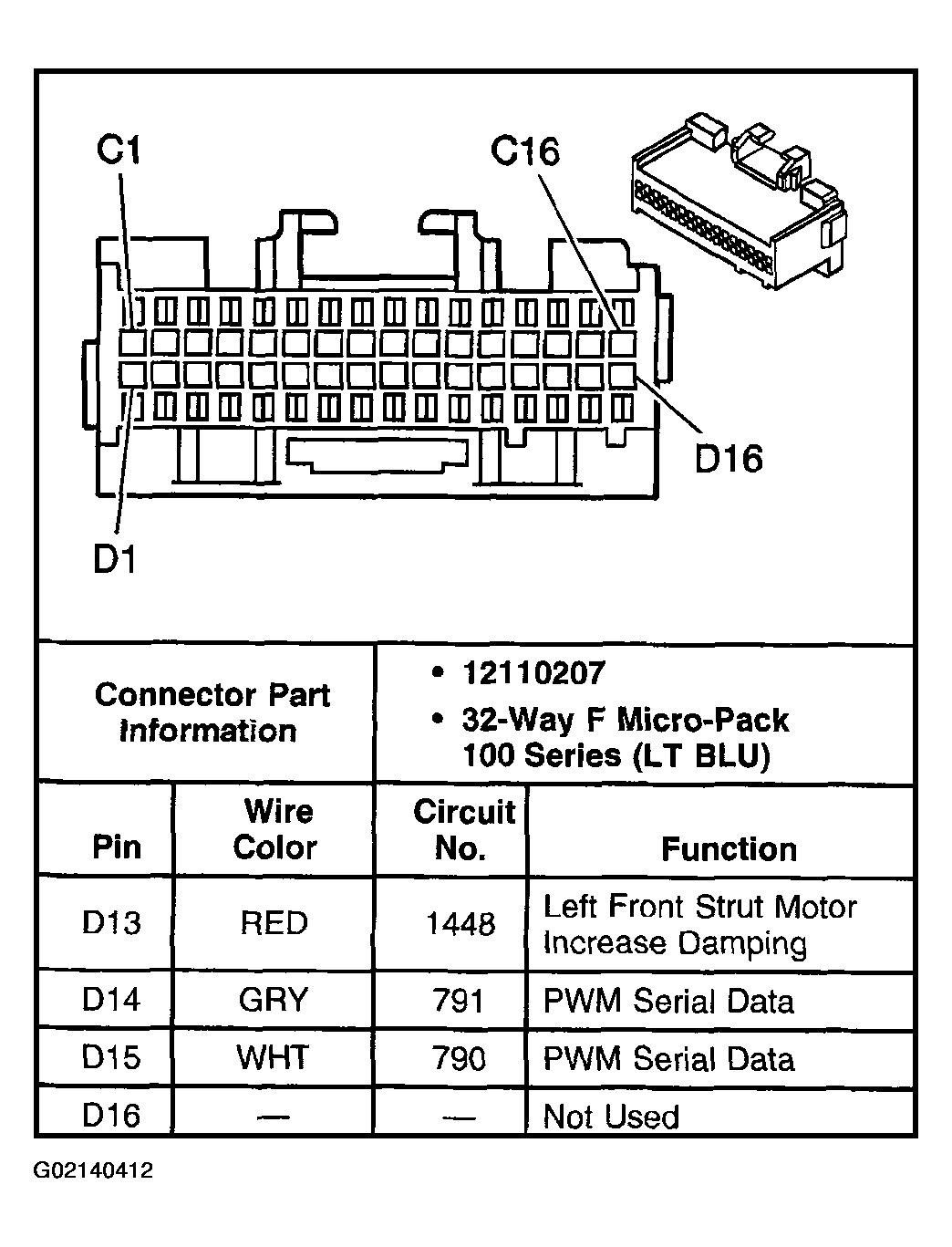

Fig 1: Electronic Suspension Control Module C2 (2 Of 2)
G02140412Courtesy of GENERAL MOTORS CORP.
