Heated Seat Module Connector End View - Driver C2

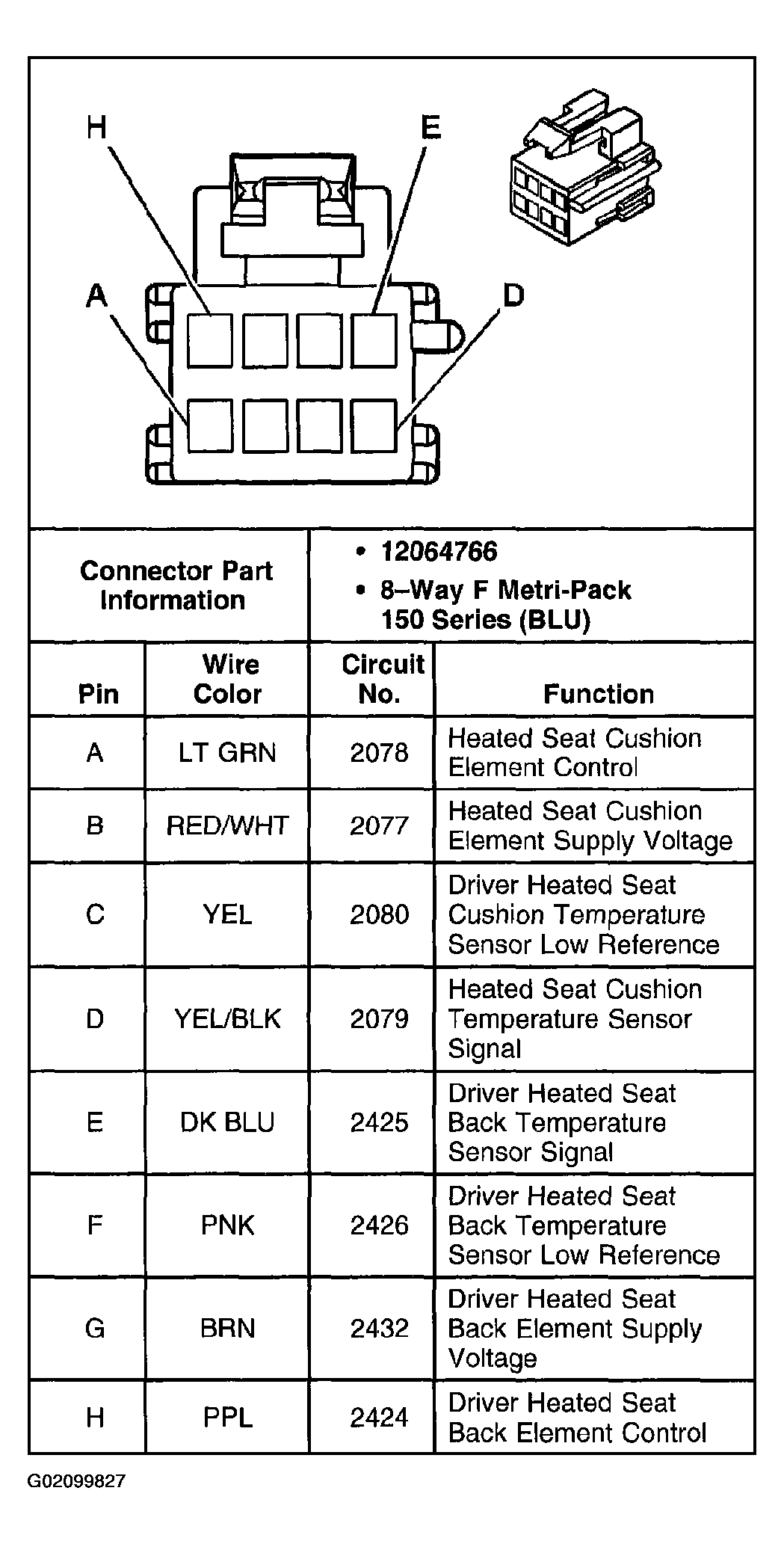

Fig 1: Heated Seat Module - Driver C2
G02099827Courtesy of GENERAL MOTORS CORP.
