Seat Horizontal Position Sensor Connector End View - Driver

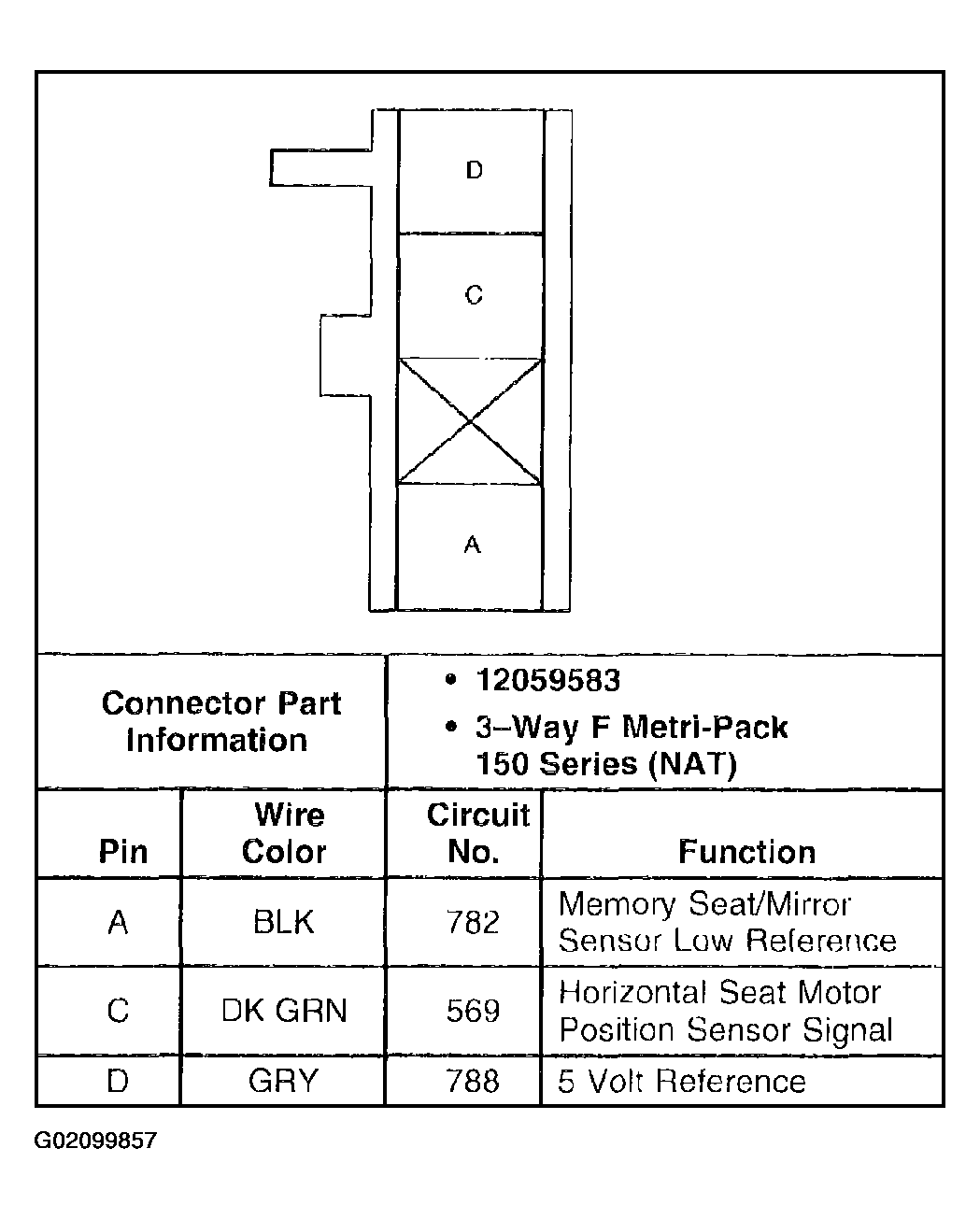

Fig 1: Seat Horizontal Position Sensor - Driver
G02099857Courtesy of GENERAL MOTORS CORP.
