Steering Column Module Connector End View C2 - Tilt Actuator

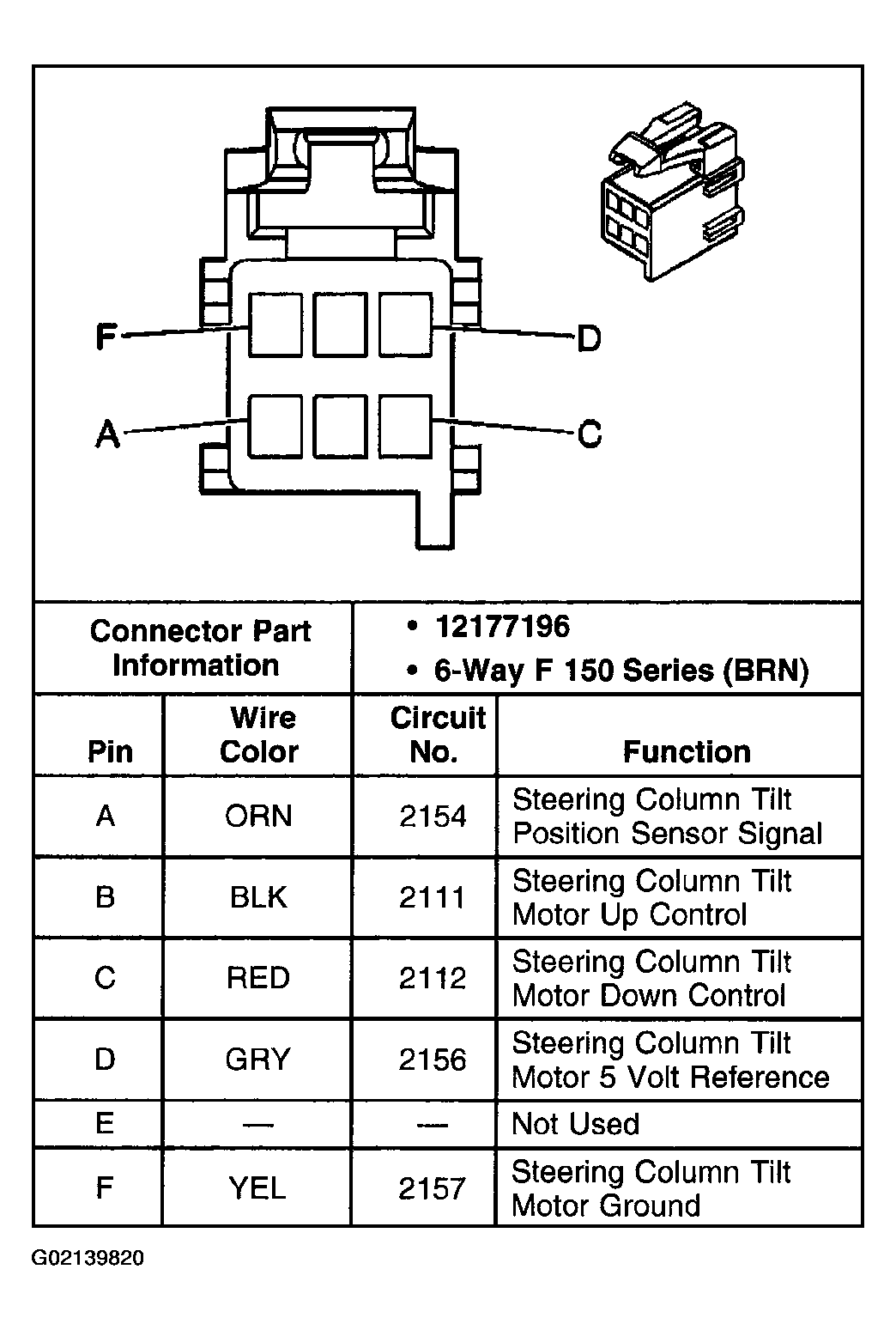

Fig 1: Steering Column Module C2 - Tilt Actuator
G02139820Courtesy of GENERAL MOTORS CORP.
