Seat Belt Connector End Views

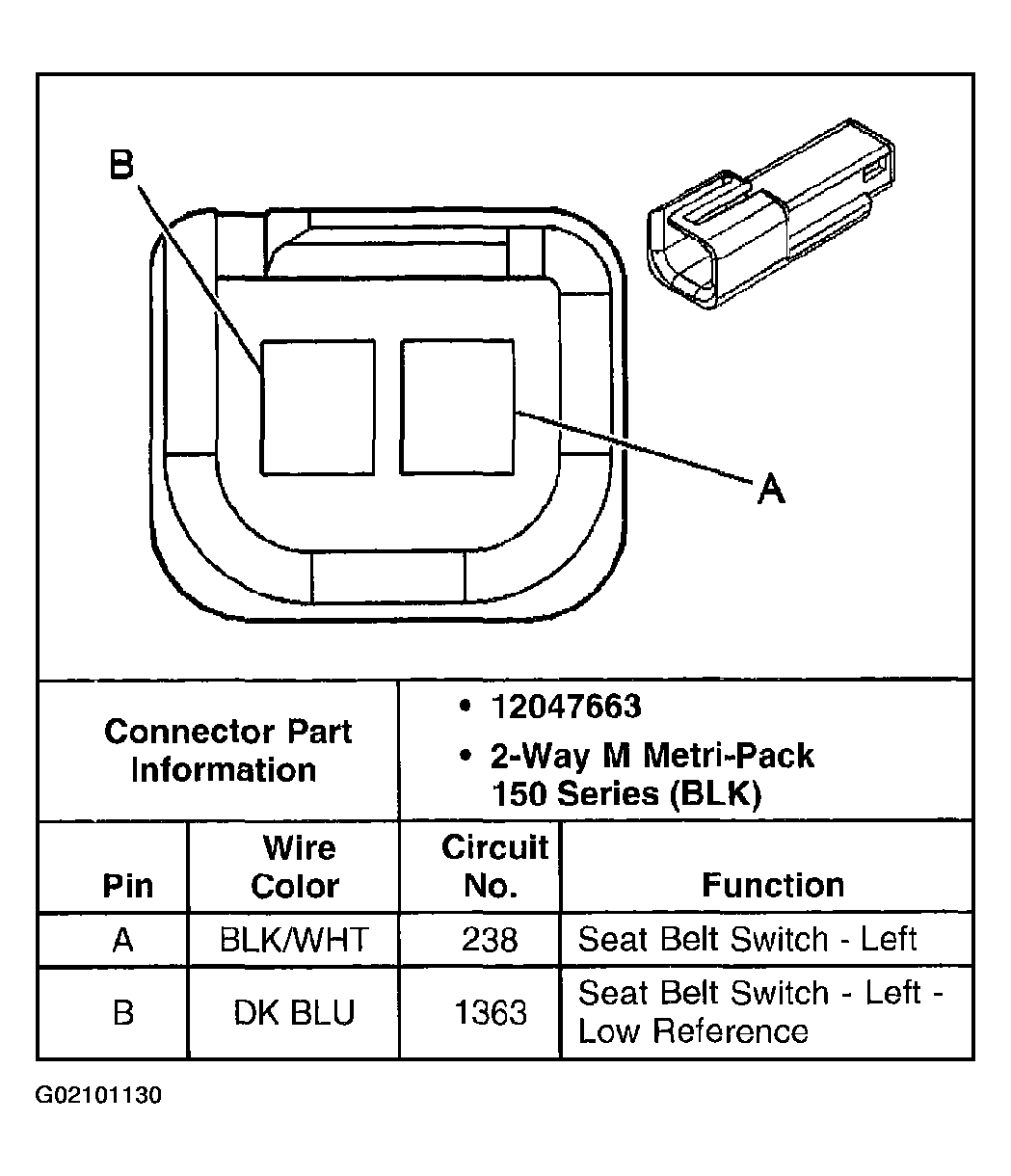

Fig 1: Identifying Seat Belt Switch - Driver Connector Terminals

Courtesy of GENERAL MOTORS CORP.

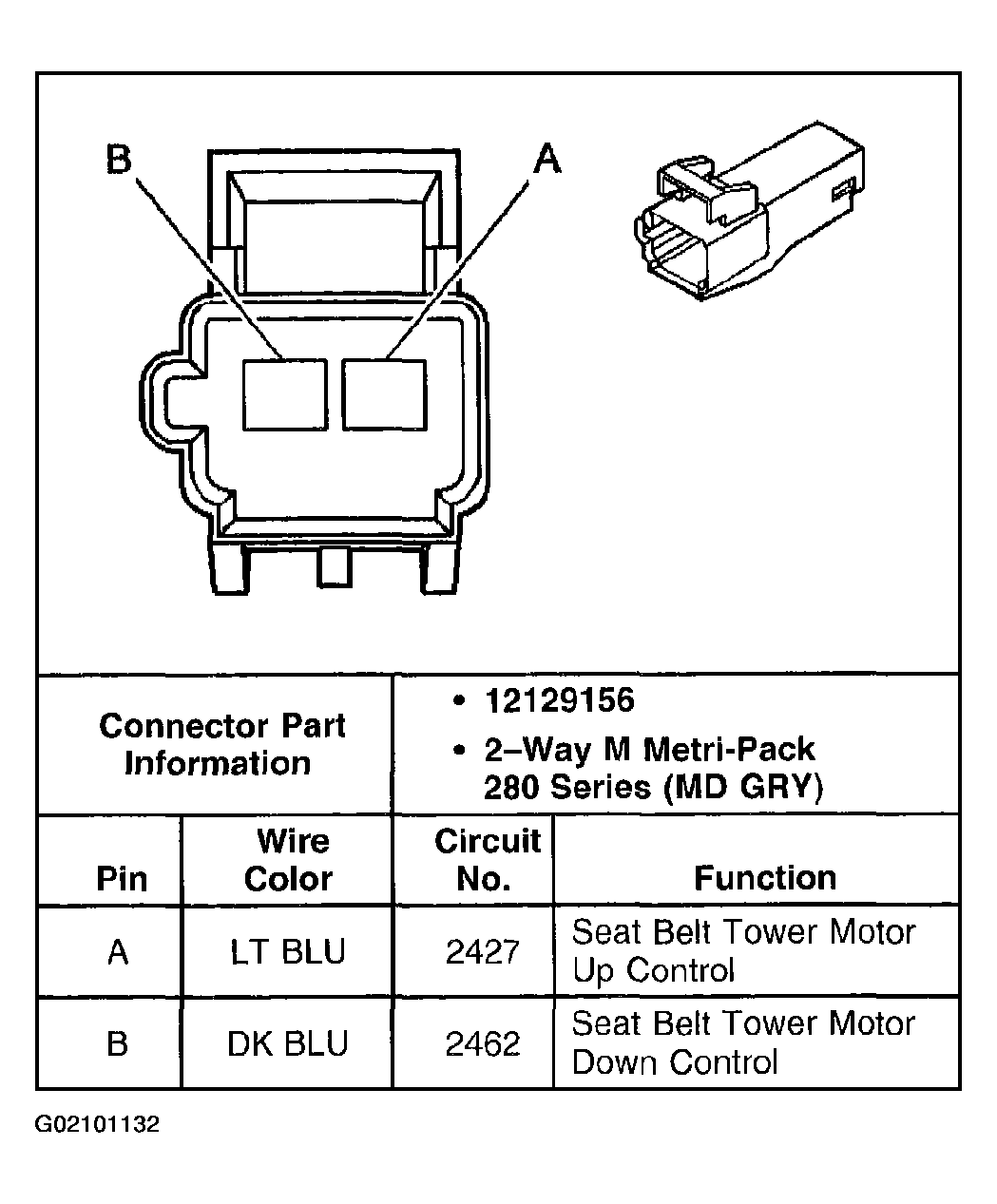

Fig 2: Identifying Seat Belt Tower Motor - Driver Connector Terminals

Courtesy of GENERAL MOTORS CORP.

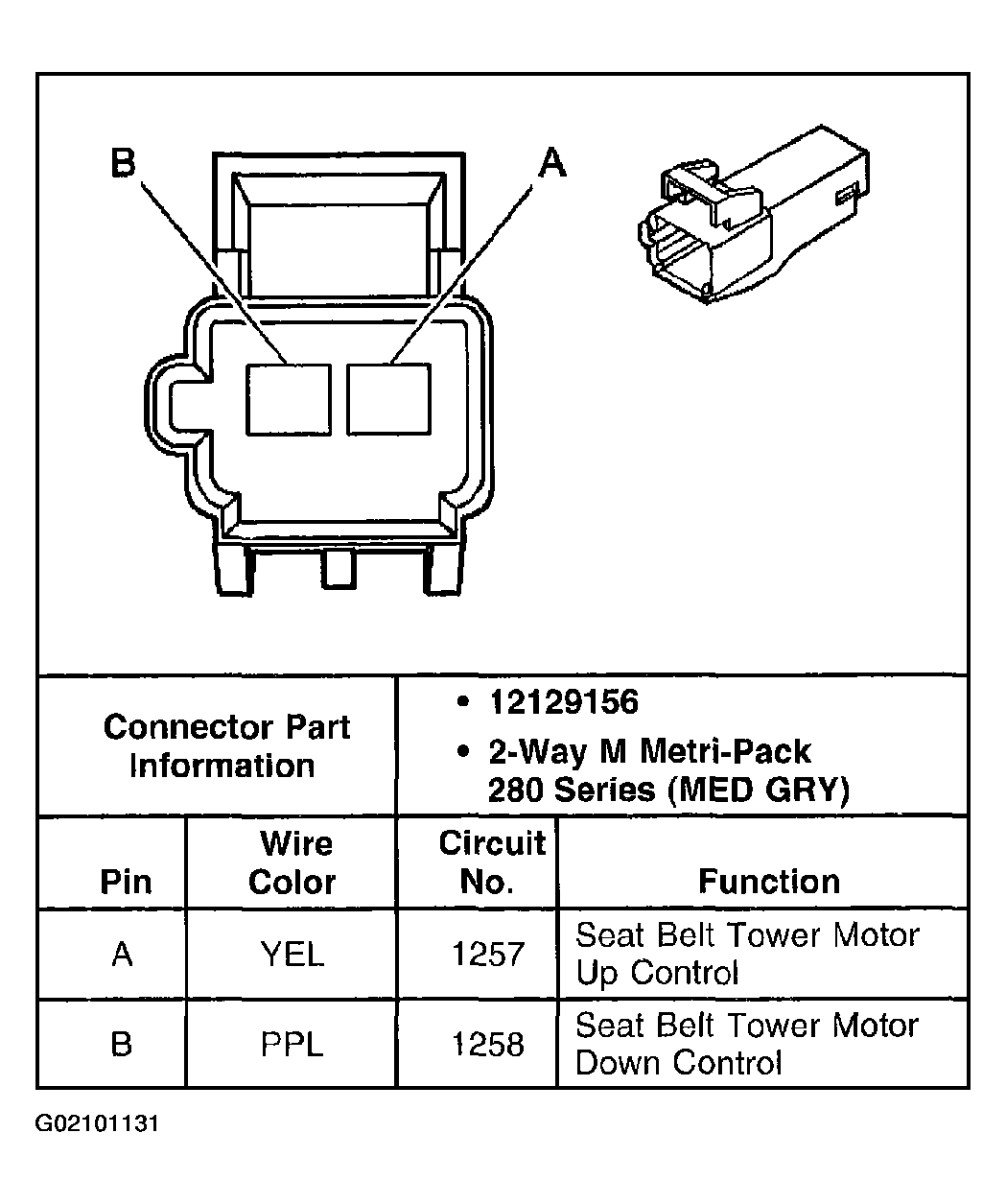

Fig 3: Identifying Seat Belt Tower Motor - Front Passenger Connector Terminals

Courtesy of GENERAL MOTORS CORP.

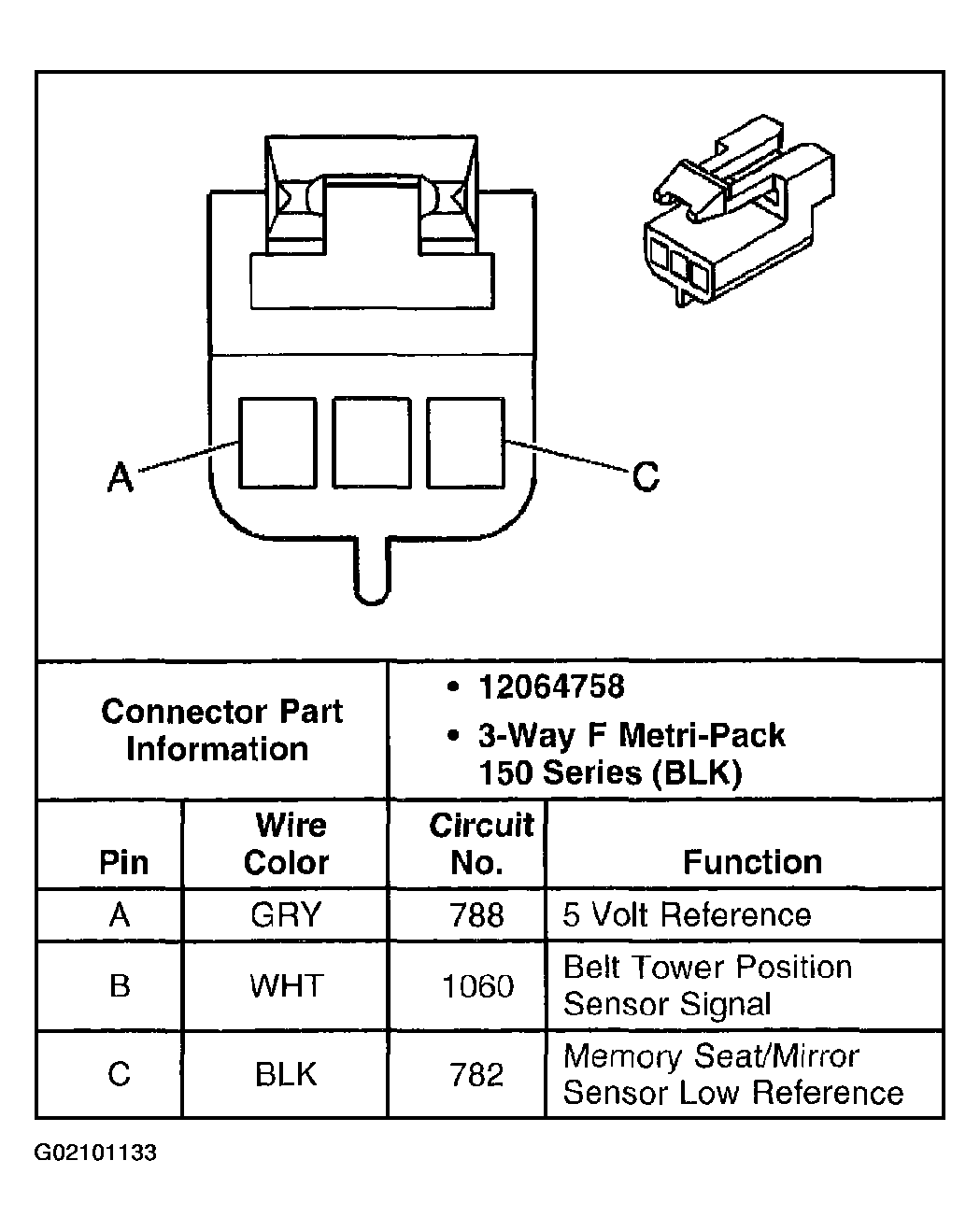

Fig 4: Identifying Seat Belt Tower Position Sensor - Driver Connector Terminals

Courtesy of GENERAL MOTORS CORP.
