Steering Controls Connector End Views

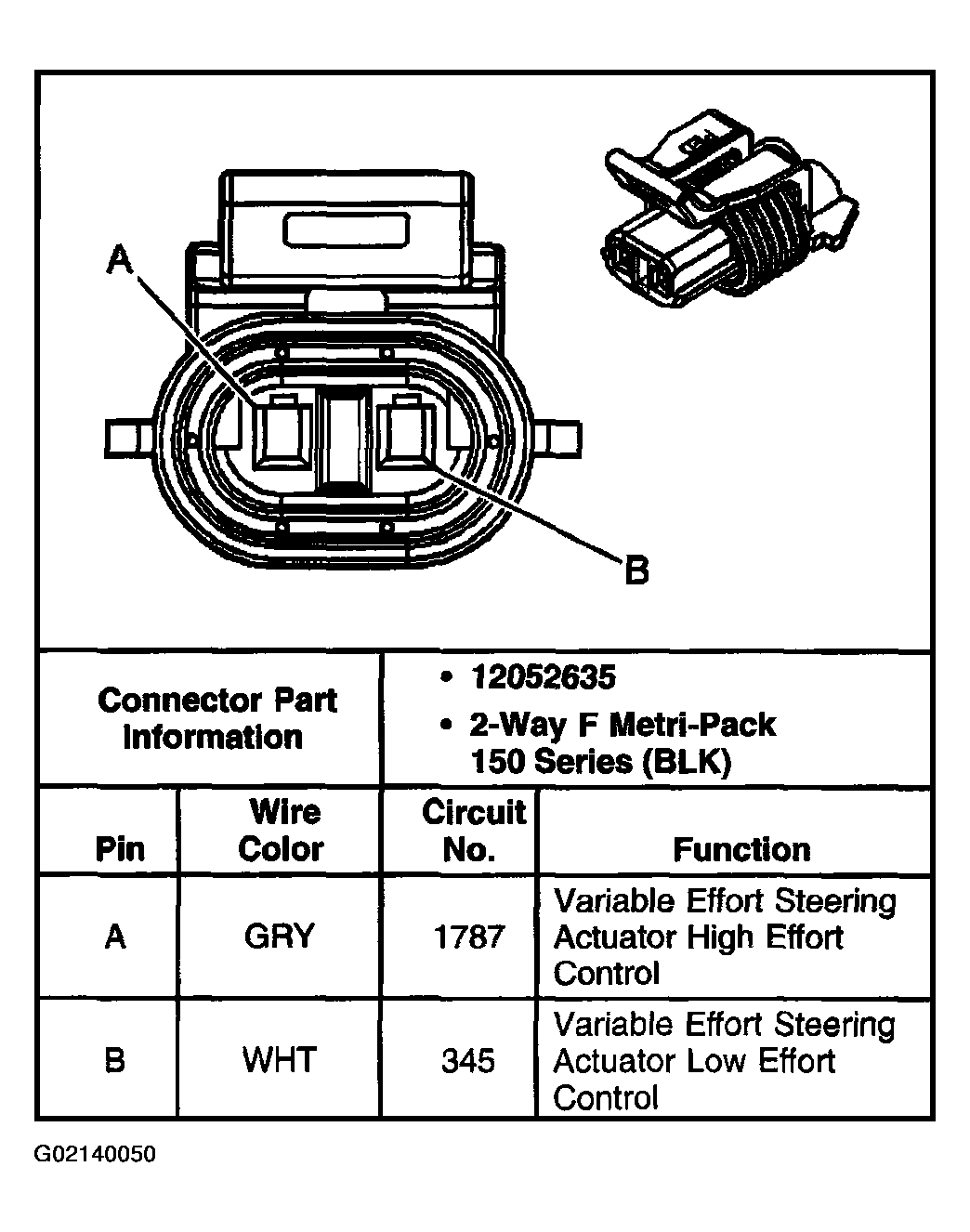

Fig 1: Variable Effort Steering Actuator Connector End Views
G02140050Courtesy of GENERAL MOTORS CORP.
