Removal Procedure

  1. Remove the secondary AIR relay bracket retaining nuts (2).
  2. Remove the secondary AIR relay bracket (1) from the mounting studs.

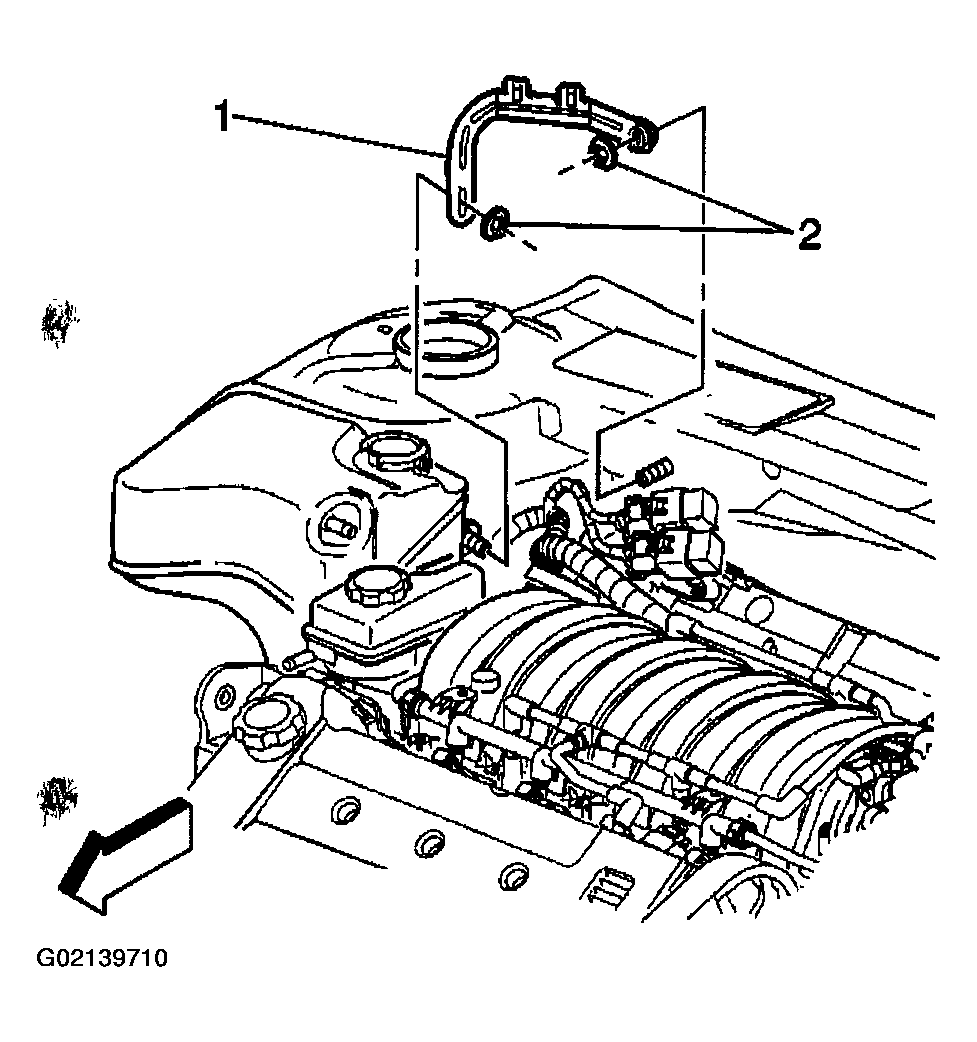

    Fig 1: Removing Secondary Air Relay Bracket From Mounting Studs
    G02139710Courtesy of GENERAL MOTORS CORP.
  3. Remove the surge tank retaining nut (2) and bolt (3).
  4. Position and support the surge tank out of the way.

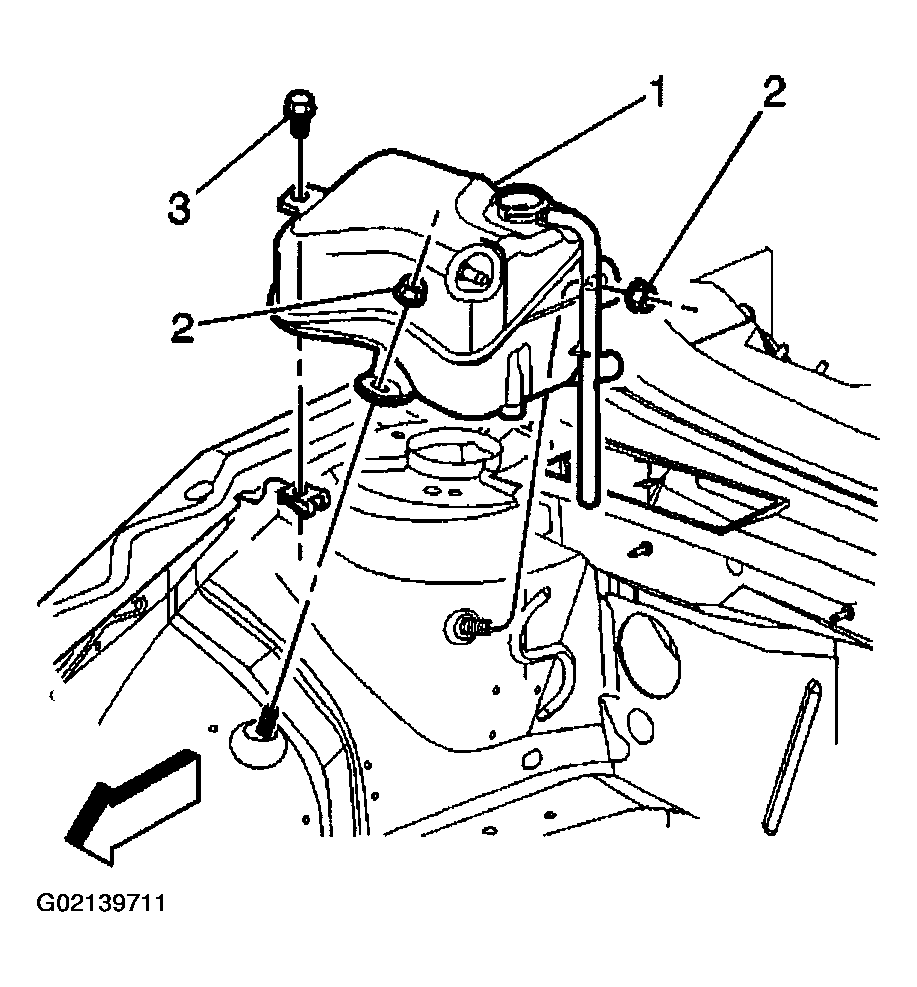

    Fig 2: Removing Surge Tank Retaining Nut And Bolt
    G02139711Courtesy of GENERAL MOTORS CORP.
  5. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical-4.6L.
  6. Using J 25034-C  remove the power steering pump pulley.

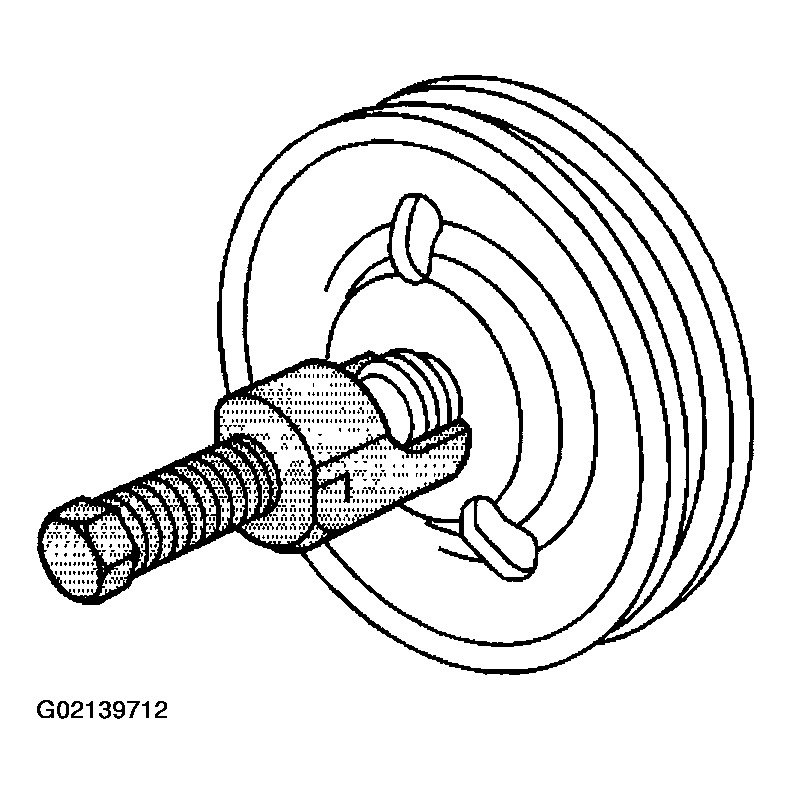

    Fig 3: Removing Power Steering Pump Pulley
    G02139712Courtesy of GENERAL MOTORS CORP.
