Installation Procedure

  1. Install the outer tie rod (3) to the inner tie rod (1).
  2. Do not tighten the jam nut (2).
    Fig 1: Installing Outer Tie Rod To Inner Tie Rod
    G02139740Courtesy of GENERAL MOTORS CORP.
  3. Install the outer tie rod (2) to the steering knuckle (1).
    Fig 2: Installing Outer Tie Rod To Steering Knuckle
    G02139741Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the outer tie rod retaining nut (2).

    Tighten

    • Tighten the outer tie rod retaining nut (2) to 47 N.m (35 lb ft).
    • Tighten the outer tie rod retaining nut (2) up to 1/6 additional turn, or 70 N.m (52 lb ft) maximum.
  5. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

    Important:  Ensure that the rack and pinion boot is not twisted or puckered during toe adjustment.

  7. Adjust the front toe. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.

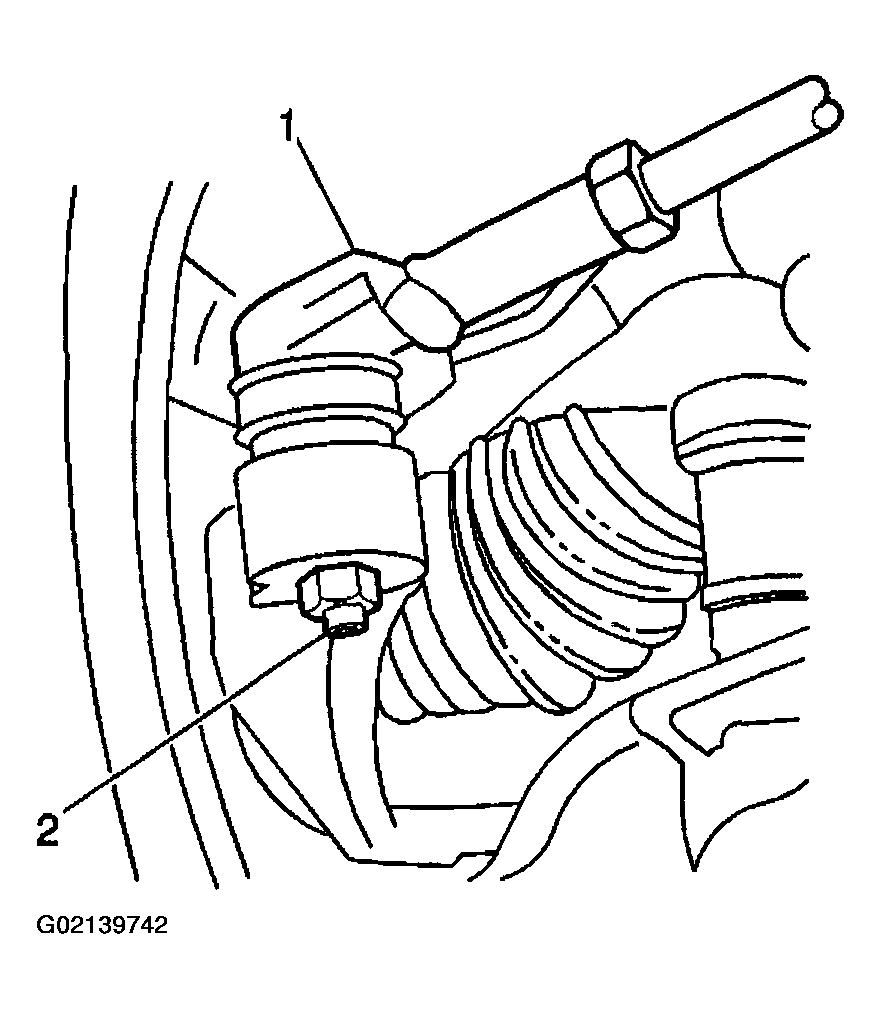

    Fig 3: Tightening Outer Tie Rod Retaining Nut
    G02139742Courtesy of GENERAL MOTORS CORP.
