Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the linear shift assembly and the tapping screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

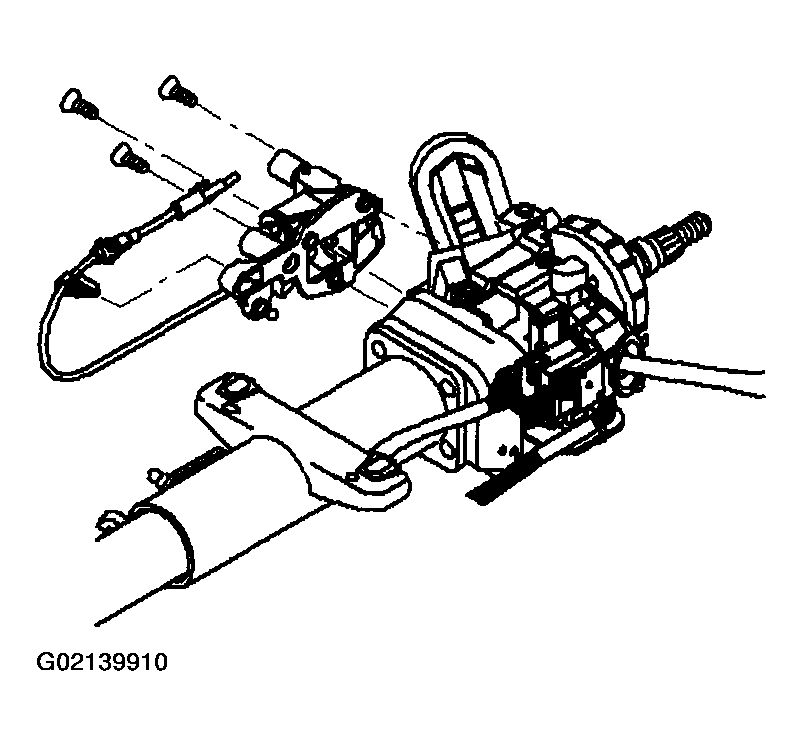

    Fig 1: Installing Linear Shift Assembly And Tapping Screws
    G02139910Courtesy of GENERAL MOTORS CORP.
  2. Connect the park lock cable assembly (1) to the ignition lock cylinder case assembly.

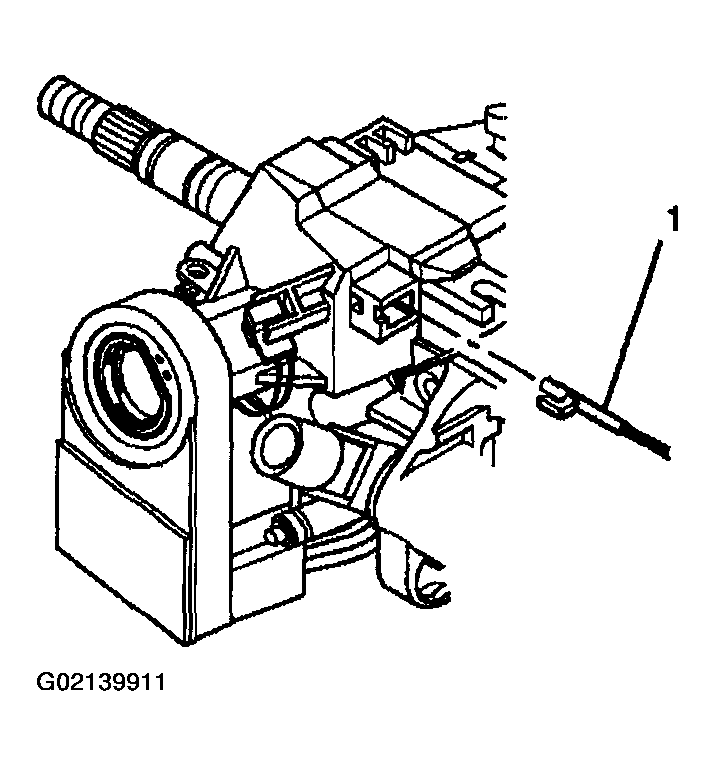

    Fig 2: Connecting Park Lock Cable Assembly
    G02139911Courtesy of GENERAL MOTORS CORP.
  3. Install the A/T shift lock actuator.
  4. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (POWER TILT)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL TILT)  .
  5. Enable the SIR system. Refer to DISABLING SYSTEM in SIR.
    Fig 3: Installing A/T Shift Lock Actuator
    G02139912Courtesy of GENERAL MOTORS CORP.
