Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (POWER TILT)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL TILT)  .
  3. Remove the A/T shift lock actuator.
    Fig 1: Removing A/T Shift Lock Actuator
    G02139907Courtesy of GENERAL MOTORS CORP.
  4. Ensure that the Ignition switch is in the OFF lock position.
  5. Disconnect the park lock cable (1) by inserting a small screwdriver into the slot on the ignition lock cylinder case assembly. Push against the locking tab to remove.

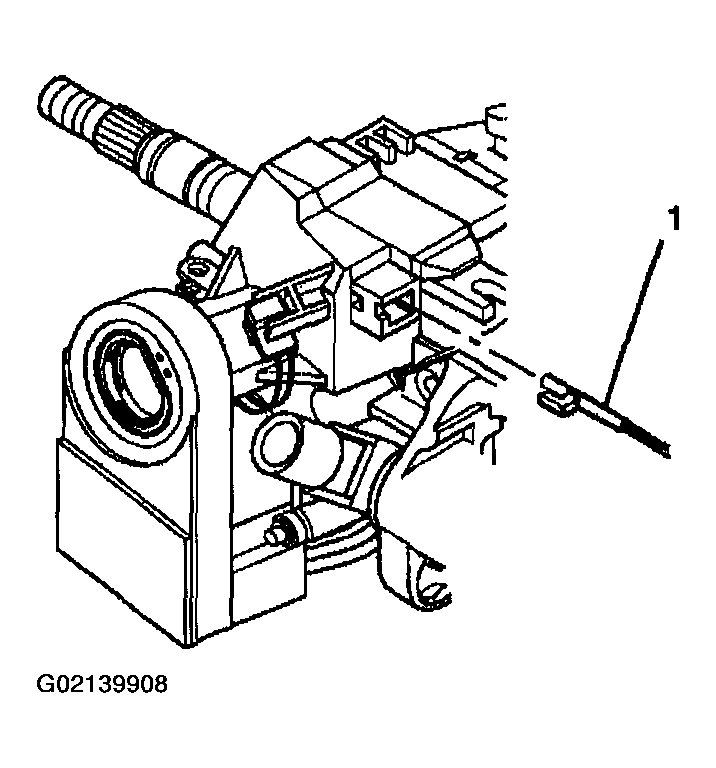

    Fig 2: Disconnecting Park Lock Cable
    G02139908Courtesy of GENERAL MOTORS CORP.
  6. Remove the flat head tapping screws from the linear shift assembly.
  7. Remove the linear shift assembly.

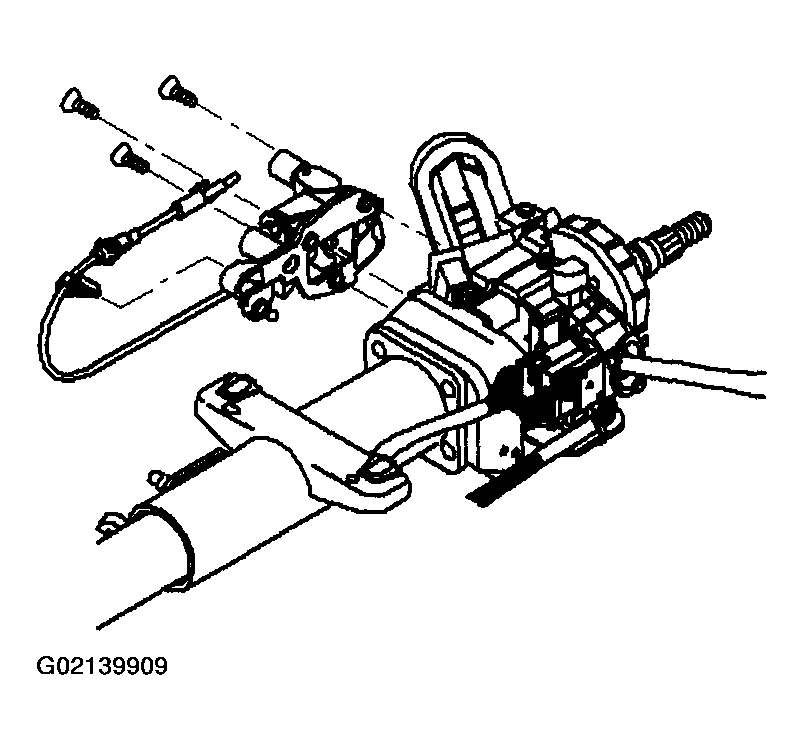

    Fig 3: Removing Flat Head Tapping Screws From Linear Shift Assembly
    G02139909Courtesy of GENERAL MOTORS CORP.
