Installation Procedure

  1. Connect the multifunction switch electrical connectors.
  2. Install the multifunction switch to the steering column.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the retaining screws to the multifunction switch.

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  4. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (POWER TILT)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL TILT)  .
  5. Enable the SIR system. Refer to DISABLING SYSTEM in SIR.

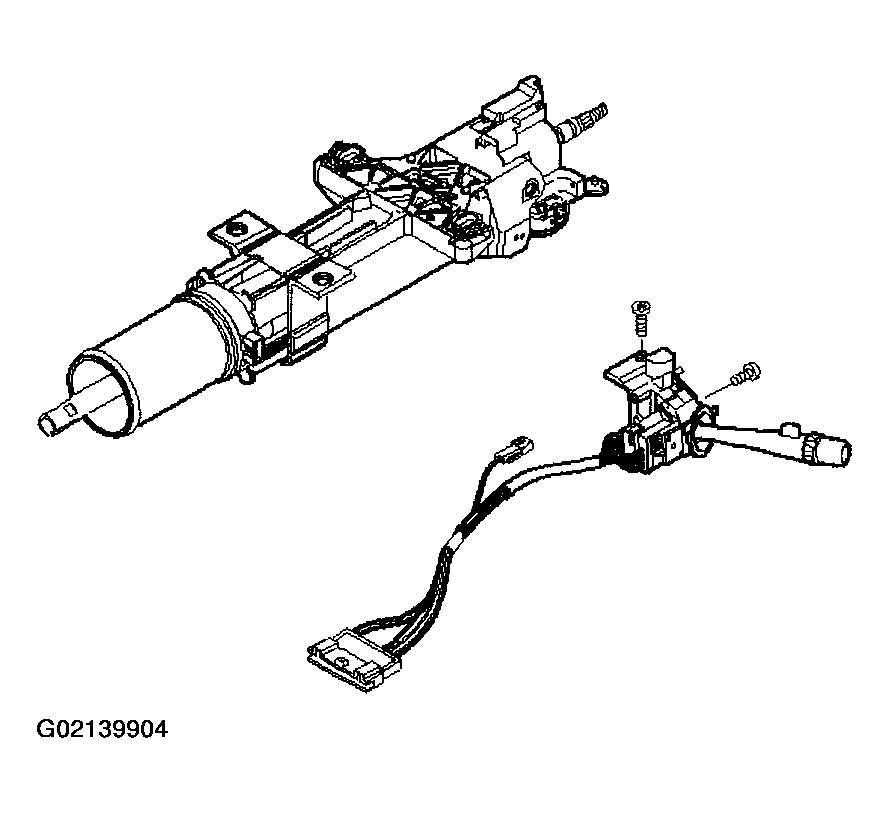

    Fig 1: Installing Retaining Screws To Multifunction Switch
    G02139904Courtesy of GENERAL MOTORS CORP.
