Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

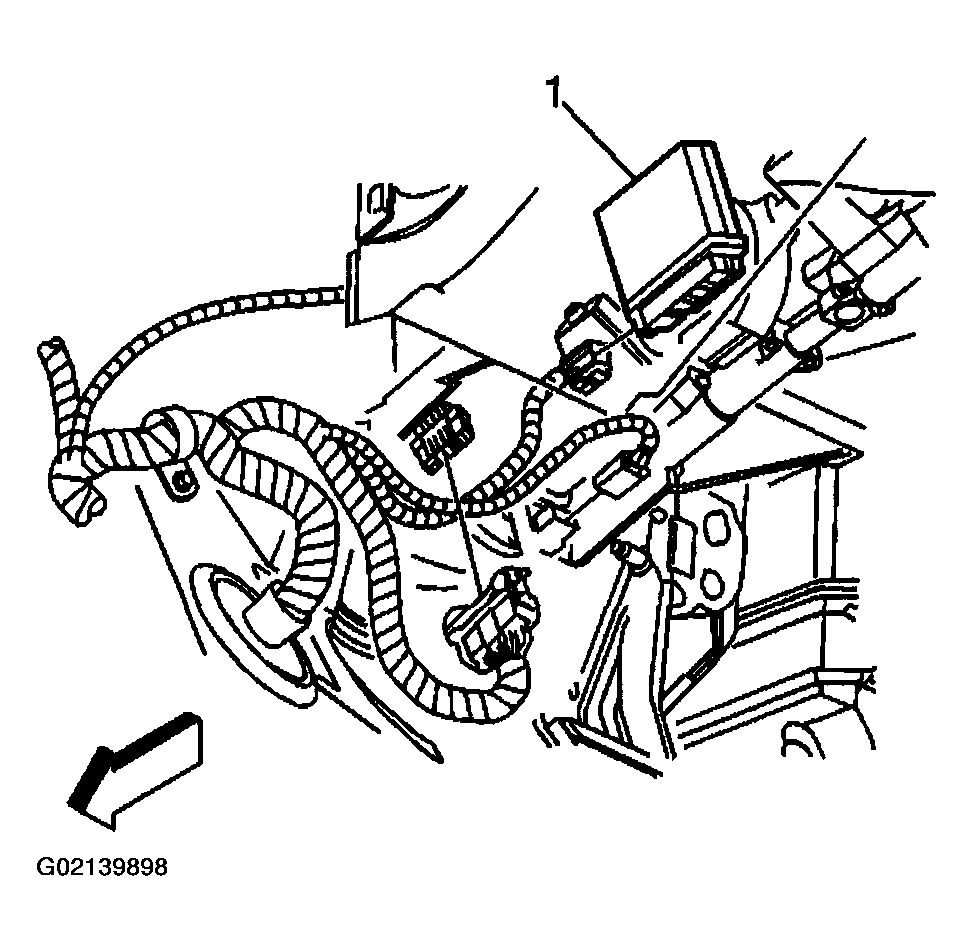

- Install the control module (1) to the steering column and tighten the retaining screw.
Tighten
Tighten screw to 2 N.m (15 lb in).
- Connect the electrical connectors on the steering column control module.
- Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2) or KNEE BOLSTER REPLACEMENT - LEFT (UV2) in Instrument Panel, Gauges and Console.
- Program the steering column control module. Refer to STEERING COLUMN CONTROL MODULE PROGRAMMING .
