Home › Cadillac › 2003 › DeVille Base › Repair and Diagnosis › Steering › Steering Wheel And Steering Column › Repair Instructions › Steering Wheel Control Switch Assembly Replacement › Removal Procedure

Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING SYSTEM in SIR.
  2. Remove the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  3. Carefully pull the steering wheel control switch (2) away from the steering wheel.
  4. Disconnect the electrical connectors (1) for the steering wheel control switch (2).
  5. Remove the steering wheel control switch (2) from the steering wheel.

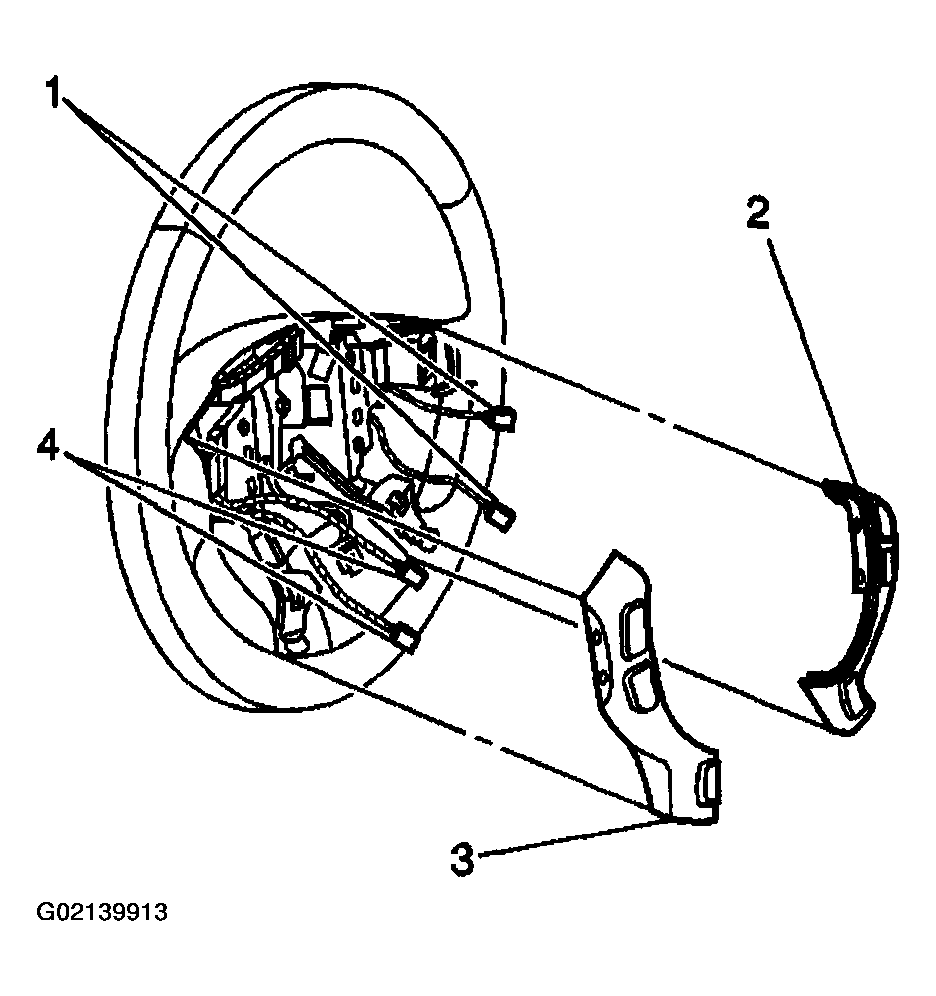

    Fig 1: Disconnecting Electrical Connectors For Steering Wheel Control Switch
    G02139913Courtesy of GENERAL MOTORS CORP.
