Installation Procedure

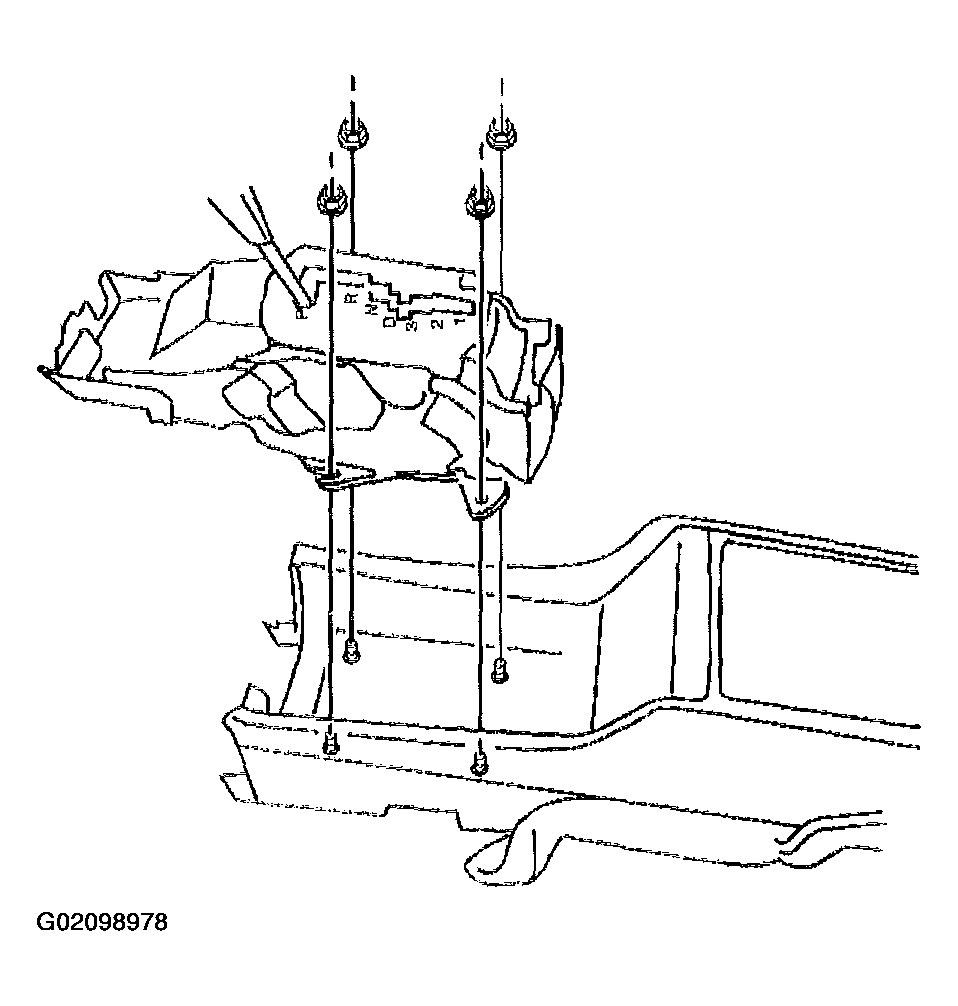

Install the shifter assembly.
NOTE: Refer to FASTENER NOTICE
Install the shifter fasteners.
Tighten

Tighten the shifter fasteners to 9 N.m (79 lb in).

Fig 1: Installing Shifter & Fasteners
Courtesy of GENERAL MOTORS CORP.

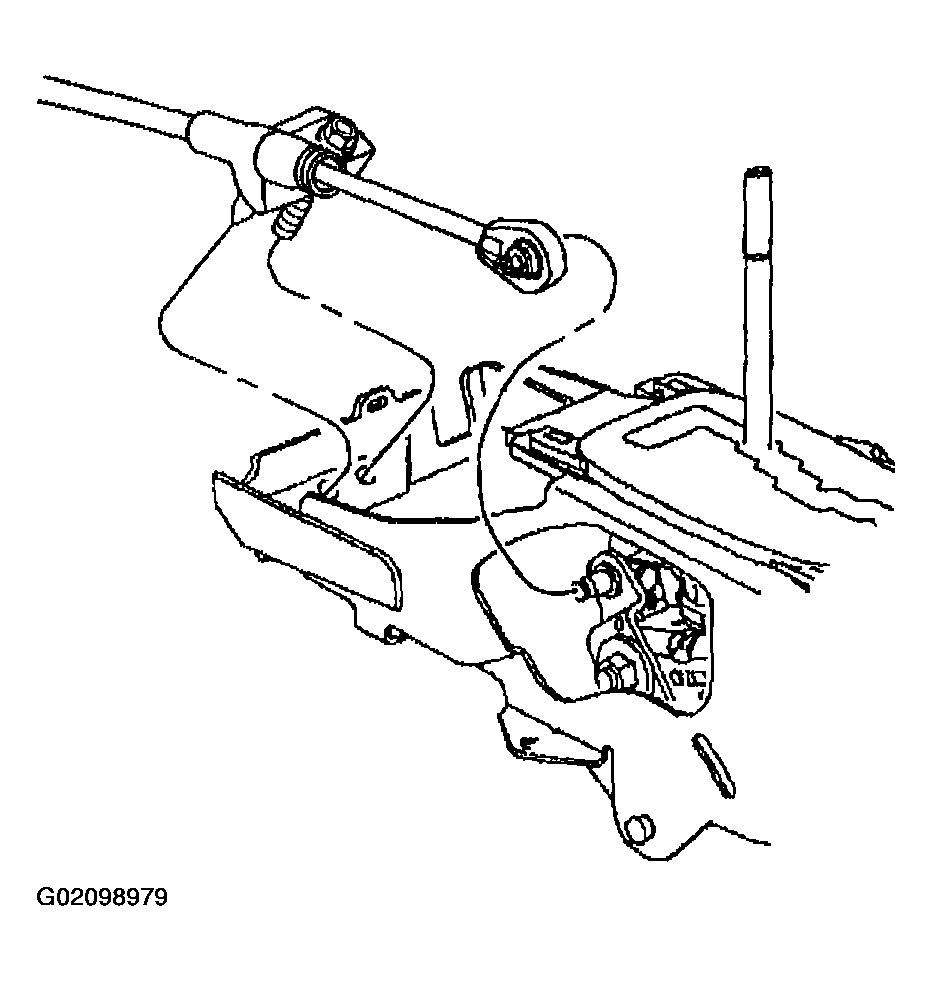

Insert the shift cable onto the shifter control.
Connect the automatic transmission shift lock solenoid wire harness connector.

Fig 2: Connecting Automatic Transmission Shift Lock Solenoid Wire Harness Connector
Courtesy of GENERAL MOTORS CORP.
Adjust the shift cable as follows.
1. 5.1. Place the shifter into the N (neutral) position.
2. 5.2. Loosen the shifter adjuster nut.
3. 5.3. Tighten the adjuster nut.
  Tighten

  Tighten the adjuster nut to 25 N.m (18 lb ft).

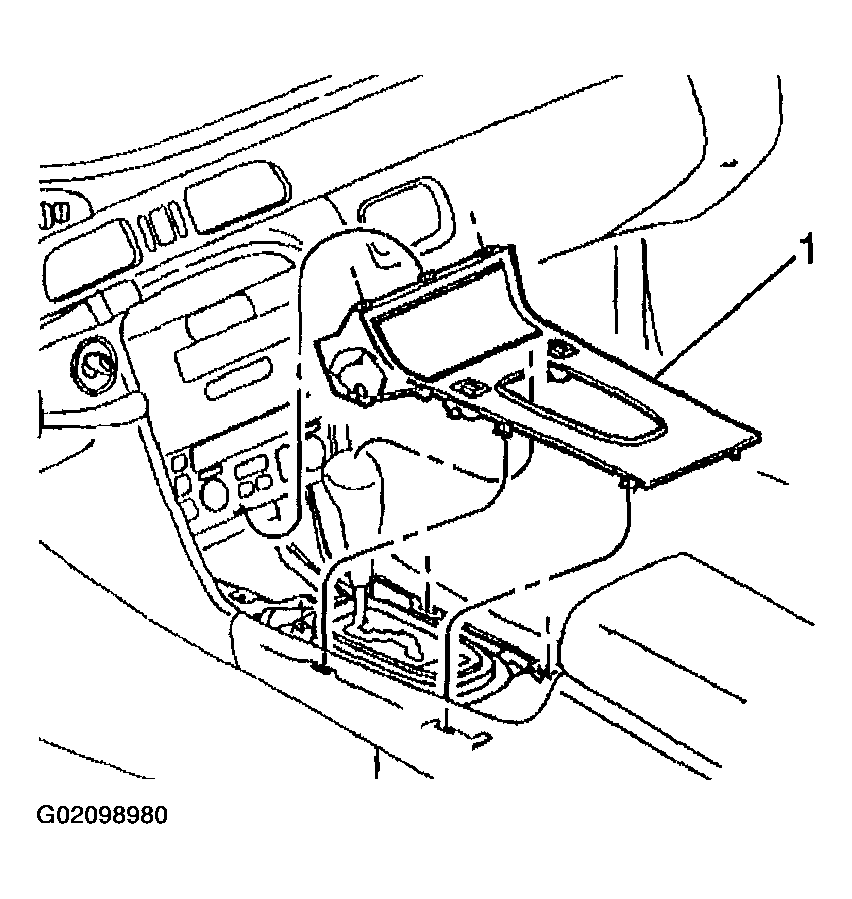

Install the console trim plate (1). Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS)

Fig 3: Installing Console Trim Plate
Courtesy of GENERAL MOTORS CORP.
