Automatic Transaxle - 4T80-E
›
Specifications
›
Shift Speed
Shift Speed

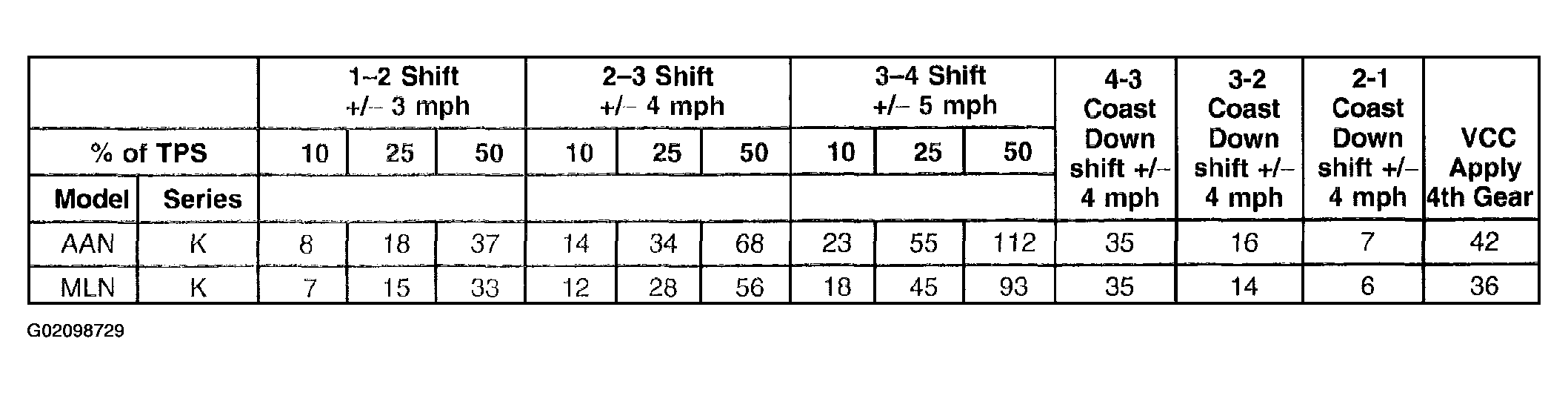

Fig 1: Automatic Transaxle Shift Speed
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
