Transmission Internal Mode Switch Logic

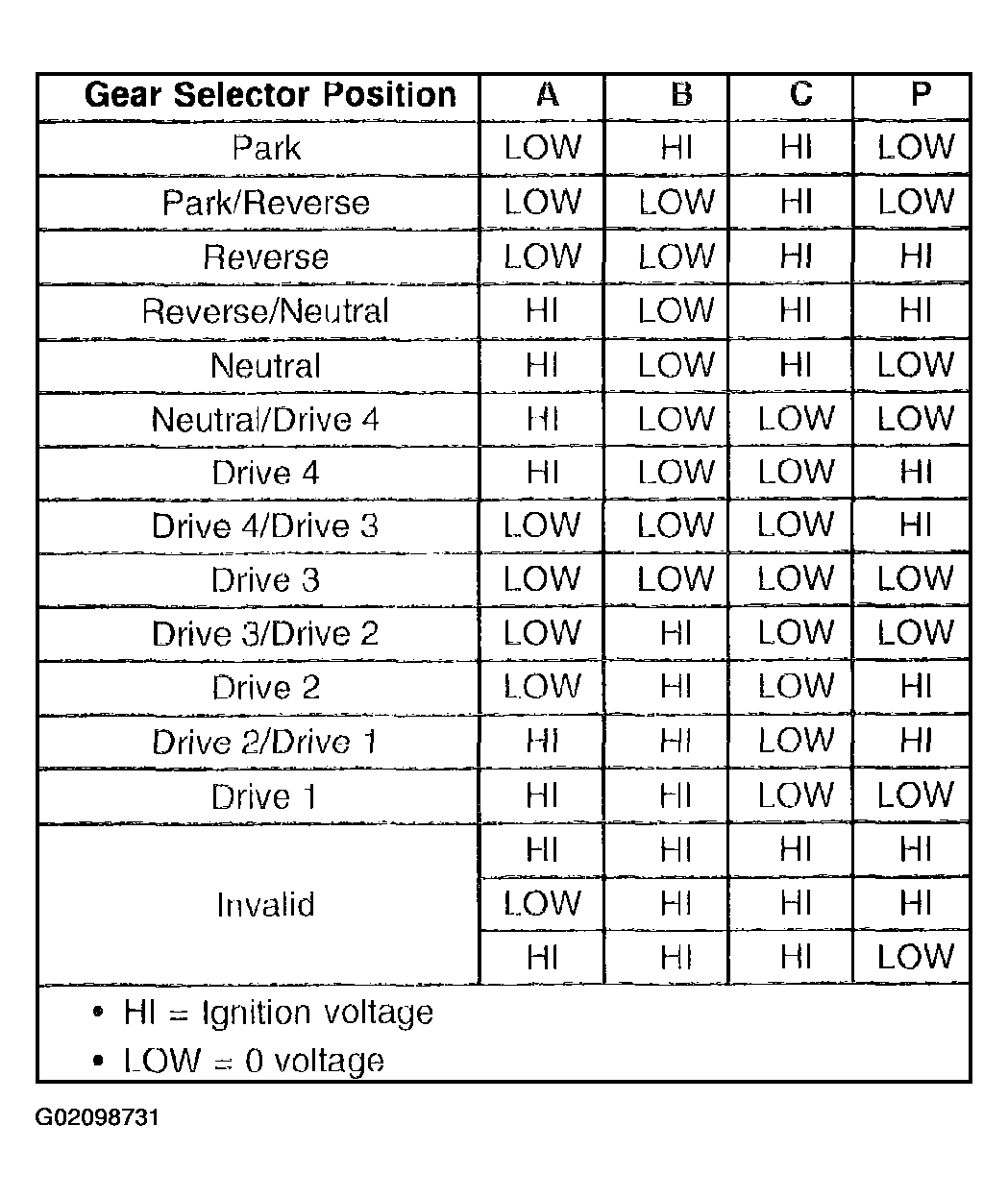

Fig 1: Transmission Internal Mode Switch Logic
G02098731Courtesy of GENERAL MOTORS CORP.
