Reverse Lockout System Inoperative

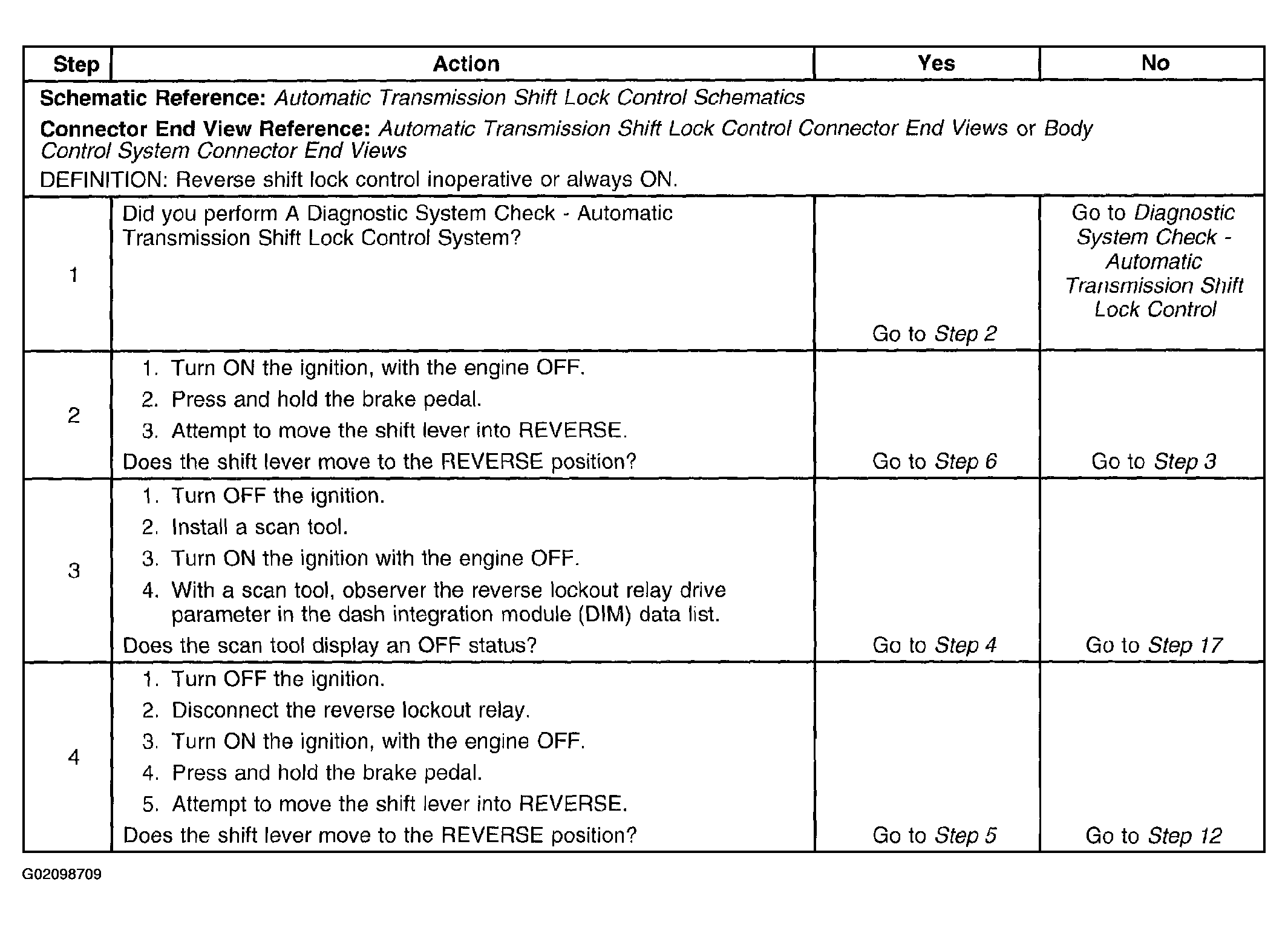

Fig 1: Reverse Lockout System Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

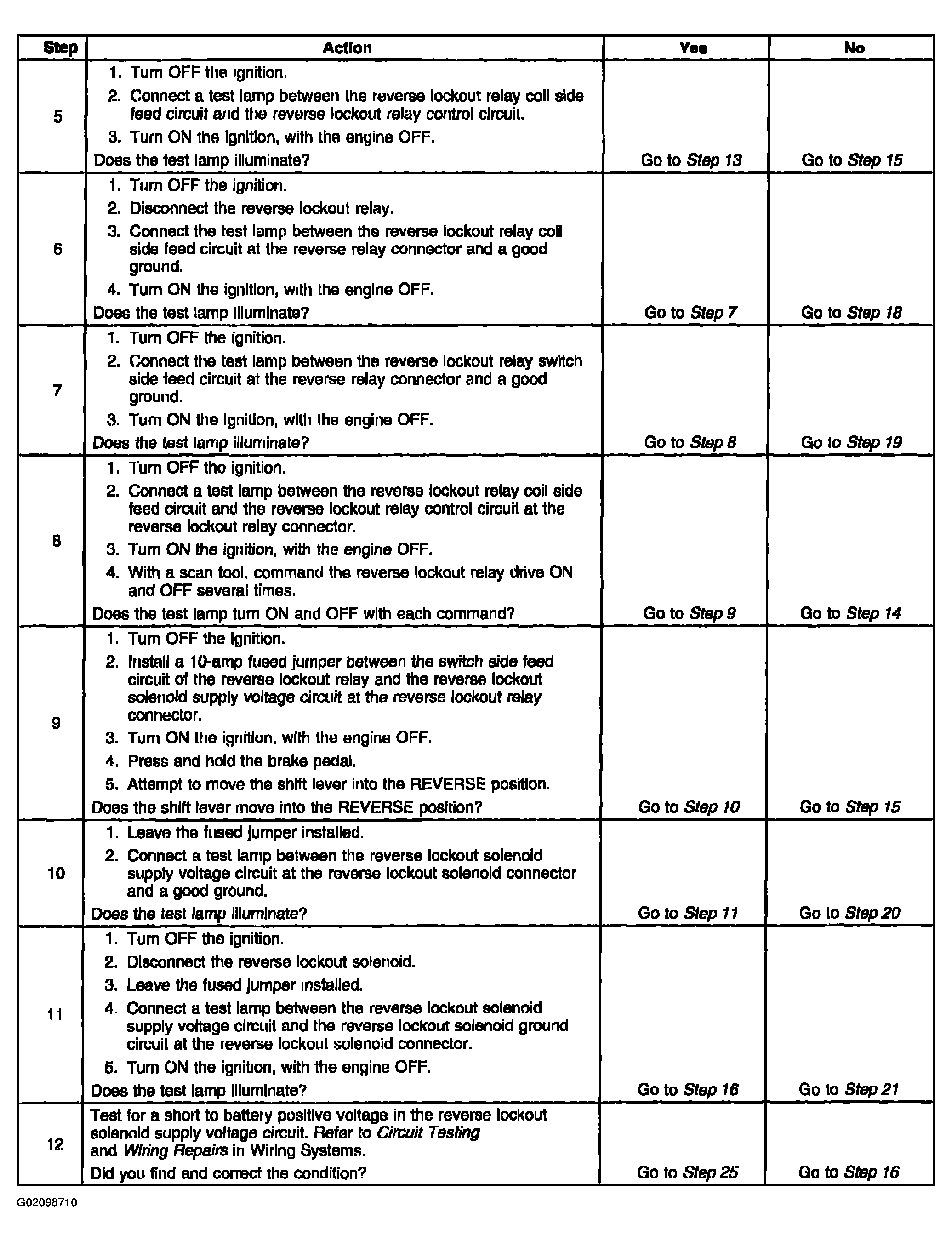

Fig 2: Reverse Lockout System Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

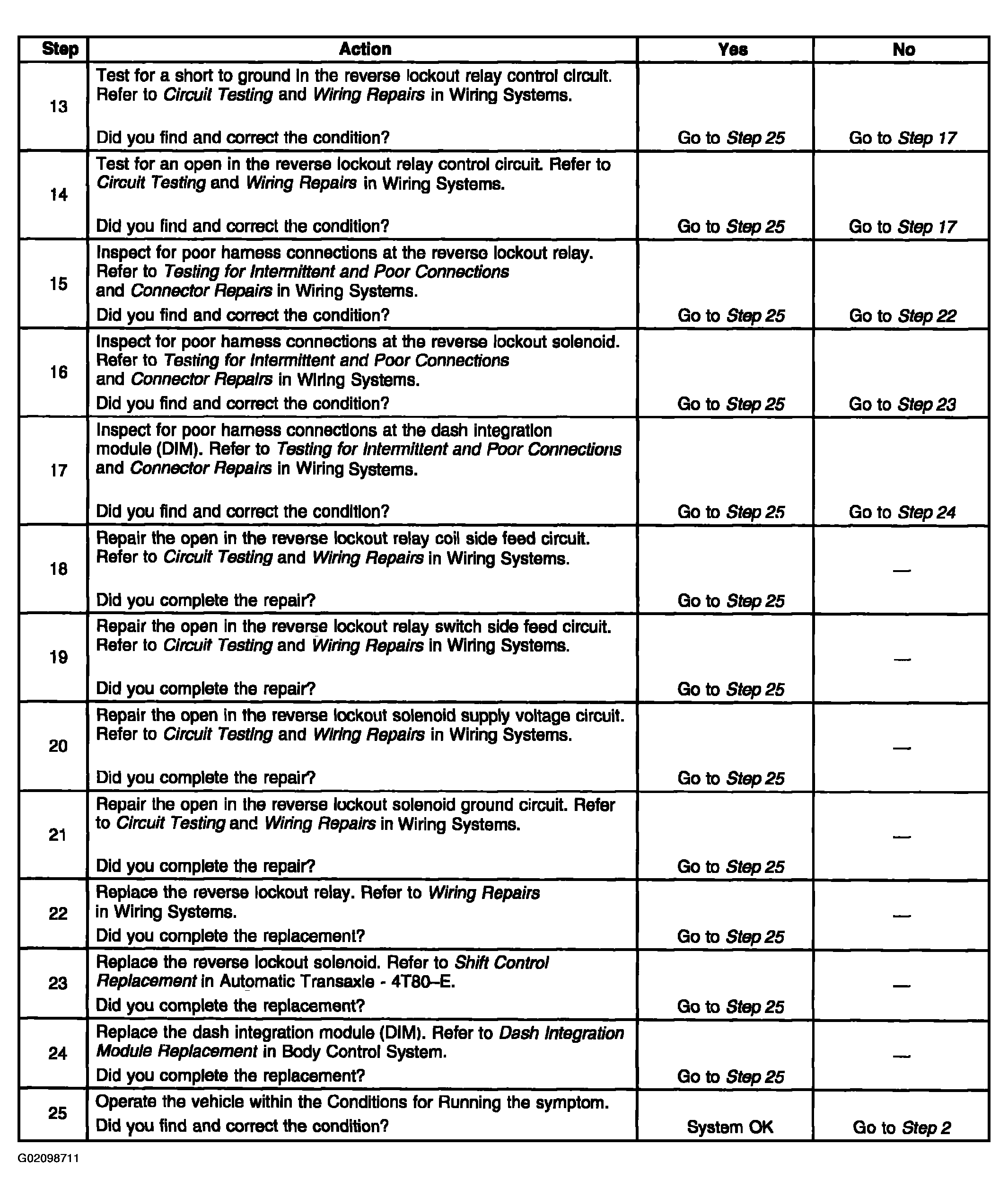

Fig 3: Reverse Lockout System Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
