Automatic Transmission Shift Lock Control Schematics

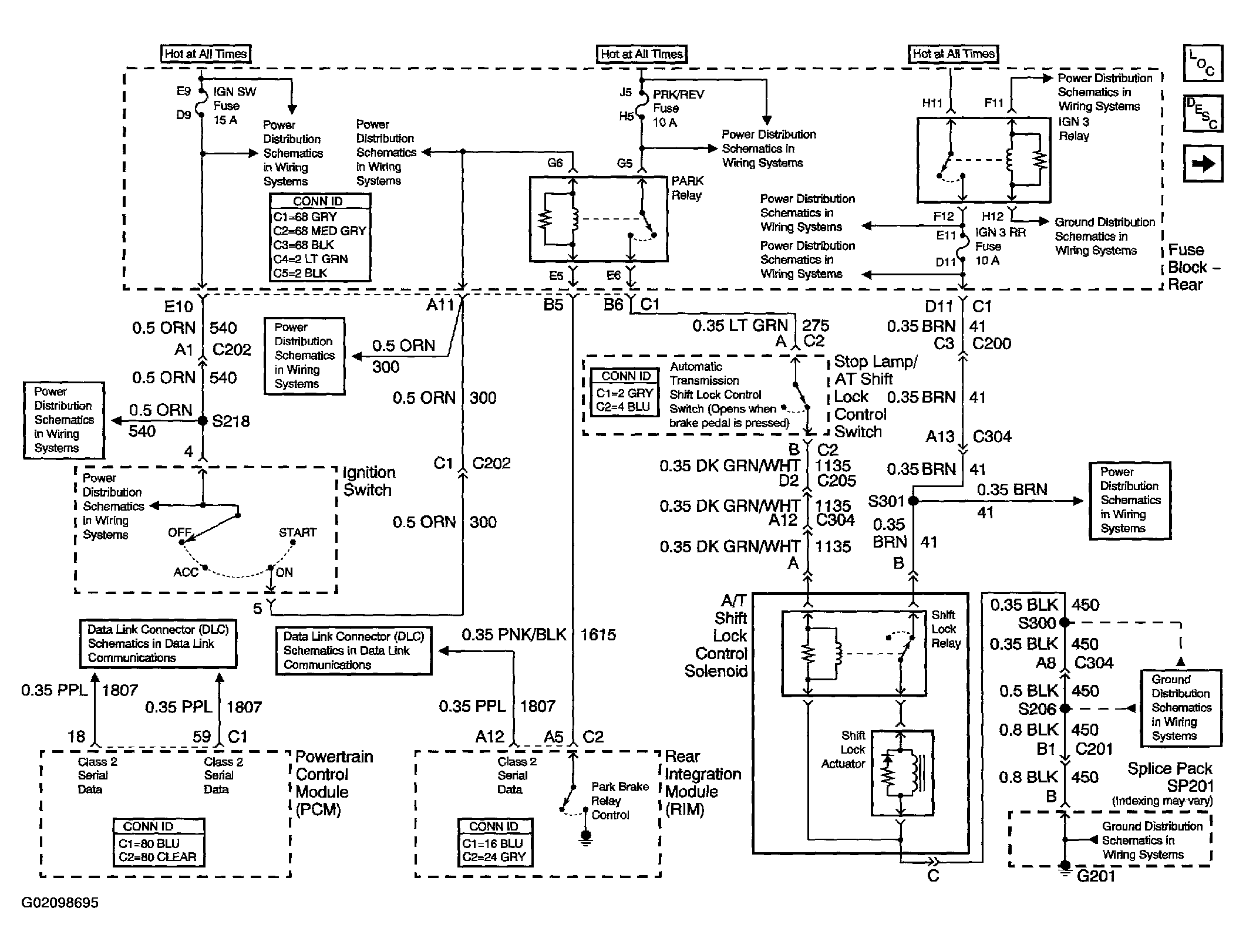

Fig 1: Automatic Transmission Shift Lock Control Schematics - w/Console Shift
G02098695Courtesy of GENERAL MOTORS CORP.

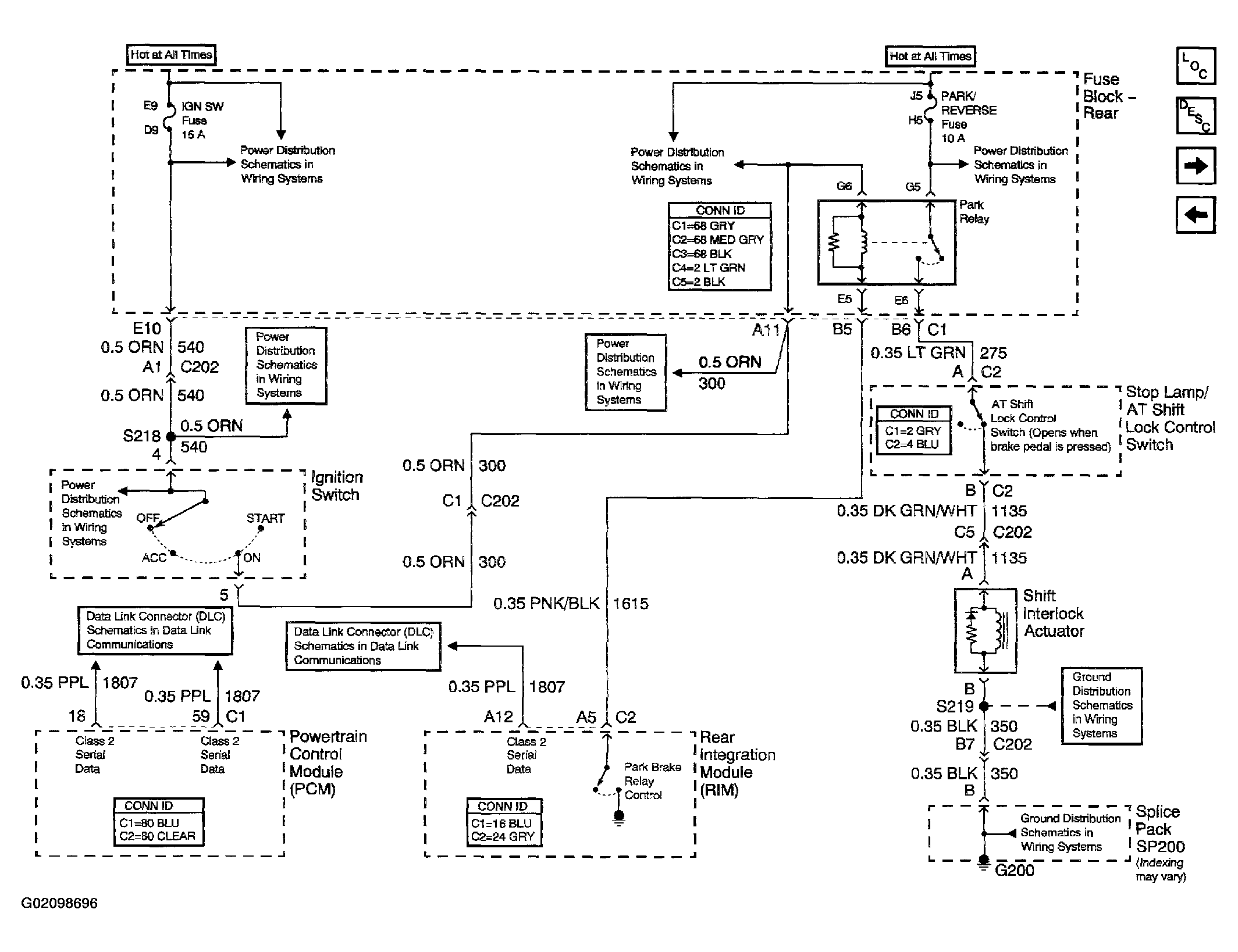

Fig 2: Automatic Transmission Shift Lock Control Schematics (w/Column Shift)
G02098696Courtesy of GENERAL MOTORS CORP.

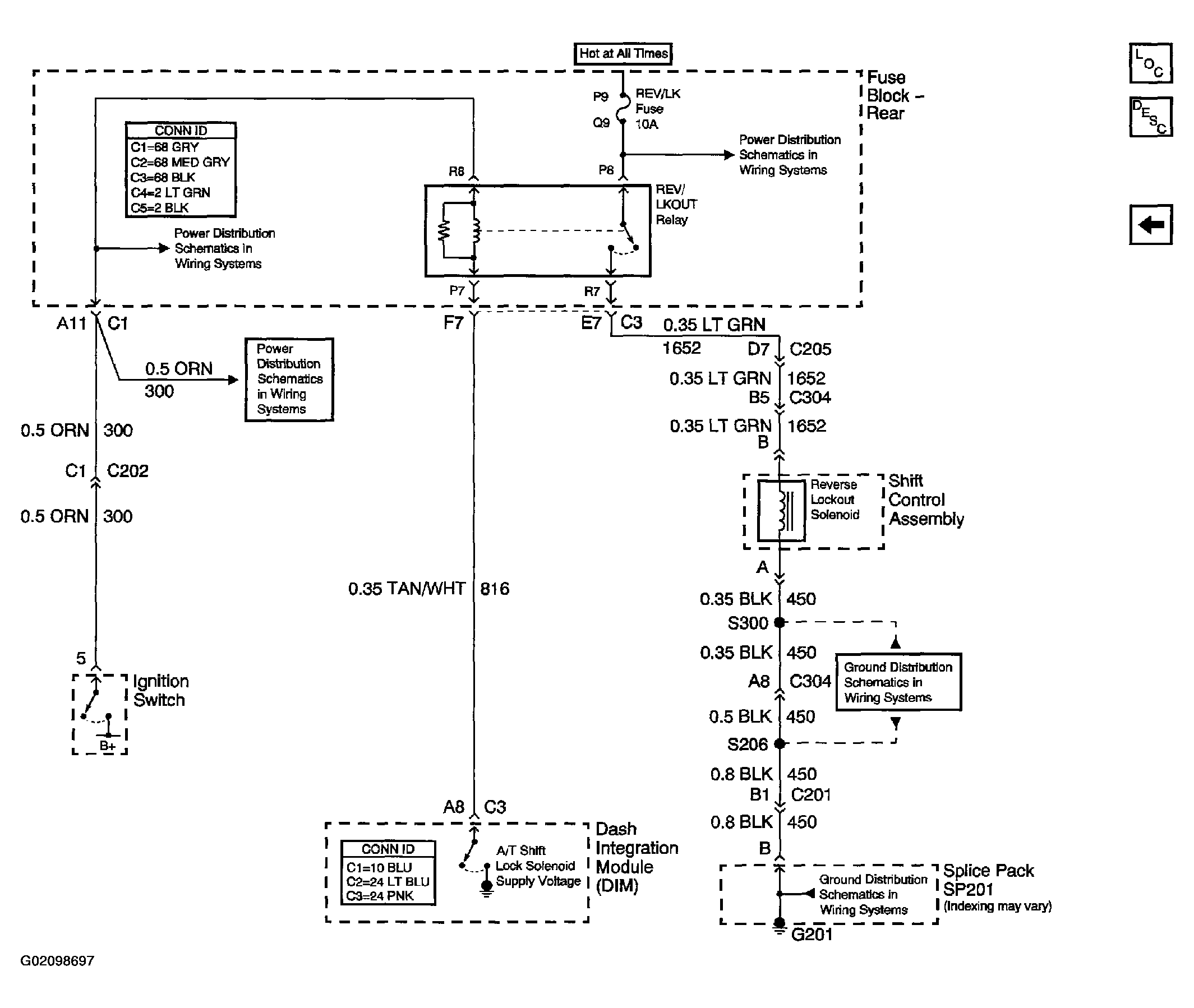

Fig 3: Automatic Transmission Shift Lock Control Schematics (Reverse Lockout Control w/D55)
G02098697Courtesy of GENERAL MOTORS CORP.
